How can I get a price quote for Siemens 6ES7142-4BD00-0AB0?

You can request a fast quote for Siemens 6ES7142-4BD00-0AB0 from Yılsa Engineering. Reference part number CEY-8EF3B0387E65. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7142-4BD00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7142-4BD00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7142-4BD00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

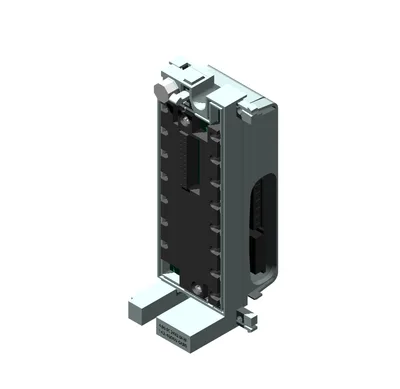

Siemens 6ES7142-4BD00-0AB0

SIMATIC DP, electronic modules for ET 200pro 4 DO 24 V DC, 2.0 A High Feature, Channel diagnostics; short-circuit and wire break; incl. bus module, connection module IO 6ES7194-4..00-0AA0 to be ordered separately

SiemensMFR # 6ES7142-4BD00-0AB0SKU # CEY-8EF3B0387E65

Rated value (DC)24 V

Short-circuit protectionYes; per channel, electronic

from backplane bus 3.3 V DC, max.30 mA

Power loss, typ.2.5 W

Address space per module, max.1 byte

Number of digital outputs4

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7142-4BD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage 2L+

Rated value (DC)24 V

Short-circuit protectionYes; per channel, electronic

Reverse polarity protectionYes; against destruction; load increasing

Input current

from load voltage 2L+ (without load), max.40 mA

from backplane bus 3.3 V DC, max.30 mA

Power loss

Power loss, typ.2.5 W

Address space per module

Address space per module, max.1 byte

Digital outputs

Number of digital outputs4

Current-sourcingYes

output type acc. to IEC 61131, type 2Yes

Short-circuit protectionYes

Response threshold, typ.2.8 A

Limitation of inductive shutdown voltage to2L+ (-47 V)

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.10 W

Load resistance range

lower limit12 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.2L+ (-0,8 V)

Output current

for signal "1" rated value2 A

for signal "0" residual current, max.0.5 mA

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

all mounting positions

— up to 55 °C, max.4 A

Cable length

shielded, max.30 m

unshielded, max.30 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Wire breakYes; channel by channel

Short-circuitYes; channel by channel

Diagnostics indication LED

Group error SF (red)Yes

Status indicator digital output (green)Yes

Channel fault indicator F (red)Yes

Potential separation

between backplane bus and all other circuit componentsYes

Potential separation digital outputs

between the channelsNo

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety-related tripping of standard modulesYes

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Dimensions

Width45 mm

Height130 mm

Depth35 mm; without terminal module

Weights

Weight, approx.140 g

Accessories 6

Genuine accessories that can be used with the Siemens 6ES7142-4BD00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7194-4CA00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4CA10-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4CA50-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4FA00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4EB00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4FB00-0AA0	Zorunlu ek ürün · Connection module
