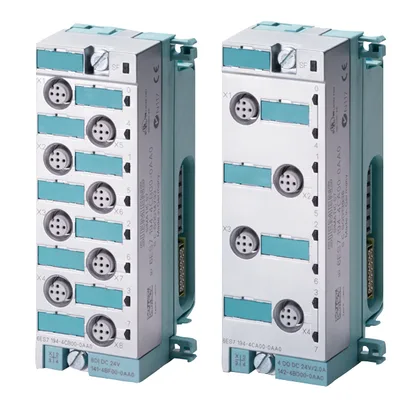

Siemens 6ES7141-4BF00-0AB0

SIMATIC DP, electronic modules for ET 200pro 8 DI 24 V DC High Feature, Channel diagnostics; short-circuit and wire break; incl. bus module, connection module IO 6ES7194-4..00-0AA0 to be ordered separately

SiemensMFR # 6ES7141-4BF00-0AB0SKU # CEY-937FC77F04D1

Rated value (DC)24 V

from supply voltage 1L+, max.40 mA

from backplane bus 3.3 V DC, max.20 mA

Number of outputs8

Short-circuit protectionYes; per channel, electronic

up to 55 °C, max.1 A

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7141-4BF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction; load increasing

Input current

from supply voltage 1L+, max.40 mA

from backplane bus 3.3 V DC, max.20 mA

Encoder supply

Number of outputs8

Short-circuit protectionYes; per channel, electronic

Output current

up to 55 °C, max.1 A

Power loss

Power loss, typ.2.5 W

Address space per module

Address space per module, max.1 byte

Digital inputs

Number of digital inputs8

Sourcing/sinking inputP-reading

Input characteristic curve in accordance with IEC 61131, type 1No

Input characteristic curve in accordance with IEC 61131, type 2Yes

all mounting positions

— up to 55 °C, max.8

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"+11 to +30V

Input current

for signal "1", typ.7 mA

for standard inputs

— parameterizableYes

— at "0" to "1", min.0.5 ms; 0.5 ms/ 3ms/ 15 ms/ 20 ms

— at "0" to "1", max.20 ms

— at "1" to "0", min.0.5 ms; 0.5 ms/ 3ms/ 15 ms/ 20 ms

— at "1" to "0", max.20 ms

Cable length

unshielded, max.30 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Interrupts/diagnostics/status information

Diagnostics functionYes; channel by channel, parameterizable

Alarms

Diagnostic alarmYes

Hardware interruptYes

Diagnoses

Diagnostic information readableYes

Wire breakYes; Monitoring, I < 0.3 mA; per channel

Short-circuitYes; channel by channel

Diagnostics indication LED

Group error SF (red)Yes

Status indicator digital input (green)Yes; Per channel

Potential separation

between backplane bus and all other circuit componentsYes

Potential separation digital inputs

between the channelsNo

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Dimensions

Width45 mm

Height130 mm

Depth35 mm; without terminal module

Weights

Weight, approx.140 g

Accessories 5

Genuine accessories that can be used with the Siemens 6ES7141-4BF00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7194-4CB00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4CB10-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4CA00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4CA10-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4EB00-0AA0	Zorunlu ek ürün · Connection module
