Siemens 6ES7135-7TD00-0AB0

SIMATIC, electronic module for ET200iSP, 4 AO HART, 4 - 20 mA, for connecting HART field devices, supported HART protocol version 6.0, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb

SiemensMFR # 6ES7135-7TD00-0AB0SKU # CEY-8EF3B02FF27A

Product type designation4AQ I HART

HW functional status17

Firmware versionV3.0.4

Rack mountingNo

Front mountingYes

Rail mountingYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7135-7TD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designation4AQ I HART

HW functional status17

Firmware versionV3.0.4

Installation type/mounting

Rack mountingNo

Front mountingYes

Rail mountingYes

Wall mounting/direct mountingNo

Supply voltage

Type of supply voltageDC

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption, typ.295 mA

from load voltage (power bus), max.330 mA

Power loss

Power loss, typ.2.7 W

Hardware configuration

Fieldbus connection via separate transceiverYes

Analog outputs

Number of analog outputs4

Cycle time (all channels) max.3.6 ms

Voltage signal at analog outputNo

Current signal at analog outputYes

Output ranges, current

0 to 20 mAYes

4 mA to 20 mAYes

Connection of actuators

for current output two-wire connectionYes

Load impedance (in rated range of output)

with current outputs, max.750 Ω

Cable length

shielded, max.500 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.14 bit

Settling time

for resistive load4 ms

for capacitive load40 ms

for inductive load40 ms

Errors/accuracies

Linearity error (relative to output range), (+/-)0.015 %

Temperature error (relative to output range), (+/-)0.005 %/K

Crosstalk between the outputs, min.-50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.01 %

Operational error limit in overall temperature range

Current, relative to output range, (+/-)0.15 %

Basic error limit (operational limit at 25 °C)

Current, relative to output range, (+/-)0.1 %

Interfaces

Number of PROFINET interfaces0

Protocols

Supports protocol for PROFINET IONo

PROFIsafeNo

PROFIBUSNo

Further protocols

other bus systemsNo

Interrupts/diagnostics/status information

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Wire breakYes; I load > 1 mA

Short-circuitYes; I load > 1 mA

Diagnostics indication LED

Group error SF (red)Yes

Ex(i) characteristics

Module for Ex(i) protectionYes; for more Co/Lo combinations, see certificate IECEx KEM 05.0012

maximum values for connecting terminals for gas group IIC

Uo (no-load voltage), max.27.6 V

Io (short-circuit current), max.88.2 mA

Po (power output), max.0.61 mW

Co (permissible external capacity), max.83 nF

Lo (permissible external inductivity), max.3 mH

Potential separation

between channels and powerbusYes

Potential separation analog outputs

between the channelsNo

between the channels and backplane busYes

Degree and class of protection

IP degree of protectionIP30

Standards, approvals, certificates

CE markCE 0344

UKCA markDEKRA 21UKEX0091 Importer UK: Siemens plc Manchester M20 2UR

cULusLISTED E334384

FM approvalCLASSIFIED 3025852

Suitable for safety functionsNo

INMETRO certificateUL-BR 12.0070

reference designation according to IEC 81346-2 (2009)K

Use in hazardous areas

ATEX markingII 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb

ATEX certificateKEMA 04 ATEX 1250

IECExIECEx KEM 05.0012

CCC Ex2020322316002946

EAC ExPB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC

FM markingClass I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G

Explosion protection category for gasATEX gas explosion protection, Zone 1

Explosion protection category for dustATEX dust explosion protection, Zone 21 always install in corresponding enclosure

associated equipment (Ex ia)Yes

associated equipment (Ex ib)Yes

Connection method

Design of electrical connectionScrew/spring-type terminal

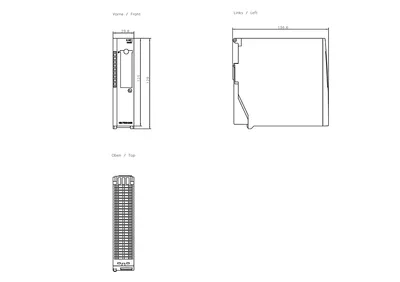

Dimensions

Width30 mm

Height129 mm

Depth136.5 mm

Weights

Weight, approx.265 g
