Siemens 6ES7134-7TD00-0AB0

SIMATIC, electronic module for ET200iSP, 4 AI HART, 2-wire transducer, for connecting HART 2-wire transmitters, supported HART protocol version 6.0, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb

SiemensMFR # 6ES7134-7TD00-0AB0SKU # CEY-55221B13A3B3

Product type designation4AI I 2WIRE HART

HW functional status17

Firmware versionV3.0.4

Isochronous modeNo

Rack mountingNo

Front mountingYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7134-7TD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designation4AI I 2WIRE HART

HW functional status17

Firmware versionV3.0.4

Product function

Isochronous modeNo

Installation type/mounting

Rack mountingNo

Front mountingYes

Rail mountingYes

Wall mounting/direct mountingNo

Supply voltage

Type of supply voltageDC

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption, typ.280 mA

from load voltage (power bus), max.320 mA

Power supply to the transmitters

short-circuit proofYes

Supply current, max.23 mA; per channel

Power loss

Power loss, typ.2.7 W

Hardware configuration

Fieldbus connection via separate transceiverYes

Analog inputs

Number of analog inputs4

permissible input current for current input (destruction limit), max.90 mA

Cycle time (all channels) max.120 ms; 30 ms basic conversion time x4 channels with 60 Hz, 50 Hz interference frequency suppression

Technical unit for temperature measurement adjustableYes

Input ranges

VoltageNo

CurrentYes

ThermocoupleNo

Resistance thermometerNo

ResistanceNo

Input ranges (rated values), currents

4 mA to 20 mAYes

Cable length

shielded, max.500 m

Analog value generation for the inputs

Measurement principleintegrating (Sigma-Delta)

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.13 bit

Integration time, parameterizableNo

Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz

Smoothing of measured values

ParameterizableYes; in 4 stages

Step: NoneYes; 1x cycle time

Step: lowYes; 4x cycle time

Step: MediumYes; 32x cycle time

Step: HighYes; 64x cycle time

Connection of signal encoders

for current measurement as 2-wire transducerYes

— Burden of 2-wire transmitter, max.750 Ω

Errors/accuracies

Linearity error (relative to input range), (+/-)0.015 %

Temperature error (relative to input range), (+/-)0.005 %/K

Crosstalk between the inputs, min.-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.01 %

Operational error limit in overall temperature range

Current, relative to input range, (+/-)0.15 %

Basic error limit (operational limit at 25 °C)

Current, relative to input range, (+/-)0.1 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.70 dB

Interfaces

Number of PROFINET interfaces0

Protocols

PROFINET IONo

PROFIsafeNo

PROFIBUSNo

Further protocols

other bus systemsNo

Alarms

Diagnostic alarmYes; Parameterizable

Limit value alarmYes; Parameterizable

Diagnoses

Diagnostic information readableYes

Wire breakYes; I load < 3.6 mA

short-circuitYes; I load > 25 mA

Diagnostics indication LED

Group error SF (red)Yes

Ex(i) characteristics

Module for Ex(i) protectionYes; for more Co/Lo combinations, see certificate IECEx KEM 05.0006

maximum values for connecting terminals for gas group IIC

Uo (no-load voltage), max.27.6 V

Io (short-circuit current), max.88.2 mA

Po (power output), max.610 mW

Co (permissible external capacity), max.83 nF

Lo (permissible external inductivity), max.3 mH

Potential separation

between channels and powerbusYes

Potential separation analog inputs

between the channelsNo

between the channels and backplane busYes

Degree and class of protection

IP degree of protectionIP30

Standards, approvals, certificates

CE markCE 0344

UKCA markDEKRA 21UKEX0089 Importer UK: Siemens plc Manchester M20 2UR

cULusLISTED E334384

FM approvalCLASSIFIED 3025852

Suitable for safety functionsNo

INMETRO certificateUL-BR 12.0072

reference designation according to IEC 81346-2 (2009)K

Highest safety class achievable in safety mode

acc. to EN 954n.a.

Performance level according to ISO 13849-1none

SIL acc. to IEC 61508No

Use in hazardous areas

ATEX markingII 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb

ATEX certificateKEMA 04 ATEX 1244

IECExIECEx KEM 05.0006

CCC Ex2020322316002941

EAC ExPB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC

FM markingClass I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G

Explosion protection category for gasATEX gas explosion protection, Zone 1

Explosion protection category for dustATEX dust explosion protection, Zone 21 always install in corresponding enclosure

associated equipment (Ex ia)Yes

associated equipment (Ex ib)Yes

Marine approval

Germanischer Lloyd (GL)Yes

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Connection method

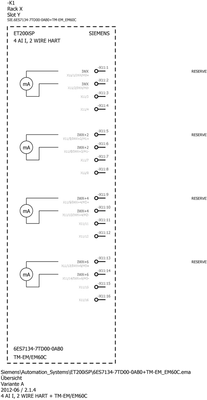

Design of electrical connectionScrew/spring-type terminal

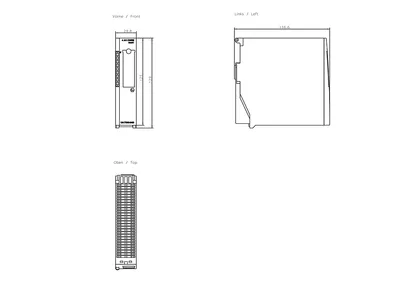

Dimensions
