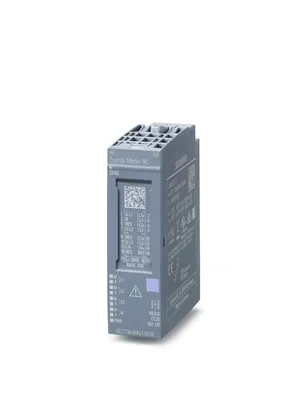

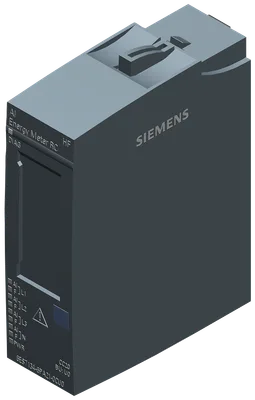

Siemens 6ES7134-6PA21-0CU0

SIMATIC ET 200SP, analog input module, AI Energy Meter RC HF, for Rogowski coils or current/voltage transformer 333 mV, with network analysis functions, suitable for BU type U0, channel diagnostics

SiemensMFR # 6ES7134-6PA21-0CU0SKU # YLSLSERSS1MPDQA

Product type designationAI Energy Meter RC HF

Firmware versionV8.0

FW update possibleYes

usable BaseUnitsBU type U0

Supported power supply systemsTT, TN, IT

Voltage measurementYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, analog input module, AI Energy Meter RC HF, for Rogowski coils or current/voltage transformer 333 mV, with network analysis functions, suitable for BU type U0, channel diagnostics

Siemens 6ES7134-6PA21-0CU0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI Energy Meter RC HF

Firmware versionV8.0

FW update possibleYes

usable BaseUnitsBU type U0

Color code for module-specific color-coded labelCC20

Supported power supply systemsTT, TN, IT

Product function

Voltage measurementYes

— without voltage transformerYes

— with voltage transformerYes

Current measurementYes; Max. 4

— without current transformerNo

— with current transformerNo

— With Rogowski coilYes

— With current-voltage-converterYes; 333 mV interface

Energy measurementYes

Frequency measurementYes

Power measurementYes

Active power measurementYes

Reactive power measurementYes

Power factor measurementYes

Active factor measurementYes

Reactive power compensationYes

Line analysisYes

— Monitoring of instantaneous and half-wave valuesYes

— THD measurement for current and voltageYes

— Harmonics for current and voltageYes

— Voltage dip (DIP)Yes

— Voltage swellYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V16 or higher with HSP

STEP 7 configurable/integrated from versionV5.5 SP3 or higher

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionV2.3

Operating mode

Switching between operating modes in RUNYes; For module version 32 I/20 Q, it is possible to dynamically switch between 25 user data variants, 23 of which are pre-defined and 2 of which can be defined by the specific user

Cyclic measured value accessYes

Acyclic measured value accessYes

Fixed measured value setsYes

Freely definable measured value setsYes; For cyclic and acyclic measured value access

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNYes

Installation type/mounting

Mounting positionany

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)12.5 mA

Current consumption, max.17 mA

Power loss

Power loss, typ.400 mW; 3x 230 V AC

Address space per module

Inputs256 byte

Outputs20 byte

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementtype C

Selection of BaseUnit for connection variants

2-wire connectionBU type U0

Operating hours counter

presentYes

Analog inputs

Cycle time (all channels), typ.50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data)

Cable length

shielded, max.200 m

unshielded, max.200 m

Analog value generation for the inputs

Sampling frequency, max.2 048 kHz

Alarms

Diagnostic alarmYes

Limit value alarmYes

Hardware interruptYes; Monitoring of up to 16 freely selectable process values (exceeding or undershooting of value)

Diagnoses

Line qualityYes

Supply voltageYes

Hardware interrupt lostYes

Parameter assignment errorYes

Module faultYes

Channel not availableYes

Overflow/UnderflowYes

Overload currentYes

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes

Channel status displayYes; green LED

for channel diagnosticsYes; red Fn LED

for module diagnosticsYes; green/red DIAG LED

Measuring functions

Measuring procedure for voltage measurementTRMS

Measuring procedure for current measurementTRMS

Type of measured value acquisitionseamless

Curve shape of voltageSinusoidal or distorted

Buffering of measured variablesYes

Parameter length128 byte

Bandwidth of measured value acquisition3.2 kHz; Harmonics: 63 / 50 Hz, 52 / 60 Hz

Measuring range

— Frequency measurement, min.40 Hz

— Frequency measurement, max.70 Hz

Measuring inputs for voltage

— Measurable line voltage between phase and neutral conductor277 V

— Measurable line voltage between the line conductors480 V

— Measurable line voltage between phase and neutral conductor, min.3 V

— Measurable line voltage between phase and neutral conductor, max.300 V

— Measurable line voltage between the line conductors, min.6 V

— Measurable line voltage between the line conductors, max.519 V

— Internal resistance line conductor and neutral conductor1.5 MΩ

— Power consumption per phase60 mW; 300 V AC

— Impulse voltage resistance 1,2/50µs2.5 kV

— Overvoltage categoryCAT II according to IEC 61010 Part 1

Measuring inputs for current (Rog. or I/U converter)

— Measurable current at AC, max.424 mV

— Continuous voltage, maximum permissible2 V

— Rated value, short-time withstand voltage restricted to 1 s30 V

— Input resistance120 kΩ

— Zero point suppressionYes; 0 ... 20%, referred to the nominal current

Accuracy class according to IEC 61557-12

— Measured variable voltage0,2

— Measured variable current0,2

— Measured variable apparent power0.5

— Measured variable active power0.5

— Measured variable reactive power1

— Measured variable power factor0.5

— Measured variable active energy0.5

— Measured variable reactive energy1

— Measured variable neutral current0,2

— Measured variable phase angle±0.5 °; not covered by IEC 61557-12

— Measured variable frequency0.05; only valid for the permissible voltage measuring range

— Measured variable harmonic1

— Measured variable THDU1

— Measured variable THDI1

Accuracy class line analysis acc. to IEC 61000-4-30

— Measured variable voltageClass S

— Measured variable currentClass S

— Measured variable frequencyClass S

— Measured variable voltage interruptionClass S

— Measured variable voltage dip and swellClass S

— Measured variable harmonic voltageClass S

— Measured variable harmonic currentClass S

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+Yes; Including FE

Isolation

Isolation tested withBetween channels and backplane bus, 24 V supply: Routine test, 1 920 V AC, 2 s; between backplane bus and 24 V supply: Type test, 707 V DC

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]9.32 kg

— global warming potential, (during production) [CO2 eq]4.97 kg

— global warming potential, (during operation) [CO2 eq]4.79 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.449 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.3 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width20 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.45 g

Data for selecting a voltage transformer

Secondary side, max.300 V

Accessories 6

Genuine accessories that can be used with the Siemens 6ES7134-6PA21-0CU0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6KC00-3AA0	Yedek parça · spare part
6ES7193-6KD00-3AA0	Yedek parça · spare part
6ES7193-6BP00-0BU0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DU0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2BU0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2DU0	Zorunlu ek ürün · BaseUnit
