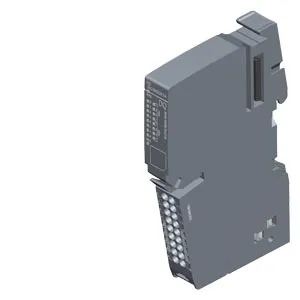

Siemens 6ES7132-8BH00-0AN0

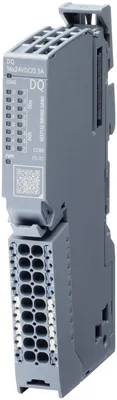

SIMATIC ET 200BL, digital output module, DQ 16x24 V DC/0.5 A, output characteristic according to IEC 61131 source output (PNP,sourcing output) packing unit: 1 unit, color code CC00

SiemensMFR # 6ES7132-8BH00-0AN0SKU # YLSGTCBIYDWARZ

Product type designationDQ 16x24VDC/0.5A

HW functional statusfrom FS01

FW update possibleNo

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

PROFINET from GSD version/GSD revisionGSDML V2.45

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200BL, digital output module, DQ 16x24 V DC/0.5 A, output characteristic according to IEC 61131 source output (PNP,sourcing output) packing unit: 1 unit, color code CC00

Siemens 6ES7132-8BH00-0AN0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 16x24VDC/0.5A

HW functional statusfrom FS01

FW update possibleNo

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V18 or higher; MicroWin V3.0 or higher; Configuration in ES via GSDML;

PROFINET from GSD version/GSD revisionGSDML V2.45

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

Cam control (switching at comparison values)No

OversamplingNo

MSONo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

external protection for power supply linesYes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic

Input current

Current consumption (rated value)55 mA

Current consumption, max.8.1 A; with 8 A output to load

Output voltage

Rated value (DC)24 V

Current carrying capacity

For P1 and P2 bus, max.10 A

Power loss

Power loss, typ.1 W; rated voltage, 50 % load, 50 % active channels

Address space per module

Address space per module, max.2 byte

Outputs2 byte

Hardware configuration

Automatic encodingNo

Mechanical coding elementNo

Formation of potential groups

support of potential groupsNo

Digital outputs

Type of digital outputSource output (PNP, current-sourcing)

Number of digital outputs16

Current-sinkingNo

Current-sourcingYes

Digital outputs, parameterizableYes

output type acc. to IEC 61131, type 0.5Yes

Short-circuit protectionYes; per channel, electronic

Response threshold, typ.1.45 A; 0.7 to 1.7 A

Limitation of inductive shutdown voltage totyp. (L+) -52 V

Controlling a digital inputYes

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit100 kΩ

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, max.0.5 A

for signal "0" residual current, max.5 µA

Output delay with resistive load

"0" to "1", max.100 µs

"1" to "0", max.300 µs

Parallel switching of two outputs

for upratingNo

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.2 Hz

on lamp load, max.10 Hz

Total current of the outputs

Current per channel, max.0.5 A

Current per module, max.8 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakNo

Short-circuitNo

Group errorNo

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; green/red DIAG LED

Potential separation

between backplane bus and supply voltageYes

Potential separation digital outputs

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with500 V AC/707 V DC, type test

Standards, approvals, certificates

Suitable for safety functionsNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]28.7 kg

— global warming potential, (during production) [CO2 eq]4.87 kg

— global warming potential, (during operation) [CO2 eq]24.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.623 kg

Use in hazardous areas

EAC ExNo

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200BL system manual

Terminals

Conductor cross-section, min.0.14 mm²; follow detailed information in System manual of ET 200BL

Conductor cross-section, max.2.5 mm²; follow detailed information in System manual of ET 200BL

Number of process terminals to I/O module16

Number of terminals with connection to P1 and P2 bus0

Dimensions

Width15 mm

Height117 mm

Depth74 mm

Weights

Weight, approx.80 g
