How can I get a price quote for Siemens 6ES7132-6BH01-0BA0?

You can request a fast quote for Siemens 6ES7132-6BH01-0BA0 from Yılsa Engineering. Reference part number CEY-937FC78055C1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7132-6BH01-0BA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7132-6BH01-0BA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7132-6BH01-0BA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

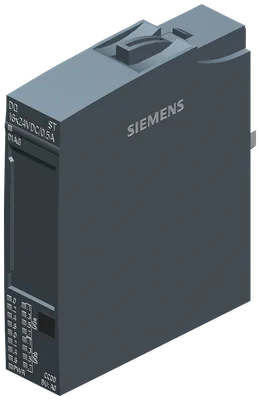

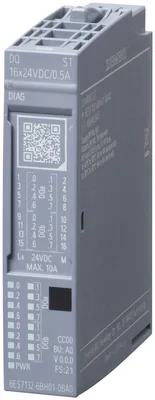

Siemens 6ES7132-6BH01-0BA0

SIMATIC ET 200SP, Digital output module, DQ 16x 24V DC/0,5A Standard, Source output (PNP,P-switching) Packing unit: 1 piece, fits to BU-type A0, Colour Code CC00, substitute value output, module diagnostics for: short-circuit to L+ and ground, wire break, supply voltage

SiemensMFR # 6ES7132-6BH01-0BA0SKU # CEY-937FC78055C1

Product type designationDQ 16x24VDC/0.5 ST

HW functional statusfrom FS21

Firmware versionV0.0

FW update possibleNo

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7132-6BH01-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 16x24VDC/0.5 ST

HW functional statusfrom FS21

Firmware versionV0.0

FW update possibleNo

usable BaseUnitsBU type A0

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 TIA V14 with HSP0222 / integrated as of TIA V15

STEP 7 configurable/integrated from versionV5.5 SP3 with HSP0230 V7.0 / integrated as of V5.6 SP1

PCS 7 configurable/integrated from versionV8.1 SP1

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

OversamplingNo

MSONo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.30 mA; without load

Output voltage

Rated value (DC)24 V

Power loss

Power loss, typ.1 W

Address space per module

Address space per module, max.2 byte; + 2 bytes for QI information

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Selection of BaseUnit for connection variants

1-wire connectionBU type A0

2-wire connectionBU type A0 with AUX terminals or potential distributor module

3-wire connectionBU type A0 with AUX terminals or potential distributor module

Digital outputs

Type of digital outputSource output (PNP, current-sourcing)

Number of digital outputs16

Current-sinkingNo

Current-sourcingYes

Digital outputs, parameterizableYes

output type acc. to IEC 61131, type 0.5Yes

Short-circuit protectionYes; Electronic

Response threshold, typ.1 A; 0.7 to 1.3 A

Open-circuit detectionYes

Limitation of inductive shutdown voltage toTyp. L+ (-50 V)

Controlling a digital inputYes

Switching capacity of the outputs

with resistive load, max.0.5 A

with inductive load, max.0.5 A

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit12 kΩ

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, max.0.5 A

for signal "0" residual current, max.0.1 mA

Output delay with resistive load

"0" to "1", typ.50 µs

"1" to "0", typ.100 µs

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads"

on lamp load, max.10 Hz

Total current of the outputs

Current per channel, max.0.5 A

Current per module, max.8 A; see Equipment Manual "Derating curve"

horizontal installation

— up to 40 °C, max.8 A

— up to 50 °C, max.6 A

— up to 60 °C, max.4 A

vertical installation

— up to 30 °C, max.8 A

— up to 40 °C, max.6 A

— up to 50 °C, max.4 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; module-wise

Short-circuit to groundYes; module-wise

Short-circuit to L+Yes; module-wise

Group errorYes

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+No

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsNo

Suitable for safety-related tripping of standard modulesNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]29.3 kg

— global warming potential, (during production) [CO2 eq]3.98 kg

— global warming potential, (during operation) [CO2 eq]25.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.245 kg

Ambient temperature during operation

horizontal installation, min.-30 °C; < 0 °C as of FS03

horizontal installation, max.60 °C

vertical installation, min.-30 °C; < 0 °C as of FS03

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.30 g
