Siemens 6ES7431-0HH00-0AB0

SIMATIC S7-400, analog input SM 431, non-isolated 16 AI, resolution 13 bit, +/-10 V, +/-20 mA, 4 - 20 mA 20 ms conversion time

SiemensMFR # 6ES7431-0HH00-0AB0SKU # CEY-937FC780AD18

Reverse polarity protectionYes

from backplane bus 5 V DC, max.100 mA

Power loss, typ.2 W

Number of analog inputs16

For voltage/current measurement16

VoltageYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-400, analog input SM 431, non-isolated 16 AI, resolution 13 bit, +/-10 V, +/-20 mA, 4 - 20 mA 20 ms conversion time

Siemens 6ES7431-0HH00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V; Only required for supplying 2-wire transmitters

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.400 mA; for 16 connected, fully controlled 2-wire transmitters

from backplane bus 5 V DC, max.100 mA

Power loss

Power loss, typ.2 W

Analog inputs

Number of analog inputs16

For voltage/current measurement16

permissible input voltage for voltage input (destruction limit), max.20 V; 20 V DC permanent, 75 V DC for max. 1 s (duty factor 1:20)

permissible input current for current input (destruction limit), max.40 mA

Constant measurement current for resistance-type transmitter, typ.1.67 mA

Input ranges

VoltageYes

CurrentYes

ThermocoupleNo

Resistance thermometerNo

ResistanceNo

Input ranges (rated values), voltages

1 V to 5 VYes

— Input resistance (1 V to 5 V)100 kΩ

-1 V to +1 VYes

— Input resistance (-1 V to +1 V)10 MΩ

-10 V to +10 VYes

— Input resistance (-10 V to +10 V)100 kΩ

Input ranges (rated values), currents

-20 mA to +20 mAYes

— Input resistance (-20 mA to +20 mA)50 Ω

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)50 Ω

Cable length

shielded, max.200 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.13 bit

Integration time, parameterizableYes

Basic conversion time (ms)55 / 65 ms

Integration time (ms)50 / 60 ms

Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz

Basic execution time of the module (all channels released)1 040 ms; 880 / 1 040 ms

Connection of signal encoders

for voltage measurementYes; possible

for current measurement as 4-wire transducerYes

Errors/accuracies

Temperature error (relative to input range), (+/-)0.01 %/K

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.65 %; 1.0 % at 1 to 5 V; 0.65 % at ±1 V, ±10 V

Current, relative to input range, (+/-)0.65 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.25 %; 0.5% at 1 to 5 V; 0.25% at ±1 V, ±10 V

Current, relative to input range, (+/-)0.25 %; at ±20 mA, 4 to 20 mA

Interrupts/diagnostics/status information

Diagnostics functionNo

Potential separation analog inputs

Potential separation analog inputsNo

between the channelsNo

between the channels and backplane busNo

Between the channels and load voltage L+No

Isolation

Isolation tested with500 V AC/707 V DC, type test

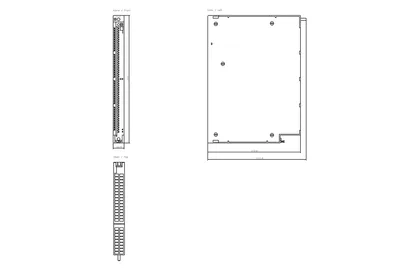

Dimensions

Width25 mm

Height290 mm

Depth210 mm

Weights

Weight, approx.500 g
