How can I get a price quote for Siemens 6ES7231-5PD32-0XB0?

You can request a fast quote for Siemens 6ES7231-5PD32-0XB0 from Yılsa Engineering. Reference part number CEY-937FC780AEAE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7231-5PD32-0XB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7231-5PD32-0XB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7231-5PD32-0XB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

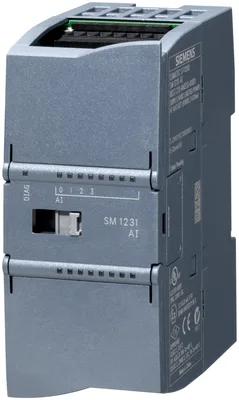

Photo may not represent actual item. Refer to name and product specs for all details.

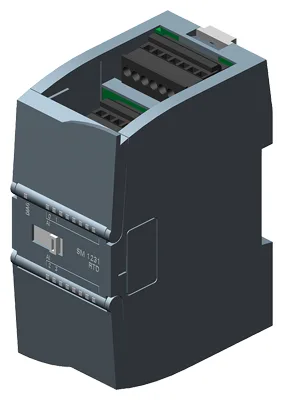

Siemens 6ES7231-5PD32-0XB0

SIMATIC S7-1200, Analog input, SM 1231 RTD, 4xAI RTD module

SiemensMFR # 6ES7231-5PD32-0XB0SKU # CEY-937FC780AEAE

Product type designationSM 1231, AI 4x16 bit RTD

Rated value (DC)24 V

Current consumption, typ.40 mA

from backplane bus 5 V DC, typ.80 mA

Power loss, typ.1.5 W

Number of analog inputs4; Resistance thermometer

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7231-5PD32-0XB0 (SIMATIC S7-1200, Analog input, SM 1231 RTD, 4xAI RTD module) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 6ES7231-5PD32-0XB0 — price, stock availability and technical specifications.

Siemens 6ES7231-5PD32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1231, AI 4x16 bit RTD

Supply voltage

Rated value (DC)24 V

Input current

Current consumption, typ.40 mA

from backplane bus 5 V DC, typ.80 mA

Power loss

Power loss, typ.1.5 W

Analog inputs

Number of analog inputs4; Resistance thermometer

permissible input voltage for voltage input (destruction limit), max.±35 V

Technical unit for temperature measurement adjustableDegrees Celsius/degrees Fahrenheit

Input ranges

VoltageNo

CurrentNo

ThermocoupleNo

Resistance thermometerYes; Resistance-type transmitter: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000

ResistanceYes; 150 Ω, 300 Ω, 600 Ω

Input ranges (rated values), resistance thermometer

Cu 10Yes

— Input resistance (Cu 10)10 Ω

Ni 100Yes

— Input resistance (Ni 100)100 Ω

Ni 1000Yes

— Input resistance (Ni 1000)1 000 Ω

LG-Ni 1000Yes

— Input resistance (LG-Ni 1000)1 000 Ω

Ni 120Yes

— Input resistance (Ni 120)120 Ω

Ni 200Yes

— Input resistance (Ni 200)200 Ω

Ni 500Yes

— Input resistance (Ni 500)500 Ω

Pt 100Yes

— Input resistance (Pt 100)100 Ω

Pt 1000Yes

— Input resistance (Pt 1000)1 000 Ω

Pt 200Yes

— Input resistance (Pt 200)200 Ω

Pt 500Yes

— Input resistance (Pt 500)500 Ω

Input ranges (rated values), resistors

0 to 150 ohmsYes

0 to 300 ohmsYes

0 to 600 ohmsYes

Temperature compensation

— ParameterizableNo

Analog value generation for the inputs

Measurement principleintegrating

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.15 bit; + sign

Integration time, parameterizableNo

Interference voltage suppression for interference frequency f1 in Hz85 dB at 50 / 60 / 400 Hz

Errors/accuracies

Temperature error (relative to input range), (+/-)25 °C ±0.1%, to 55 °C ±0.2% total measurement range

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.05 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Common mode interference, min.120 dB

Interrupts/diagnostics/status information

AlarmsYes

Diagnostics functionYes; Can be read out

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes

Diagnostics indication LED

for status of the inputsYes

for maintenanceYes

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43.1 kg

— global warming potential, (during production) [CO2 eq]7.62 kg

— global warming potential, (during operation) [CO2 eq]36 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.544 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Operation, min.795 hPa

Operation, max.1 080 hPa

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Pollutant concentrations

SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

Connection method

required front connectorYes

Mechanics/material

plasticYes

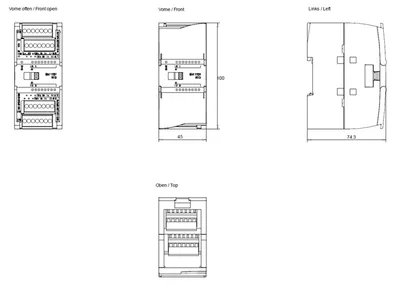

Dimensions

Width45 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.220 g
