How can I get a price quote for Siemens 6EP1935-6MD31?

You can request a fast quote for Siemens 6EP1935-6MD31 from Yılsa Engineering. Reference part number CEY-8EF3B031713C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP1935-6MD31 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP1935-6MD31 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP1935-6MD31?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

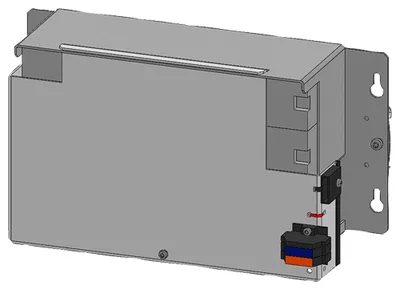

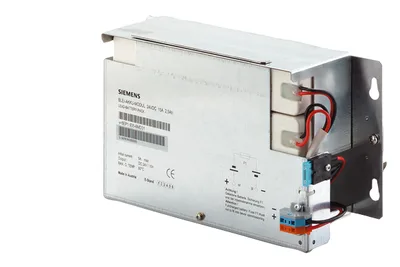

Siemens 6EP1935-6MD31

SITOP pure lead-acid battery module 24 V/2.5 Ah with maintenance-free sealed lead-acid batteries for SITOP DC UPS module 6 A and 15 A

SiemensMFR # 6EP1935-6MD31SKU # CEY-8EF3B031713C

product brand nameSITOP

product type designationBattery module

product designationBattery module 2.5 Ah

type of batterymaintenance-free pure lead batteries

product versionExtension module/battery module

at -10 °C recommended29 V

Have questions?Chat on WhatsApp

About This Product

SITOP pure lead-acid battery module 24 V/2.5 Ah with maintenance-free sealed lead-acid batteries for SITOP DC UPS module 6 A and 15 A

Siemens 6EP1935-6MD31

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationBattery module

product designationBattery module 2.5 Ah

type of batterymaintenance-free pure lead batteries

product versionExtension module/battery module

electrical data

at -10 °C recommended29 V

at 0 °C recommended28.6 V

at 10 °C recommended28.3 V

at 20 °C recommended27.9 V

at 30 °C recommended27.5 V

at 40 °C recommended27.2 V

at 50 °C recommended26.8 V

at 60 °C recommended26.4 V

output

battery capacity2.5 A·h

output current in buffering mode maximum15 A

peak current15 A

charging current maximum5 A

output voltage at DC rated value24 V

interfaces

communication functionNo

protection and monitoring

design of short-circuit protectionBattery fuse 15 A/32 V (solid-state circuitry blade-type fuse + support)

design of the overload protectionValve control

safety

operating resource protection classClass III

protection class IPIP00

standards, specifications, approvals

CE markingYes

UL approvalYes; cURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627

EAC approvalYes

standards, specifications, approvals hazardous environments

ATEXNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

Det Norske Veritas (DNV)Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total13.97 kg

during manufacturing9.373 kg

during operation2.917 kg

after end of life0.494 kg

ambient conditions

ambient conditionFor storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away.

during operation-40 ... +60 °C

during transport-40 ... +60 °C

during storage-40 ... +60 °C

relative temporary capacity loss at 20 °C in a month typical3 %

service life

typicalcapacity falls to 80 % of original capacity (according to EUROBAT)

at 20 °C typical10 a

at 30 °C typical7 a

at 40 °C typical3 a

at 50 °C typical1.5 a

at 60 °C typical1 a

noteAlong with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C.

connection method

type of electrical connectionspring-loaded terminals

for UPS module1 screw terminal each for 0.08 ... 2.5 mm² for + BAT and - BAT

mechanical data

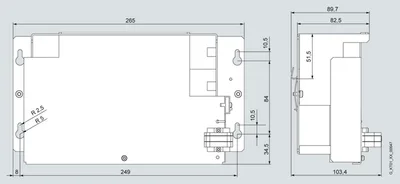

width × height × depth of the enclosure265 × 151 × 91 mm

installation width × mounting height285 mm × 171 mm

fastening methodsnaps onto DIN rail EN 60715 35x15 or keyhole mounting for hooking in to M4 screws

DIN-rail mountingYes

S7 rail mountingNo

wall mountingYes

net weight3.8 kg

number of cells12
