How can I get a price quote for Siemens 6EP1332-1SH71?

You can request a fast quote for Siemens 6EP1332-1SH71 from Yılsa Engineering. Reference part number CEY-937FC77DACC7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP1332-1SH71 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP1332-1SH71 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP1332-1SH71?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

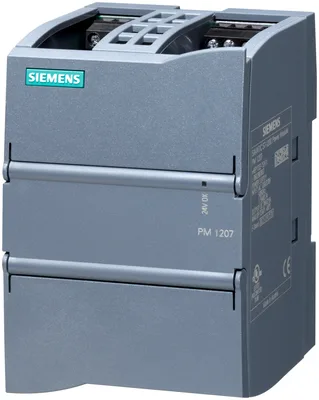

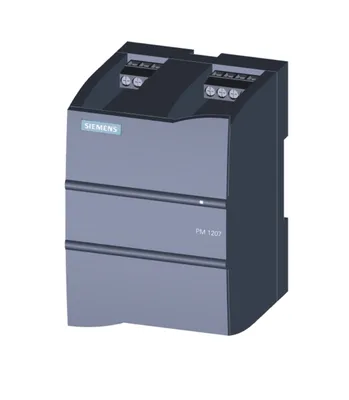

Siemens 6EP1332-1SH71

SIMATIC S7-1200 Power Module PM1207 Stabilized power supply input: 120/230 V AC, output: DC 24 V/2,5 A

SiemensMFR # 6EP1332-1SH71SKU # CEY-937FC77DACC7

product brand nameSIMATIC

product type designationPM 1207

product designationS7-1200 Power Module

type of current supply24 V/2.5 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200 Power Module PM1207 Stabilized power supply input: 120/230 V AC, output: DC 24 V/2,5 A

Siemens 6EP1332-1SH71

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSIMATIC

product type designationPM 1207

product designationS7-1200 Power Module

type of current supply24 V/2.5 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACAutomatic range selection

supply voltage120 V/230 V

input voltage 1 at AC85 ... 132 V

input voltage 2 at AC176 ... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputNo

overvoltage overload capability2.3 × Vin rated, 1.3 ms

buffering time for rated value of the output current in the event of power failure minimum20 ms

operating condition of the mains bufferingat Vin = 93/187 V

at rated input voltage 120 V1.2 A

at rated input voltage 230 V0.67 A

current limitation of inrush current at 25 °C maximum13 A

maximum3 ms

I2t value maximum0.5 A²·s

fuse protection typeT 3,15 A/250 V (not accessible)

fuse protection type in the feederRecommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableNo; -

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.2 %

maximum150 mV

maximum240 mV

display version for normal operationGreen LED for 24 V OK

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum6 s; 2 s at 230 V, 6 s at 120 V

typical10 ms

rated value2.5 A

rated range0 ... 2.5 A

supplied active power typical60 W

on short-circuiting during the start-up typical6 A

at short-circuit during operation typical6 A

on short-circuiting during the start-up100 ms

at short-circuit during operation100 ms

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent83 %

at rated output voltage for rated value of the output current typical12 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.3 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical3 %

load step 50 to 100% typical5 ms

load step 100 to 50% typical5 ms

maximum5 ms

protection and monitoring

design of the overvoltage protection< 33 V

property of the output short-circuit proofYes

design of short-circuit protectionConstant current characteristic

typical2.65 A

typical2.7 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationnot applicable

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950-1, CSA C22.2 No. 60950-1) File E151273

UKCA markingYes

EAC approvalYes

NEC Class 2Yes; according to UL1310, File E151273

CB-certificateYes

MTBF at 40 °C1 492 537 h

standards, specifications, approvals hazardous environments

IECExYes; IECEx Ex nA nC IIC T4 Gc

ATEXYes; ATEX (EX) II 3G Ex ec nC IIC T4 Gc

ULhazloc approvalYes

UKEXYes

CCC for hazardous zone according to GB standardYes

FM registrationYes; Class I, Div. 2, Group ABCD, T4

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)Yes

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (NK)Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total334.2 kg

during manufacturing5.7 kg

during operation328.2 kg

after end of life0.21 kg

ambient conditions

during operation0 ... 60 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

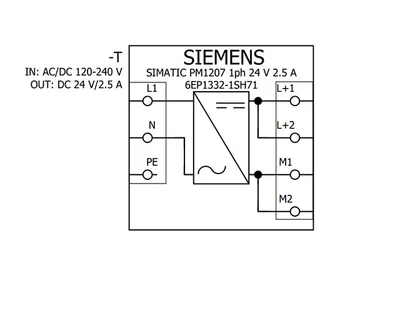

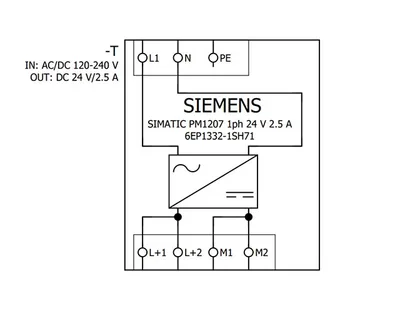

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm²

at outputL+, M: 2 screw terminals each for 0.5 ... 2.5 mm²

for auxiliary contacts-

mechanical data

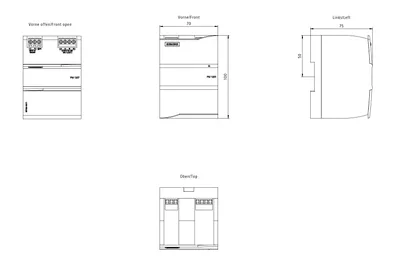

width × height × depth of the enclosure70 × 100 × 75 mm

installation width × mounting height70 mm × 140 mm

top20 mm

bottom20 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15, wall mounting

DIN-rail mountingYes

S7 rail mountingNo

wall mountingYes

housing can be lined upYes

net weight0.3 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing5.7 kg

global warming potential [CO2 eq] / during operation328.2 kg

global warming potential [CO2 eq] / after end of life0.21 kg

global warming potential [CO2 eq] / total334.2 kg
