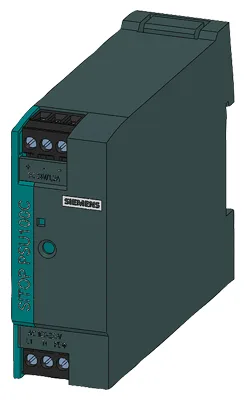

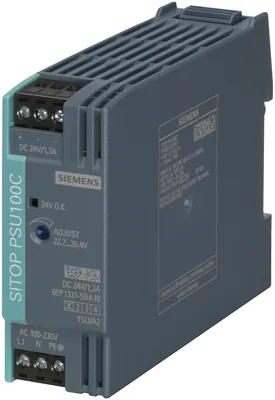

Siemens 6EP1331-5BA10

SITOP PSU100C 24 V/1.3 A stabilized power supply input: 120-230 V AC (110-300 V DC) output: 24 V DC/1.3 A

SiemensMFR # 6EP1331-5BA10SKU # CEY-937FC77FCF1E

product brand nameSITOP

product type designationPSU100C

product designationPower supply SITOP PSU100C

type of current supply24 V/1.3 A

type of the power supply network1-phase AC or DC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU100C 24 V/1.3 A stabilized power supply input: 120-230 V AC (110-300 V DC) output: 24 V DC/1.3 A

Siemens 6EP1331-5BA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU100C

product designationPower supply SITOP PSU100C

type of current supply24 V/1.3 A

input

type of the power supply network1-phase AC or DC

phase number1

voltage curve at inputAC/DC

minimum rated value100 V

maximum rated value230 V

initial value85 V

full-scale value264 V

input voltage at DC110 ... 300 V

at 50 Hz230 V

at 60 Hz100 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

overvoltage overload capability2.3 × Vin rated, 1.3 ms

buffering time for rated value of the output current in the event of power failure minimum20 ms

operating condition of the mains bufferingat Vin = 230 V

at rated input voltage 100 V0.63 A

at rated input voltage 230 V0.31 A

current limitation of inrush current at 25 °C maximum34 A

I2t value maximum1.2 A²·s

fuse protection typeinternal

fuse protection type in the feederRecommended miniature circuit breaker: from 16 A characteristic B or from 10 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage22.2 ... 26.4 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.2 %

maximum200 mV

typical25 mV

maximum300 mV

typical20 mV

display version for normal operationGreen LED for output voltage OK

behavior of the output voltage when switching onOvershoot of Vout approx. 5 %

response delay maximum0.6 s

typical90 ms

rated value1.3 A

rated range0 ... 1.3 A; +60 ... +70 °C: Derating 0.8%/K; at +70 °C Iout rated 1.2 A

supplied active power typical30 W

at short-circuit during operation typical3.1 A

bridging of equipmentYes; Start-up with single nominal load only

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent86 %

at rated output voltage for rated value of the output current typical4.5 W

during no-load operation maximum0.75 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.1 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %

load step 10 to 90% typical5 ms

load step 90 to 10% typical5 ms

protection and monitoring

design of the overvoltage protection< 60 V

property of the output short-circuit proofYes

design of short-circuit protectionElectronic shutdown, automatic restart

typical1.4 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

typical0.4 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationnot applicable

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310)

EAC approvalYes

NEC Class 2Yes; according to UL1310, File E151273

CB-certificateYes

MTBF at 40 °C3 838 624 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total126.5 kg

during manufacturing3.2 kg

during operation123.1 kg

after end of life0.12 kg

ambient conditions

during operation-20 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: Removable screw terminal, each for 1 x 0.5 ... 2.5 mm²

at output+: 1 screw terminal for 0.5 ... 2.5 mm²; -: 2 screw terminals for 0.5 ... 2.5 mm²

for auxiliary contacts-

mechanical data

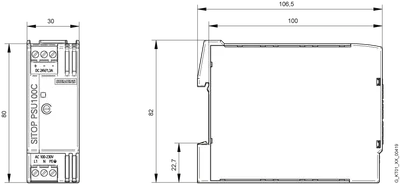

width × height × depth of the enclosure30 × 80 × 100 mm

installation width × mounting height30 mm × 180 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.17 kg

accessories

electrical accessoriesRemovable spring-type terminal 6EP1971-5BA00

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing3.2 kg

global warming potential [CO2 eq] / during operation123.1 kg

global warming potential [CO2 eq] / after end of life0.12 kg

global warming potential [CO2 eq] / total126.5 kg
