How can I get a price quote for Siemens 6ED1055-4MH08-0BA1?

You can request a fast quote for Siemens 6ED1055-4MH08-0BA1 from Yılsa Engineering. Reference part number CEY-937FC780B5A6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ED1055-4MH08-0BA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ED1055-4MH08-0BA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ED1055-4MH08-0BA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

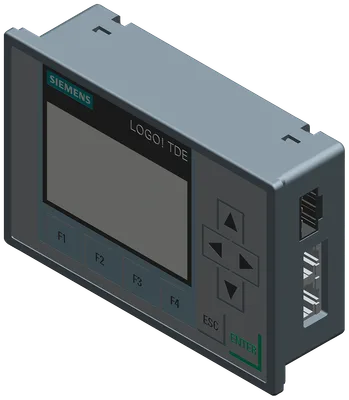

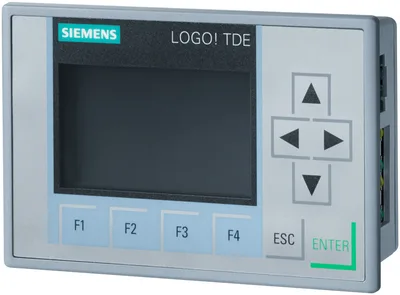

Siemens 6ED1055-4MH08-0BA1

LOGO! TDE text display, 6-line, 3 background colors, 2 Ethernet ports, for LOGO! 8

SiemensMFR # 6ED1055-4MH08-0BA1SKU # CEY-937FC780B5A6

Product type designationText display

Suitability for useCan be used with LOGO! 8 and higher

Design of displayFSTN

Number of lines6

Number of characters per line20

Type of backlightingLED

Have questions?Chat on WhatsApp

About This Product

LOGO! TDE text display, 6-line, 3 background colors, 2 Ethernet ports, for LOGO! 8

Siemens 6ED1055-4MH08-0BA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationText display

Suitability for useCan be used with LOGO! 8 and higher

Display

Design of displayFSTN

Line display

Number of lines6

Number of characters per line20

Backlighting

Type of backlightingLED

Keyboard

System keysYes

— Number of configurable system keys0

alphanumeric keyboardNo

Installation type/mounting

Wall mounting/direct mountingNo

Supply voltage

Type of supply voltageAC/DC

Rated value (DC)12 V; 12/24 V DC, 24 V AC

Power loss

Power loss, typ.1.8 W; At 24 V DC

Interrupts/diagnostics/status information

Diagnostics functionNo

Degree and class of protection

IP (at the front)IP65

Standards, approvals, certificates

CE markYes

UL approvalYes

FM approvalYes

KC approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43 kg

— global warming potential, (during production) [CO2 eq]8.5 kg

— global warming potential, (during operation) [CO2 eq]34.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.065 kg

Marine approval

American Bureau of Shipping (ABS)Yes

Ambient temperature during operation

min.-20 °C; No condensation

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Configuration software

Configuration toolLOGO! Soft Comfort V8

Accessories

belongs to productLOGO!

Mechanics/material

Design of housingplastic

Dimensions

Width128.2 mm

Height86 mm

Depth38.7 mm

mounting depth38.7 mm

Weights

Weight, approx.220 g
