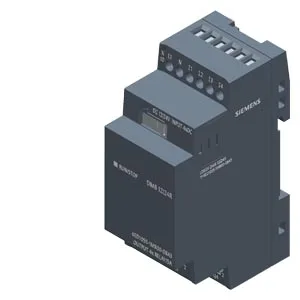

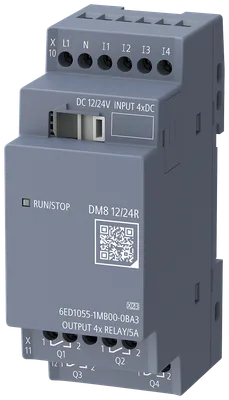

Siemens 6ED1055-1MB00-0BA3
LOGO! DM8 12/24R expansion module, power supply / I/O: 12, 24 V/12 V/24 V/relay, 2 MW, 4 DI/4 DO for LOGO! 9
Mountingon 35 mm DIN rail, 2 spacing units wide
12 V DCYes
24 V DCYes
permissible range, lower limit (DC)10.8 V
permissible range, upper limit (DC)28.8 V
Number of digital inputs4
About This Product
LOGO! DM8 12/24R expansion module, power supply / I/O: 12, 24 V/12 V/24 V/relay, 2 MW, 4 DI/4 DO for LOGO! 9
Siemens 6ED1055-1MB00-0BA3
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Installation type/mounting
Mountingon 35 mm DIN rail, 2 spacing units wide
Supply voltage
12 V DCYes
24 V DCYes
permissible range, lower limit (DC)10.8 V
permissible range, upper limit (DC)28.8 V
Digital inputs
Number of digital inputs4
Input voltage
Type of input voltageDC
for signal "0"< 5 V DC
for signal "1"> 8.5 V
Input current
for signal "0", max. (permissible quiescent current)0.88 mA
for signal "1", typ.1.5 mA
for standard inputs
— at "0" to "1", max.1.5 ms
— at "1" to "0", max.1.5 ms
Digital outputs
Number of digital outputs4; Relays
Short-circuit protectionNo
Controlling a digital inputYes
Switching capacity of the outputs
on lamp load, max.1 000 W
Output current
for signal "1" rated value5 A
for signal "1" minimum load current100 mA
Parallel switching of two outputs
for upratingNo
Switching frequency
with resistive load, max.2 Hz
with inductive load, max.0.5 Hz
mechanical, max.10 Hz
Switching capacity of contacts
— with inductive load, max.3 A
— with resistive load, max.5 A
Emission of radio interference acc. to EN 55 011
Limit class B, for use in residential areasYes
Degree and class of protection
IP degree of protectionIP20
Standards, approvals, certificates
CE markYes
CSA approvalYes
UL approvalYes
FM approvalYes
developed in accordance with IEC 61131Yes
Marine approvalYes
Ecological footprint
environmental product declarationYes
Global warming potential
— global warming potential, (total) [CO2 eq]19.1 kg
— global warming potential, (during production) [CO2 eq]2.9 kg
— global warming potential, (during operation) [CO2 eq]16.45 kg
— global warming potential, (after end of life cycle) [CO2 eq]-0.24 kg
Ambient temperature during operation
min.-20 °C; No condensation
max.55 °C
Ambient temperature during storage/transportation
min.-40 °C
max.70 °C
Altitude during operation relating to sea level
Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Dimensions
Width35.5 mm; 2 modular widths (MW)
Height90 mm
Depth58 mm
