How can I get a price quote for Siemens 6ED1055-1HB00-0BA2?

You can request a fast quote for Siemens 6ED1055-1HB00-0BA2 from Yılsa Engineering. Reference part number CEY-937FC77EC98A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ED1055-1HB00-0BA2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ED1055-1HB00-0BA2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ED1055-1HB00-0BA2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

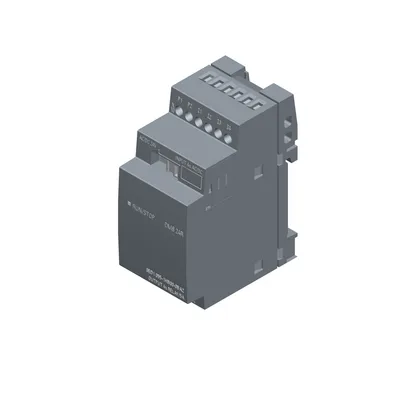

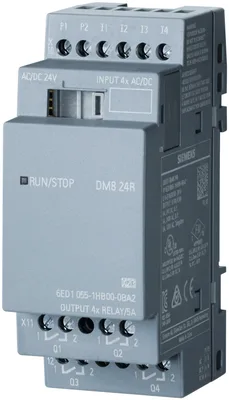

Siemens 6ED1055-1HB00-0BA2

LOGO! DM8 24R expansion module, PS/I/O: 24V/24V/relay, 2 MW 4 DI/4 DO, AC/DC/NPN input for LOGO! 8

SiemensMFR # 6ED1055-1HB00-0BA2SKU # CEY-937FC77EC98A

Mountingon 35 mm DIN rail, 2 spacing units wide

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

24 V ACYes

permissible range, lower limit47 Hz

Have questions?Chat on WhatsApp

About This Product

LOGO! DM8 24R expansion module, PS/I/O: 24V/24V/relay, 2 MW 4 DI/4 DO, AC/DC/NPN input for LOGO! 8

Siemens 6ED1055-1HB00-0BA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Installation type/mounting

Mountingon 35 mm DIN rail, 2 spacing units wide

Supply voltage

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

24 V ACYes

Line frequency

permissible range, lower limit47 Hz

permissible range, upper limit63 Hz

Digital inputs

Number of digital inputs4

Input voltage

Type of input voltageAC/DC

for signal "0"< 5 V AC/DC

for signal "1"> 12 V AC/DC

Input current

for signal "0", max. (permissible quiescent current)1.1 mA

for signal "1", typ.2.63 mA

for standard inputs

— at "0" to "1", max.1.5 ms

— at "1" to "0", max.15 ms

Digital outputs

Number of digital outputs4; Relays

Short-circuit protectionNo

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.1 000 W

Output current

for signal "1" rated value5 A

for signal "1" minimum load current100 mA

Parallel switching of two outputs

for upratingNo

Switching frequency

with resistive load, max.2 Hz

with inductive load, max.0.5 Hz

mechanical, max.10 Hz

Switching capacity of contacts

— with inductive load, max.3 A

— with resistive load, max.5 A

Emission of radio interference acc. to EN 55 011

Limit class B, for use in residential areasYes

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

FM approvalYes

developed in accordance with IEC 61131Yes

according to VDE 0631Yes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]59.1 kg

— global warming potential, (during production) [CO2 eq]5.82 kg

— global warming potential, (during operation) [CO2 eq]53.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.373 kg

Ambient temperature during operation

min.-20 °C; No condensation

max.55 °C

Dimensions

Width35.5 mm

Height90 mm

Depth58 mm
