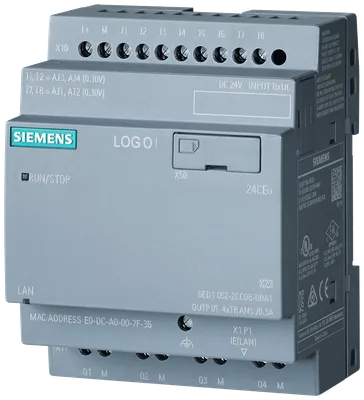

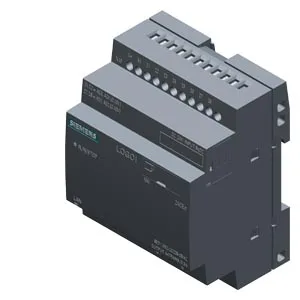

Siemens 6ED1052-2CC08-0BA2
LOGO! 24CEo, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable, cloud connection, MQTT in all LOGO! 8.4 basic units
Mountingon 35 mm DIN rail, 4 spacing units wide
24 V DCYes
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Number400; Max. 400, function-specific
Power reserve480 h
About This Product
LOGO! 24CEo, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable, cloud connection, MQTT in all LOGO! 8.4 basic units
Siemens 6ED1052-2CC08-0BA2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Installation type/mounting
Mountingon 35 mm DIN rail, 4 spacing units wide
Supply voltage
24 V DCYes
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Time switching clocks
Number400; Max. 400, function-specific
Power reserve480 h
Digital inputs
Number of digital inputs8; Of which 4 can be used in analog mode (0 to 10 V)
Digital outputs
Number of digital outputs4; Transistor
Short-circuit protectionYes; electrical (1 A)
Output current
for signal "1" permissible range for 0 to 55 °C, max.0.3 A
Emission of radio interference acc. to EN 55 011
Limit class B, for use in residential areasYes; Radio interference suppression according to EN55011, Limit Value Class B
Standards, approvals, certificates
Siemens Eco Profile (SEP)Siemens EcoTech
CE markYes
CSA approvalYes; covered by UL cert
UL approvalYes
FM approvalYes
developed in accordance with IEC 61131Yes
according to VDE 0631Yes
Marine approvalYes
Ecological footprint
environmental product declarationYes
Global warming potential
— global warming potential, (total) [CO2 eq]51.5 kg
— global warming potential, (during production) [CO2 eq]9.64 kg
— global warming potential, (during operation) [CO2 eq]42.1 kg
— global warming potential, (after end of life cycle) [CO2 eq]-0.364 kg
Ambient temperature during operation
min.-20 °C; No condensation
max.55 °C
Ambient temperature during storage/transportation
min.-40 °C
max.70 °C
Altitude during operation relating to sea level
Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Dimensions
Width71.5 mm; 4 modular widths (MW)
Height90 mm
Depth58 mm
