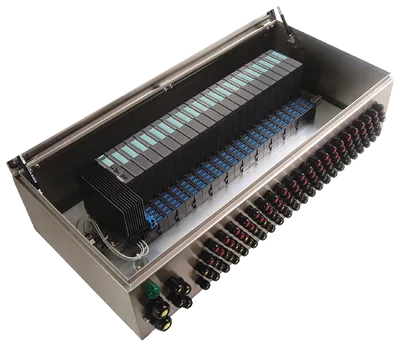

Siemens 6DL2804-2DD40

A successor can be created if necessary steel, IP65. With installation of the ET 200iSP and AirLineEx pneumatic components (these must be ordered additionally). II 2 (1) D Ex tb [ia Da] IIIC T130°C Db. Size (WxHxD): 650x450x230, for max. 14 iSP modules (EM/IM). Cable entries: 2x M32 power supply, 4x M20 bus cables and 36x M20 (7-13 mm) for signals in 3 rows, version in plastic black. Ambient operating temperature minimum 0 degrees Celsius. The ET 200iSP components to be installed in the enclosure must be ordered with the cabinet.

SiemensMFR # 6DL2804-2DD40SKU # CEY-8EF3B0387D05

Wall mounting/direct mountingYes

Type of supply voltage24 V DC, 120 V AC, 230 V AC

CE markYes

UKCA markYes

UL approvalNo

RoHS conformityYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6DL2804-2DD40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSIMATIC ET 200iSP stainless steel Ex device with pneumatics

Suitability for usegas and dust, hazardous zone 1, 2, 21 and 22

Installation type/mounting

Wall mounting/direct mountingYes

Supply voltage

Type of supply voltage24 V DC, 120 V AC, 230 V AC

Standards, approvals, certificates

CE markYes

UKCA markYes

UL approvalNo

RoHS conformityYes

China RoHS complianceNo

Use in hazardous areas

ATEX markingII 2 (1) G Ex eb db ib [ia Ga] IIC T4 Gb

ATEX certificateBVS 04 ATEX E 157

EAC ExNo

Ambient temperature during operation

min.0 °C; down to -20 °C when using heater

max.45 °C; dependent on the power loss of the installed components

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Conductor cross-section in mm²

— Connectable cable cross-sections for massive cables, min.0.5 mm²; direct connection to ET 200iSP power supply TM-PS

— Connectable cable cross-sections for massive cables, min.4 mm²; direct connection to ET 200iSP power supply TM-PS. For larger cross-sections, order additional supply terminals 6DL9910-8E*

— Connectable cable cross-sections for flexible cables without end sleeve, min.0.5 mm²; direct connection to ET 200iSP power supply TM-PS

— Connectable cable cross-sections for flexible cables without end sleeve, max.2.5 mm²; direct connection to ET 200iSP power supply TM-PS. For larger cross-sections, order additional supply terminals 6DL9910-8E*

— Connectable cable cross-sections for flexible cables with end sleeve, min.0.5 mm²; direct connection to ET 200iSP power supply TM-PS

— Connectable cable cross-sections for flexible cables with end sleeve, max.2.5 mm²; direct connection to ET 200iSP power supply TM-PS. For larger cross-sections, order additional supply terminals 6DL9910-8E*

Mechanics/material

Design of housingwidth 650 mm, IP65, cable glands M20 plastic black

Dimensions

Width650 mm

Height450 mm

Depth230 mm

Thickness1.5 mm; sheet thickness, stainless steel DIN 1.4404 (SS 316L)

Weights

Weight, approx.22.5 kg
