General information

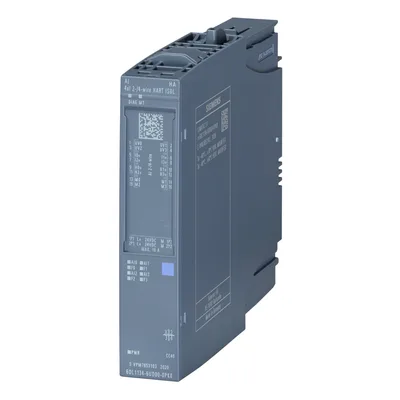

Product type designationAI 4xI 2-/4-wire HART ISOL HA
Firmware versionV1.0
FW update possibleYes; The firmware update can take more than 5 minutes.
Usable terminal blocktype K0, L0, S0, R0 (see system manual for details)
Color code for module-specific color-coded labelCC40
Product function
I&M dataYes; I&M0 to I&M3
Engineering with
STEP 7 TIA Portal configurable/integrated from versionV17
STEP 7 configurable/integrated from versionV5.6
PCS 7 configurable/integrated from versionV9.1
PCS neo can be configured/integrated from versionV3.0
PROFINET from GSD version/GSD revisionGSDML V2.35
Redundancy
Redundancy capabilityYes; see the system manual
CiR - Configuration in RUN
Reparameterization possible in RUNYes
Supply voltage
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Input current
Current consumption (rated value)184 mA; sensor supply without loads
Current consumption, max.234 mA; at 1.5 kOhm load on sensor supply
Encoder supply
Number of outputs4
Output voltage (DC)24 V
Output voltage, min.19.2 V
Short-circuit protectionYes; Electronic
Output current
Rated value20 mA
permissible range, lower limit0 mA
permissible range, upper limit23.52 mA
24 V encoder supply
24 VYes
Short-circuit protectionYes
Output current per channel, max.23.5 mA
Output current per module, max.88 mA
Power loss
Power loss, typ.1.8 W
Address space per module
Address space per module, max.9 byte; 8 bytes for inputs and 1 byte for QI information
Address space per module with HART, max.29 byte; 8 bytes for inputs, 1 byte for QI information, 20 bytes for HART information
Address space per module with MultiHART, max.16 byte; 8 bytes for inputs, 1 byte for QI information, 6 bytes for HART information, 1 byte for HART command
Analog inputs
Number of analog inputs4
For current measurement4
permissible input current for current input (destruction limit), max.30 mA
Input ranges (rated values), currents
0 to 20 mAYes; 16 bit incl. sign
— Input resistance (0 to 20 mA)250 Ω
4 mA to 20 mAYes; 16 bit incl. sign
— Input resistance (4 mA to 20 mA)250 Ω
Cable length
shielded, max.800 m; with unshielded cables up to 800 m, remember that (external) EMC loads can cause incorrect measured values
Integration and conversion time/resolution per channel
Resolution with overrange (bit including sign), max.16 bit; 14 bit at 60 Hz (0 ... 10 mA), 16 bit at 10 Hz, 15 bit at 50 Hz and 15 bit at 60 Hz interference suppression
Smoothing of measured values
ParameterizableYes; none, weak, medium, strong, channel-by-channel
Connection of signal encoders
for current measurement as 2-wire transducerYes
Errors/accuracies
Linearity error (relative to input range), (+/-)0.01 %
Temperature error (relative to input range), (+/-)0.005 %/K
Crosstalk between the inputs, min.60 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %
Operational error limit in overall temperature range
Current, relative to input range, (+/-)0.5 %
Basic error limit (operational limit at 25 °C)
Current, relative to input range, (+/-)0.1 %
Interrupts/diagnostics/status information
Diagnostics functionYes
Alarms
Diagnostic alarmYes
Limit value alarmYes; two upper and two lower limit values in each case
Diagnoses
Monitoring the supply voltageYes
Wire breakYes; channel by channel
Short-circuitYes; Channel-by-channel, short-circuit of the encoder supply to ground or of an input to the encoder supply
Overflow/UnderflowYes; channel by channel
Diagnostics indication LED
MAINT LEDYes; Yellow LED
Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
Channel status displayYes; green LED
for channel diagnosticsYes; red LED
for module diagnosticsYes; green/red DIAG LED
Potential separation channels
between the channelsYes; 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB)
between the channels and backplane busYes; 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB)
between the channels and the power supply of the electronicsYes; 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB)
Permissible potential difference
between the channels125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB)
between the channels and supply voltage125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB)
between the channels and backplane bus125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB)
tested with
between backplane bus and load voltage3 000 V DC/1 min, type test
between the channels and load voltagebetween the channels 2 100 V DC/1 min, type test (when using terminal blocks with push-in terminals); 1 200 V DC/1 min, type test (when using terminal blocks with D-SUB)
between the channels and backplane bus3 000 V DC/1 min, type test
Between channelsbetween the channels 4 200 V DC/1 min, type test (when using terminal blocks with push-in terminals); 1 200 V DC/1 min, type test (when using terminal blocks with D-SUB)
Ambient temperature during operation
horizontal installation, min.-40 °C
horizontal installation, max.70 °C
vertical installation, min.-40 °C
vertical installation, max.70 °C

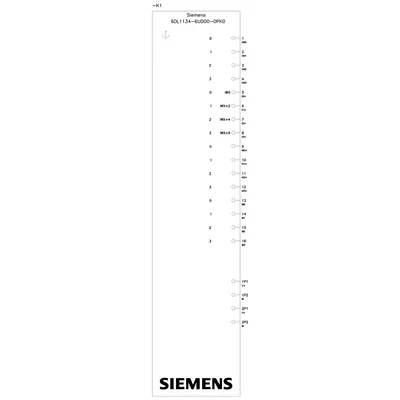

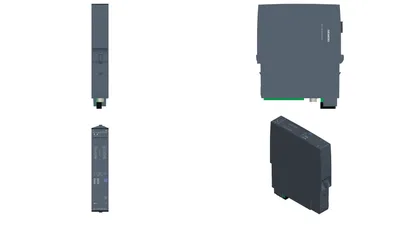

Dimensions
Width22.5 mm
Height115 mm
Depth138 mm
Weights
Weight, approx.163 g
