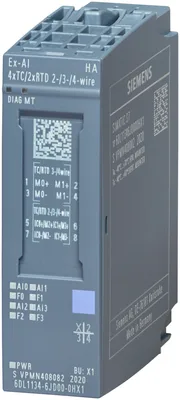

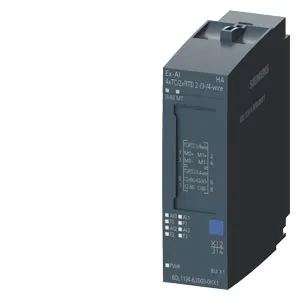

Siemens 6DL1134-6JD00-0HX1

Please take care of the sales information regarding to existing certificates. SIOS article 109796307 analog ex-i input module, Ex-AI 4xTC/2xRTD 2-/3-/4-wire, suitable for BaseUnit type X1, channel diagnostics, 16bit, +/-0.05%

SiemensMFR # 6DL1134-6JD00-0HX1SKU # YLS8JM9FTSV9HTM

Product type designationEx-AI 4xTC/2xRTD 2-/3-/4-wire

Firmware versionV1.0

FW update possibleYes

usable BaseUnitsBU type X1

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6DL1134-6JD00-0HX1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationEx-AI 4xTC/2xRTD 2-/3-/4-wire

Firmware versionV1.0

FW update possibleYes

usable BaseUnitsBU type X1

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV16

STEP 7 configurable/integrated from versionV5.6 SP2

PCS 7 configurable/integrated from versionV9.1

PCS neo can be configured/integrated from versionV3.1

PROFINET from GSD version/GSD revisionGSDML V2.35

Operating mode

MSIYes

Redundancy

Redundancy capabilityNo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Input current

Current consumption (rated value)33 mA

Current consumption, max.40 mA

Power loss

Power loss, typ.0.8 W

Address space per module

Address space per module, max.16 byte; + 1 byte for QI information

Inputs16 byte; + 1 byte for QI information

Hardware configuration

Mechanical coding elementYes

Selection of BaseUnit for connection variants

2-wire connectionBU type X1

3-wire connectionBU type X1

4-wire connectionBU type X1

Analog inputs

For voltage measurement4

For resistance/resistance thermometer measurement2

For thermocouple measurement4

Constant measurement current for resistance-type transmitter, typ.0.5 mA

Technical unit for temperature measurement adjustableYes; °C/°F/K

Input ranges (rated values), voltages

-1 V to +1 VYes; 16 bit incl. sign

— Input resistance (-1 V to +1 V)1 MΩ

-250 mV to +250 mVYes; 16 bit incl. sign

— Input resistance (-250 mV to +250 mV)1 MΩ

-50 mV to +50 mVYes; 16 bit incl. sign

— Input resistance (-50 mV to +50 mV)1 MΩ

-80 mV to +80 mVYes; 16 bit incl. sign

— Input resistance (-80 mV to +80 mV)1 MΩ

Input ranges (rated values), thermocouples

Type BYes; 16 bit incl. sign

— Input resistance (Type B)1 MΩ

Type CYes; 16 bit incl. sign

— Input resistance (Type C)1 MΩ

Type EYes; 16 bit incl. sign

— Input resistance (Type E)1 MΩ

Type JYes; 16 bit incl. sign

— Input resistance (type J)1 MΩ

Type KYes; 16 bit incl. sign

— Input resistance (Type K)1 MΩ

Type LYes; 16 bit incl. sign

— Input resistance (Type L)1 MΩ

Type NYes; 16 bit incl. sign

— Input resistance (Type N)1 MΩ

Type RYes; 16 bit incl. sign

— Input resistance (Type R)1 MΩ

Type SYes; 16 bit incl. sign

— Input resistance (Type S)1 MΩ

Type TYes; 16 bit incl. sign

— Input resistance (Type T)1 MΩ

Type UYes; 16 bit incl. sign

— Input resistance (Type U)1 MΩ

Type TXK/TXK(L) to GOSTYes; 16 bit incl. sign

— Input resistance (Type TXK/TXK(L) to GOST)1 MΩ

Input ranges (rated values), resistance thermometer

Cu 10Yes; 16 bit incl. sign

— Input resistance (Cu 10)1 MΩ

Ni 100Yes; 16 bit incl. sign

— Input resistance (Ni 100)1 MΩ

— Input resistance (Ni 1000)1 MΩ

LG-Ni 1000Yes; 16 bit incl. sign

Ni 120Yes; 16 bit incl. sign

— Input resistance (Ni 120)1 MΩ

Ni 200Yes; 16 bit incl. sign

— Input resistance (Ni 200)1 MΩ

Ni 500Yes; 16 bit incl. sign

— Input resistance (Ni 500)1 MΩ

Pt 100Yes; 16 bit incl. sign

— Input resistance (Pt 100)1 MΩ

Pt 1000Yes; 16 bit incl. sign

— Input resistance (Pt 1000)1 MΩ

Pt 200Yes; 16 bit incl. sign

— Input resistance (Pt 200)1 MΩ

Pt 500Yes; 16 bit incl. sign

— Input resistance (Pt 500)1 MΩ

Input ranges (rated values), resistors

0 to 150 ohmsYes; 15 bit

— Input resistance (0 to 150 ohms)1 MΩ

0 to 300 ohmsYes; 15 bit

— Input resistance (0 to 300 ohms)1 MΩ

0 to 600 ohmsYes; 15 bit

— Input resistance (0 to 600 ohms)1 MΩ

0 to 3000 ohmsYes; 15 bit

— Input resistance (0 to 3000 ohms)1 MΩ

0 to 6000 ohmsYes; 15 bit

— Input resistance (0 to 6000 ohms)1 MΩ

PTCYes; 15 bit

— Input resistance (PTC)1 MΩ

Temperature compensation

— ParameterizableYes

— internal comparison pointYes; BU type X1

— Reference channel of the groupYes

— Number of reference channel groups4

— fixed reference temperatureYes

Cable length

shielded, max.200 m; Ex characteristic values must be observed; line resistance at RTD (simple) max. 25 ohm; loop resistance at TC max. 8 kOhm

Analog value generation for the inputs

Measurement principleintegrating (Sigma-Delta)

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes; Channel-by-channel, results from the selected interference frequency suppression

— additional processing time for wire-break check20 ms; In the ranges resistance thermometers, resistors and thermocouples

— additional power line wire-break check20 ms, for 3/4-wire transducer (resistance thermometer and resistor)

Interference voltage suppression for interference frequency f1 in Hz16.6 / 50 / 60 Hz, channel-by-channel

Conversion time (per channel)180 / 60 / 50 ms, results from the selected interference frequency suppression

Smoothing of measured values

parameterizableYes; none, weak, medium, strong, channel-by-channel

Errors/accuracies

Linearity error (relative to input range), (+/-)0.01 %; ±0.1 % for resistance thermometers and resistance

Temperature error (relative to input range), (+/-)0.0009 %/K; ±0.005 % / K at thermocouple

Crosstalk between the inputs, min.50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.1 %

Resistance, relative to input range, (+/-)0.1 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.05 %

Resistance, relative to input range, (+/-)0.05 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.70 dB

Common mode voltage, max.60 V; Applicable for use in non-hazardous areas; no common mode voltage permissible in hazardous areas

Common mode interference, min.90 dB

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes; two upper and two lower limit values in each case

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; channel by channel

Overflow/UnderflowYes; channel by channel

Diagnostics indication LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

maximum values for connecting terminals for gas group IIC

Uo (no-load voltage), max.5.9 V

Io (short-circuit current), max.18 mA

Po (power output), max.27 mW

Co (permissible external capacity), max.43 µF

Lo (permissible external inductivity), max.110 mH

Um (voltage at non-intrinsically safe connecting terminals), max.60 V

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes; Electrical isolation between the channels and input voltage PME

Isolation

Isolation tested withfurther information on insulation can be found in the "ET 200SP HA / ET 200SP modules for devices in hazardous areas” System Manual

insulation of the field circuits to local ground acc. to IEC/EN 60079-11 tested with707 V DC (type test)

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Dimensions

Width20 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.55 g
