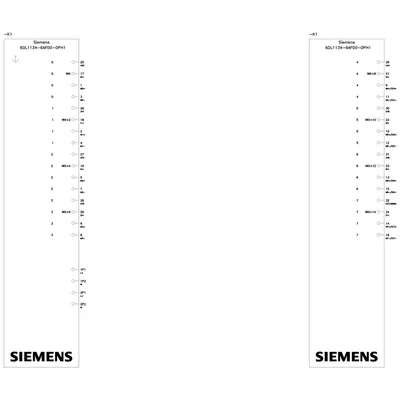

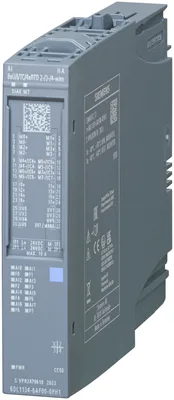

Siemens 6DL1134-6AF00-0PH1

Please be sure to observe the sales instructions regarding existing certificates. See SIOS entry 109820448 input module, AI 8xU/I/TC/4xRTD 2-/3-/4-wire HA suitable for terminal block, H1, N0, H0 color code CC00, channel diagnostics

SiemensMFR # 6DL1134-6AF00-0PH1SKU # YLSEO0GWHE51MUW

Product type designationAI 8xU/I/TC/4xRTD 2/3/4-wire HA

Firmware versionV1.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

PROFINET from GSD version/GSD revisionGSDML V2.42 2023.01

Redundancy capabilityNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6DL1134-6AF00-0PH1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI 8xU/I/TC/4xRTD 2/3/4-wire HA

Firmware versionV1.0

FW update possibleYes

Usable terminal blocktype H1, N0, H0 (see system manual for details)

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV18

STEP 7 configurable/integrated from versionV5.6

PCS 7 configurable/integrated from versionV9.1 SP2

PCS neo can be configured/integrated from versionV4.0

PROFINET from GSD version/GSD revisionGSDML V2.42 2023.01

Redundancy

Redundancy capabilityNo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)220 mA

24 V encoder supply

24 VYes

Short-circuit protectionYes; a max. of 1 channel may be operated in short-circuit

Output current per channel, max.0.032 A; max. 1 channel

Power loss

Power loss, typ.1.95 W

Address space per module

Address space per module, max.32 byte; + 2 bytes for QI information

Analog inputs

For current measurement8

For voltage measurement8

For resistance/resistance thermometer measurement4

For thermocouple measurement8

permissible input voltage for voltage input (destruction limit), max.24 V

permissible input current for current input (destruction limit), max.40 mA

Constant measurement current for resistance-type transmitter, typ.1.25 mA

Technical unit for temperature measurement adjustableYes; °C/°F/K

Input ranges (rated values), voltages

0 to +10 VYes; 15 bit

— Input resistance (0 to 10 V)100 kΩ

1 V to 5 VYes; 15 bit

— Input resistance (1 V to 5 V)100 kΩ

-1 V to +1 VYes; 16 bit incl. sign

— Input resistance (-1 V to +1 V)10 MΩ

-10 V to +10 VYes; 16 bit incl. sign

— Input resistance (-10 V to +10 V)100 kΩ

-2.5 V to +2.5 VYes; 16 bit incl. sign

— Input resistance (-2.5 V to +2.5 V)100 kΩ

-250 mV to +250 mVYes; 16 bit incl. sign

— Input resistance (-250 mV to +250 mV)10 MΩ

-5 V to +5 VYes; 16 bit incl. sign

— Input resistance (-5 V to +5 V)100 kΩ

-50 mV to +50 mVYes; 16 bit incl. sign

— Input resistance (-50 mV to +50 mV)10 MΩ

-500 mV to +500 mVYes; 16 bit incl. sign

— Input resistance (-500 mV to +500 mV)10 MΩ

-80 mV to +80 mVYes; 16 bit incl. sign

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)50 Ω

-20 mA to +20 mAYes

— Input resistance (-20 mA to +20 mA)50 Ω

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)50 Ω

Input ranges (rated values), thermocouples

type BYes; 16 bit incl. sign

— Input resistance (Type B)10 MΩ

type CYes; 16 bit incl. sign

— Input resistance (Type C)10 MΩ

Type EYes; 16 bit incl. sign

— Input resistance (Type E)10 MΩ

Type JYes; 16 bit incl. sign

— Input resistance (type J)10 MΩ

Type KYes; 16 bit incl. sign

— Input resistance (Type K)10 MΩ

Type LYes; 16 bit incl. sign

— Input resistance (Type L)10 MΩ

Type NYes; 16 bit incl. sign

— Input resistance (Type N)10 MΩ

Type RYes; 16 bit incl. sign

— Input resistance (Type R)10 MΩ

Type SYes; 16 bit incl. sign

— Input resistance (Type S)10 MΩ

Type TYes; 16 bit incl. sign

— Input resistance (Type T)10 MΩ

Type UYes; 16 bit incl. sign

— Input resistance (Type U)10 MΩ

Type TXK/TXK(L) to GOSTYes; 16 bit incl. sign

— Input resistance (Type TXK/TXK(L) to GOST)10 MΩ

Input ranges (rated values), resistance thermometer

Cu 10Yes; 16 bit incl. sign

— Input resistance (Cu 10)10 MΩ

Cu 50Yes; 16 bit incl. sign

— Input resistance (Cu 50)10 MΩ

Cu 100Yes; 16 bit incl. sign

— Input resistance (Cu 100)10 MΩ

Ni 100Yes; 16 bit incl. sign

— Input resistance (Ni 100)10 MΩ

Ni 1000Yes; 16 bit incl. sign

— Input resistance (Ni 1000)10 MΩ

LG-Ni 1000Yes; 16 bit incl. sign

— Input resistance (LG-Ni 1000)10 MΩ

Ni 120Yes; 16 bit incl. sign

— Input resistance (Ni 120)10 MΩ

Ni 200Yes; 16 bit incl. sign

— Input resistance (Ni 200)10 MΩ

Ni 500Yes; 16 bit incl. sign

— Input resistance (Ni 500)10 MΩ

Pt 100Yes; 16 bit incl. sign

— Input resistance (Pt 100)10 MΩ

Pt 1000Yes; 16 bit incl. sign

— Input resistance (Pt 1000)10 MΩ

Pt 200Yes; 16 bit incl. sign

— Input resistance (Pt 200)10 MΩ

Pt 500Yes; 16 bit incl. sign

— Input resistance (Pt 500)10 MΩ

Input ranges (rated values), resistors

0 to 150 ohmsYes; 15 bit

— Input resistance (0 to 150 ohms)10 MΩ

0 to 300 ohmsYes; 15 bit

— Input resistance (0 to 300 ohms)10 MΩ

0 to 600 ohmsYes; 15 bit

— Input resistance (0 to 600 ohms)10 MΩ

0 to 3000 ohmsYes; 15 bit

— Input resistance (0 to 3000 ohms)10 MΩ

0 to 6000 ohmsYes; 15 bit

— Input resistance (0 to 6000 ohms)10 MΩ

PTCYes; 15 bit

— Input resistance (PTC)10 MΩ

Temperature compensation

— ParameterizableYes

— external temperature compensation via RTDYes

— Reference channel of the moduleYes; channel 7

— internal comparison pointYes; with terminal block H1

— Reference channel of the groupYes

— Number of reference channel groups4

— fixed reference temperatureYes

Cable length

shielded, max.thermocouples: shielded cable length max. 200 m, voltages: shielded cable length max. 600 m, loop resistance max 8 kOhm; measuring ranges RTD: shielded cable length max. 600 m, cable resistance (single) max. 75 ohm, current measurement: shielded cable length max. 800 m

unshielded, max.200 m; Only applies when connecting current sensors

Analog value generation for the inputs

Measurement principleintegrating (Sigma-Delta)

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes; Channel-by-channel, results from the selected interference frequency suppression

Interference voltage suppression for interference frequency f1 in Hz10 / 50 / 60 / 400 Hz

Conversion time (per channel)Channel-by-channel, results from the selected interference frequency suppression

Smoothing of measured values

ParameterizableYes; none, weak, medium, strong, channel-by-channel

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerYes

— Burden of 2-wire transmitter, max.820 Ω

for current measurement as 4-wire transducerYes

for resistance measurement with two-wire connectionYes; all measuring ranges incl. PTC

for resistance measurement with three-wire connectionYes; All measuring ranges except PTC; internal compensation of the cable resistances

for resistance measurement with four-wire connectionYes; All measuring ranges except PTC

Errors/accuracies

Linearity error (relative to input range), (+/-)0.01 %; ±0.1 % for resistance thermometers and resistance

Temperature error (relative to input range), (+/-)0.002 %/K; ±0.005 % / K at thermocouple

Crosstalk between the inputs, min.50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.3 %

Current, relative to input range, (+/-)0.3 %

Resistance, relative to input range, (+/-)0.3 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.1 %

Current, relative to input range, (+/-)0.1 %

Resistance, relative to input range, (+/-)0.1 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.60 dB

Common mode voltage, max.15 V

Common mode interference, min.90 dB

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes; two upper and two lower limit values in each case

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; channel-by-channel current 4 ... 20 mA, R and RTD

short-circuitYes; channel by channel for current (2-wire)

Overflow/UnderflowYes; channel by channel

Diagnostics indication LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+Yes

Permissible potential difference

between the inputs (UCM)15 V DC/10 V AC

Isolation

Isolation tested with1 500 V DC/1 min, type test

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

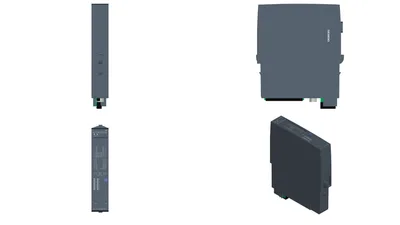

Dimensions

Width22.5 mm

Height115 mm

Depth138 mm

Weights

Weight, approx.150 g
