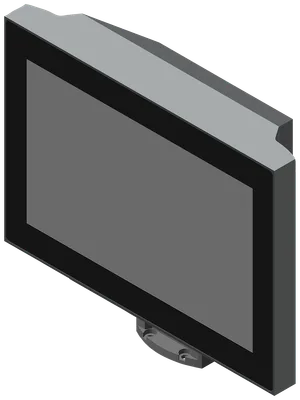

Siemens 6AV7863-1MA14-2NA0

SIMATIC IFP1200 V2 PRO; 12" multi-touch display(16:10) with 1280x800 pixel resolution; PRO variant stand; for 24 V DC; display port interface, can be placed up to 100 m away HDBaseT, USB on the rear side, neutral design

SiemensMFR # 6AV7863-1MA14-2NA0SKU # YLSOSIHQSDCHYSK

Product type designationIFP1200 V2 PRO

Short designationFlat Panel 12" multi-touch ext.

Design of displayTFT widescreen display, LED backlighting

Screen diagonal12.1 in

Screen diagonal [cm]30.7 cm

Display width261.1 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7863-1MA14-2NA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIFP1200 V2 PRO

Short designationFlat Panel 12" multi-touch ext.

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal12.1 in

Screen diagonal [cm]30.7 cm

Display width261.1 mm

Display height163.2 mm

On Screen Display (OSD) configurationNo

Number of colors16 777 216; 24 bit

Viewing angle176° x 176°

Resolution (pixels)

Image resolution1 280 x 800

Horizontal image resolution1 280 pixel

Vertical image resolution800 pixel

Pixel size, horizontal0.204 mm

Pixel size, vertical0.204 mm

General features

Brightness/contrast400 cd/m² / 800:1

Detachable from computer unit100 m; HDBaseT protocol

Luminance400 cd/m²

Backlighting

Type of backlightingLED

MTBF backlighting (at 25 °C)70 000 h; At 25°C

Backlight dimmableYes; 0-100 %

Input device

Integrated mouse cursor controlYes; Also externally via USB

Touch operation

Design as touch screenYes

Design as multi-touch screenYes; Projective-capacitive

Monitor keyboardYes

Installation type/mounting

DesignPedestal mounting

Front mountingNo

Stand mountingYes

Built-in unitNo; IP65 fully enclosed

maximum permitted forward tilt angle from vertical45°

maximum permitted backward tilt angle from vertical45°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V; PELV / SELV floating

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.65 A

Current consumption, max.1 A

Starting current inrush I²t0.5 A²·s

Power loss

Power loss, typ.15 W

Power loss, max.25 W

Interfaces

Number of USB interfaces2; USB 2.0 type A

USB on the rearYes; 2x onboard

Connection for keyboard/mouseUSB

Video interfaces

DisplayPortYes; Display port V1.2

Touch interfaces

USBYes

Degree and class of protection

IP (at the front)IP65

IP (rear)IP65

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Enclosure Type 12 at the frontYes

Standards, approvals, certificates

CE markYes

UL approvalYes; cULus, cUL

cULusYes; Corresponds to UL 508

FM approvalYes; in preparation

RCM (formerly C-TICK)Yes

EAC (formerly Gost-R)Yes

EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]287.07688 kg

— global warming potential, (during production) [CO2 eq]67.0741 kg

— global warming potential, (during operation) [CO2 eq]233.02427 kg

— global warming potential, (after end of life cycle) [CO2 eq]-14.70413 kg

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)No

American Bureau of Shipping (ABS)No

Bureau Veritas (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (Class NK)No

Ambient temperature during operation

min.0 °C

max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.3 500 m

Relative humidity

Operation, max.95 %; no condensation

Vibrations

Vibration load in operation1 gn

Vibration load during transport/storage1 gn

Shock testing

Shock load during operation15 gn

shock acceleration during storage/transport15 gn

Mechanics/material

Enclosure material (front)With neutral design

AluminumYes

Aluminum castingYes

GlassYes; at front

Enclosure material (rear)aluminum

Dimensions

Width of the housing front313 mm

Height of housing front225 mm

Weights

Weight (without packaging)4 kg

Weight (with packaging)5.8 kg
