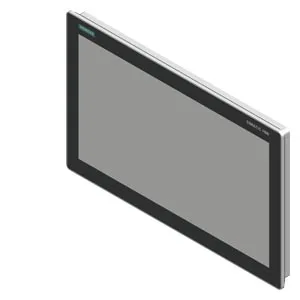

Siemens 6AV7862-2BE00-2AA0
SIMATIC HMI IM-319A multi-touch industrial monitor 19" (resolution 1920 x 1080) power supply; 12/24 V DC 1 x DP, 1 x HDMI 1 x USB type A; 1 x USB type B
Product type designationSIMATIC HMI IM-319A
Short designationIM-319A
Design of display18.5" full HD display in 16:9 format
Screen diagonal18.5 in
Display width408.96 mm
Display height230.04 mm
About This Product
SIMATIC HMI IM-319A multi-touch industrial monitor 19" (resolution 1920 x 1080) power supply; 12/24 V DC 1 x DP, 1 x HDMI 1 x USB type A; 1 x USB type B
Siemens 6AV7862-2BE00-2AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationSIMATIC HMI IM-319A
Short designationIM-319A
Display
Design of display18.5" full HD display in 16:9 format
Screen diagonal18.5 in
Display width408.96 mm
Display height230.04 mm
On Screen Display (OSD) configurationNo; Adjustable by means of software
Number of colors16 000 000; 16 million
Viewing angle178° x 178°
Resolution (pixels)
Horizontal image resolution1 920 pixel
Vertical image resolution1 080 pixel
General features
Brightness/contrast350 cd/m² / 1 000:1
Detachable from computer unit5 m
Luminance350 cd/m²
Backlighting
Type of backlightingLED
MTBF backlighting (at 25 °C)50 000 h
Backlight dimmableYes; 10 ... 100%
Input device
Integrated mouse cursor controlNo
Touch operation
Design as touch screenYes; Projective-capacitive
Design as multi-touch screenYes
Installation type/mounting
VESA mountingYes; VESA 100 x 100
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
Built-in unitYes; Portrait mode possible
maximum permitted forward tilt angle from vertical45°
maximum permitted backward tilt angle from vertical45°
Supply voltage
Type of supply voltage12-24 V DC
Rated value (DC)24 V; 12-24 V DC
permissible range, lower limit (DC)9 V
permissible range, upper limit (DC)36 V
Input current
current consumption (for rated value of supply voltage), max.2 A
Starting current inrush I²t0.1 A²·s
Power loss
Power loss, typ.21 W
Power loss, max.24 W
Interfaces
Number of USB interfaces1; USB 2.0
USB on the rearYes; 1x onboard
Video interfaces
DisplayPortYes; Display port V1.2
Touch interfaces
USBYes; USB 2.0
Degree and class of protection
IP (at the front)IP65
IP (rear)IP40 (cabinet mounting) / IP20 (VESA)
Standards, approvals, certificates
CE markYes; also UKCA
RCM (formerly C-TICK)Yes
FCCYes
EMCCE, EN 61000-6-4, EN 61000-6-2
Ambient temperature during operation
min.0 °C
max.60 °C
Ambient temperature during storage/transportation
min.-20 °C
max.70 °C
Relative humidity
Operation, max.85 %; no condensation
Vibrations
Vibration load in operation10 m/s²
Vibration load during transport/storage10 m/s²
Shock testing
Shock load during operation150 m/s²
shock acceleration during storage/transport250 m/s²
Mechanics/material
AluminumYes
GlassYes
Dimensions
Width of the housing front464 mm
Height of housing front294 mm
Mounting cutout, width448 mm
Mounting cutout, height278 mm
mounting depth50 mm
Weights
Weight (without packaging)3.5 kg
Weight (with packaging)4.7 kg
