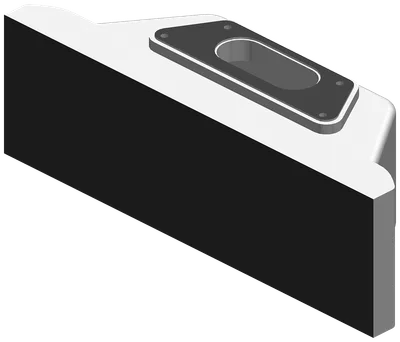

Siemens 6AV7674-1LA32-0AA0

Extension unit 12" PROFINET for mounting on all fully IP65-enclosed 16:9 HMI/IPC devices. For the flexible installation of operator controls, 6 mounting positions, 6 operator controls can be equipped; Connection via PROFINET (without equipment)

SiemensMFR # 6AV7674-1LA32-0AA0SKU # YLSORAVKAIBILBL

Product type designationExtension Unit 12" PROFINET

With parameterizable keysYes

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Type of supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7674-1LA32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationExtension Unit 12" PROFINET

Control elements

With parameterizable keysYes

Connection type

Connection type of the safety-related contacts (emergency stop)8-pin connector

Installation type/mounting

MountingFor mounting on a 16:9 HMI / IPC PRO device (lower part)

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Number of slots for command devices and signaling units6

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)150 mA; without load

Power

Active power input, typ.3 W; Additionally 0.1 W per control element with LED

Interfaces

Number of industrial Ethernet interfaces2; For the construction of lines and rings without external switch

Number of PROFINET interfaces2; Incl. switch

Protocols

PROFINETYes

Media redundancy

— MRPYes

Test commissioning functions

Key and signal lamp testYes; automatically when switching on

Degree and class of protection

IP (all-round)IP65

Enclosure Type 4x at the frontYes; All-round

Standards, approvals, certificates

CE markYes

UL approvalYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Suitable for safety functionsYes; e.g. installation of emergency stop

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Relative humidity

Operation, max.90 %; no condensation

Cables

Cable length30 m; Max. for emergency stop

Mechanics/material

AluminumYes

AluminumYes; Knockout covered with black film

Dimensions

Width313 mm

Height99 mm

Depth100.65 mm

Weights

Weight (without packaging)2.2 kg

Scope of supply

Delivery quantity in pieces1

Components includedPower supply connectors and 8-pole plug-in connectors for safety-related inputs
