How can I get a price quote for Siemens 6AV6881-0AE10-0CB0?

You can request a fast quote for Siemens 6AV6881-0AE10-0CB0 from Yılsa Engineering. Reference part number YLSFTMFQRCO8J4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV6881-0AE10-0CB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV6881-0AE10-0CB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV6881-0AE10-0CB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

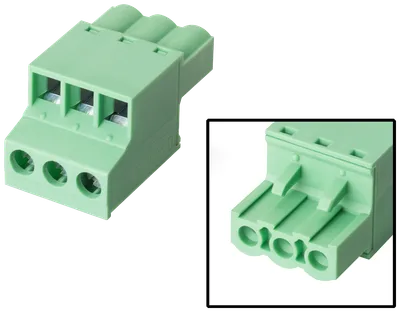

Siemens 6AV6881-0AE10-0CB0

plug, female, 3-pole, type 4, grid size 3.50 mm, scope of supply: 10 plugs

SiemensMFR # 6AV6881-0AE10-0CB0SKU # YLSFTMFQRCO8J4

Product type designationConnector, female, 3-pole, type 4

StandardYes; 180° straight

Mounting typeConductor cross-section 0.14 to 1.5 mm²

Rated value (DC)24 V

Current consumption (rated value)9 A; Typical, maximum value

Number of pins HMI-side3

Have questions?Chat on WhatsApp

About This Product

plug, female, 3-pole, type 4, grid size 3.50 mm, scope of supply: 10 plugs

Siemens 6AV6881-0AE10-0CB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationConnector, female, 3-pole, type 4

Frame size/design

StandardYes; 180° straight

Installation type/mounting

MountingTightening torque min.0.22 Nm to max. 0.25 Nm

Mounting typeConductor cross-section 0.14 to 1.5 mm²

Wall mounting/direct mountingYes; can be plugged into SIMATIC HMI device

Supply voltage

Rated value (DC)24 V

Input current

Current consumption (rated value)9 A; Typical, maximum value

Interfaces

Number of pins HMI-side3

Number of pins device-side3

Standards, approvals, certificates

CE markNo; No CE marking obligation

CSA approvalYes

cULusYes; cURus

EAC (formerly Gost-R)Yes

RoHS conformityYes; REACH SVHC Lead 7439-92-1

China RoHS complianceYes; Environment Friendly Use Period (EFUP): 50 years

Use in hazardous areas

ATEX Zone 2Yes; Device-dependent, see operating instructions

ATEX Zone 22Yes; Device-dependent, see operating instructions

IECEx Zone 2Yes; Device-dependent, see operating instructions

IECEx Zone 22Yes; Device-dependent, see operating instructions

cULus Class I Zone 1Yes; Device-dependent, see operating instructions

cULus Class I Zone 2, Division 2Yes; Device-dependent, see operating instructions

FM Class I Division 2Yes; Device-dependent, see operating instructions

Marine approval

Germanischer Lloyd (GL)Yes; Always comply with the operating instructions of the target device.

American Bureau of Shipping (ABS)Yes; Always comply with the operating instructions of the target device.

Bureau Veritas (BV)Yes; Always comply with the operating instructions of the target device.

Det Norske Veritas (DNV)Yes; Always comply with the operating instructions of the target device.

Korean Register of Shipping (KRS)Yes; Always comply with the operating instructions of the target device.

Lloyds Register of Shipping (LRS)Yes; Always comply with the operating instructions of the target device.

Nippon Kaiji Kyokai (Class NK)Yes; Always comply with the operating instructions of the target device.

Polski Rejestr Statkow (PRS)Yes; Always comply with the operating instructions of the target device.

Chinese Classification Society (CCS)Yes; Always comply with the operating instructions of the target device.

Ambient conditions

Suited for indoor useYes; Flammability class according to UL 94-V0

Suited for outdoor useYes; possible under certain conditions

Ambient temperature during operation

min.0 °C

max.55 °C

Ambient temperature during storage/transportation

min.-20 °C

max.70 °C

Relative humidity

Operation, max.80 %

Mechanics/material

plasticYes; Screw terminal with tension bushing

PlasticYes; Screw terminal with tension bushing

Enclosure color (front)green

Torques/forces

Tightening torque, min.0.22 N·m

Tightening torque, max.0.25 N·m

Dimensions

Width10.5 mm; Contact spacing 3.5 mm

Height11.1 mm

Depth16.1 mm

Weights

Weight (without packaging)0.7 g; Per unit

Scope of supply

Delivery quantity in pieces10; Units per set

Other

printable with laser printerNo

MerchandiseYes; MC 1,5/ 3-ST-3,5 - 1840379

Manufacturer namePHOENIX CONTACT

Manufacturer's addressFlachsmarktstraße 8, 32825 Blomberg, Germany

Target devicessuitable for all appropriate interfaces

Note:Screwdriver, slot, VDE insulated, size: 0.4 mm x 2.5 mm x 80 mm
