How can I get a price quote for Siemens 6AV6671-8XB10-0AX1?

You can request a fast quote for Siemens 6AV6671-8XB10-0AX1 from Yılsa Engineering. Reference part number CEY-55221B132CA3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV6671-8XB10-0AX1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV6671-8XB10-0AX1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV6671-8XB10-0AX1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

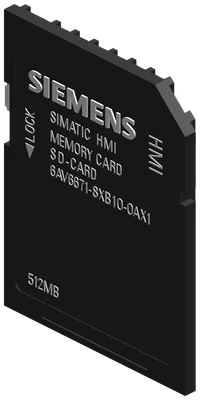

Siemens 6AV6671-8XB10-0AX1

SIMATIC SD memory card 512 MB secure digital card for devices with corresponding slot scope of supply: 1 memory card

SiemensMFR # 6AV6671-8XB10-0AX1SKU # CEY-55221B132CA3

Product type designationSD memory card

StandardYes; Typically 10 000 insertion cycles

FlatYes

Mounting positionAny, dependent on target device

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC SD memory card 512 MB secure digital card for devices with corresponding slot scope of supply: 1 memory card

Siemens 6AV6671-8XB10-0AX1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSD memory card

Frame size/design

StandardYes; Typically 10 000 insertion cycles

FlatYes

Installation type/mounting

Mounting positionAny, dependent on target device

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

Supply voltage

Type of supply voltageDC

Rated value (DC)3.3 V; Max 3.6 V

Input current

Current consumption (rated value)100 mA; Typical, maximum value

Storage

Type of memorySecure Digital memory card

Memory size512 Mbyte

Transmission rate for reading, max.1.6 Mbit/s; Minimum, typical for newly formatted memory

Transmission rate for writing, max.1.6 Mbit/s; Minimum, typical for newly formatted memory

Wear leveling (distributed writing)Yes; > 100 000 write/read cycles per cell and > 3 000 000 write/read cycles per card

Write protection switchYes; Effectiveness depends on the device

Interfaces

Number of pins device-side9

Standards, approvals, certificates

CE markYes

UKCA markYes

UL approvalYes

cULusYes

KC approvalYes

EAC (formerly Gost-R)Yes

RoHS conformityYes

China RoHS complianceYes

Marine approvalYes; Passive component, therefore dependent on target device

Use in hazardous areas

ATEX Zone 2Yes; Always comply with the operating instructions of the target device.

ATEX Zone 22Yes; Always comply with the operating instructions of the target device.

IECEx Zone 2Yes; Always comply with the operating instructions of the target device.

IECEx Zone 22Yes; Always comply with the operating instructions of the target device.

cULus Class I Zone 2, Division 2Yes; Always comply with the operating instructions of the target device.

FM Class I Division 2Yes; Always comply with the operating instructions of the target device.

Marine approval

Germanischer Lloyd (GL)Yes; Always comply with the operating instructions of the target device.

American Bureau of Shipping (ABS)Yes; Always comply with the operating instructions of the target device.

Bureau Veritas (BV)Yes; Always comply with the operating instructions of the target device.

Det Norske Veritas (DNV)Yes; Always comply with the operating instructions of the target device.

Lloyds Register of Shipping (LRS)Yes; Always comply with the operating instructions of the target device.

Nippon Kaiji Kyokai (Class NK)Yes; Always comply with the operating instructions of the target device.

Polski Rejestr Statkow (PRS)Yes; Always comply with the operating instructions of the target device.

Chinese Classification Society (CCS)Yes; Always comply with the operating instructions of the target device.

Compass working clearance5 m

Ambient conditions

Suited for indoor useYes

Suited for outdoor useNo

Ambient temperature during operation

min.0 °C; Indoor

max.50 °C; Indoor

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %

Condensation permissibleNo; Condensation not permissible

Runs under operating system

Windows CEYes

Windows VistaYes

Windows XPYes

Windows 7Yes

Windows 8Yes

Windows 10Yes

LinuxNo

otherYes; Card must not be formatted!

Mechanics/material

PlasticYes; Gold contacts

Enclosure color (front)RAL 6034 (color deviation possible)

Service life

Number of operating cycles, keys10; Min. data storage without loss (in years)

Dimensions

Width24 mm

Height32 mm

Thickness2.1 mm

Weights

Weight (without packaging)3 g

Weight (with packaging)6 g

Scope of supply

Delivery quantity in pieces1

Other

MerchandiseNo

Manufacturer nameSIEMENS AG

Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany

Target devicesfor MP177, MP277, MP377 and Mobile Panel 277, WinCC flexible 2008 SP1 and higher for OP77, TP/OP177, TP/OP277, Mobile Panel 177, with SD/MMC slot

Note:MP377 only up to and including FS:04 or ES:04 - Alternatively 2 GB SD card

Accessories 12

Genuine accessories that can be used with the Siemens 6AV6671-8XB10-0AX1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7900-0AA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-1FA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-0BA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-0CA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-0DA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-0EA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-0FA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-1AA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-1BA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-1CA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-1DA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
6ES7900-1EA00-0XA0	Aksesuar · Cable · power supply units, power supply cords
