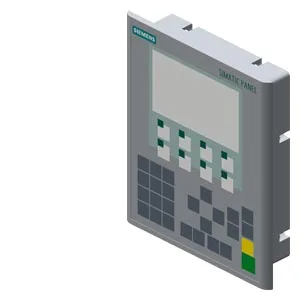

Siemens 6AV6647-0AJ11-3AX1

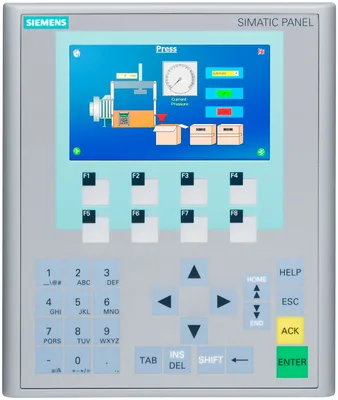

SIMATIC HMI KP400 Basic Color PN, Basic Panel, key operation, 4" widescreen TFT display, 256 colors, PROFINET interface, configurable from WinCC Basic V11 SP2/ STEP 7 Basic V11 SP2, contains open-source software, which is provided free of charge see enclosed CD
Product type designationKP400 Basic color PN
Design of displayTFT
Screen diagonal4.3 in
Display width95 mm
Display height53.8 mm
Number of colors256
About This Product
SIMATIC HMI KP400 Basic Color PN, Basic Panel, key operation, 4" widescreen TFT display, 256 colors, PROFINET interface, configurable from WinCC Basic V11 SP2/ STEP 7 Basic V11 SP2, contains open-source software, which is provided free of charge see enclosed CD
Siemens 6AV6647-0AJ11-3AX1
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationKP400 Basic color PN
Display
Design of displayTFT
Screen diagonal4.3 in
Display width95 mm
Display height53.8 mm
Number of colors256
Resolution (pixels)
Horizontal image resolution480 pixel
Vertical image resolution272 pixel
Backlighting
MTBF backlighting (at 25 °C)50 000 h
Backlight dimmableNo
Keyboard
— Number of function keys8
— Number of function keys with LEDs0
Keys with LEDNo
System keysYes
Numeric keyboardYes; Keyboard
alphanumeric keyboardYes; similar to mobile phone
Touch operation
Design as touch screenNo; without
Installation type/mounting
Mounting positionvertical
Wall mounting/direct mountingNo
Mounting in portrait format possibleNo
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)0.1 A
Starting current inrush I²t0.5 A²·s
Power
Active power input, typ.2 W
Processor
Processor typeRISC 32 bit
Storage
FlashYes
RAMYes
Memory available for user data1 Mbyte
Type of output
BuzzerNo
SpeakerNo
Clock
Hardware clock (real-time)No
Software clockYes
retentiveNo
synchronizableYes
Interfaces
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces0
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesNo
Industrial Ethernet
Industrial Ethernet status LED2
Protocols
PROFINETYes
Supports protocol for PROFINET IONo
IRTNo
PROFIBUSNo
EtherNet/IPYes
MPINo
Protocols (Ethernet)
TCP/IPYes
DHCPYes
SNMPYes
DCPYes
LLDPYes
WEB characteristics
HTTPNo
HTMLNo
Media redundancy
— MRPNo
Further protocols
CANNo
MODBUSYes; Modicon (MODBUS TCP/IP)
Emission of radio interference acc. to EN 55 011
Limit class A, for use in industrial areasYes
Limit class B, for use in residential areasNo
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontYes
Enclosure Type 4x at the frontYes
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
Use in hazardous areas
ATEX Zone 2No
ATEX Zone 22No
cULus Class I Zone 1No
cULus Class I Zone 2, Division 2No
FM Class I Division 2No
Marine approval
Germanischer Lloyd (GL)No
American Bureau of Shipping (ABS)No
Bureau Veritas (BV)No
Det Norske Veritas (DNV)No
Lloyds Register of Shipping (LRS)No
Nippon Kaiji Kyokai (Class NK)No
Polski Rejestr Statkow (PRS)No
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Ambient temperature during storage/transportation
min.-20 °C
max.60 °C
Relative humidity
Operation, max.90 %; no condensation
Operating systems
proprietaryYes
pre-installed operating system
Windows CENo
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
STEP 7 Basic (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
STEP 7 Professional (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
WinCC flexible CompactNo
WinCC flexible StandardNo
WinCC flexible AdvancedNo
WinCC Basic (TIA Portal)Yes
WinCC Comfort (TIA Portal)Yes
WinCC Advanced (TIA Portal)Yes
WinCC Professional (TIA Portal)Yes
Online languages
Number of online/runtime languages5
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
time-controlledNo
task-controlledYes
Help systemYes
Number of characters per info text320
Message system
Number of alarm classes32
— Number of bit messages200
— Number of analog messages15
System messages HMIYes
Number of characters per message80
Number of process values per message8
Message indicatorYes
— Number of entries256
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
Recipe management
Number of recipes5
Data records per recipe20
Entries per data record20
Size of internal recipe memory40 kbyte
Recipe memory expandableNo
Variables
Number of variables per device500
Number of variables per screen30
Limit valuesYes
MultiplexingYes
StructuresNo
ArraysYes
Images
Number of configurable images50
Permanent window/defaultYes; No permanent window can be configured
Global imageYes
Image selection by PLCYes
Image number in the PLCYes
Image objects
Number of objects per image30
Text fieldsYes
I/O fieldsYes
Graphic I/O fields (graphics list)Yes
Symbolic I/O fields (text list)Yes
Date/time fieldsYes
SwitchesYes
ButtonsYes
Graphic displayYes
IconsYes; Predefined screen objects
Geometric objectsYes
Complex image objects
Number of complex objects per screen5
Alarm viewYes
Trend viewYes
User viewYes
Status/controlNo
Sm@rtClient viewNo
Recipe viewYes
f(x) trend viewNo
System diagnostics viewNo
Media PlayerNo
Bar graphsYes
SlidersNo
Pointer instrumentsNo
Analog/digital clockNo
Lists
Number of text lists per project150
Number of entries per text list30
Number of graphics lists per project100
Number of entries per graphics list30
Archiving
Number of archives per device0
Security
Number of user groups50
Number of user rights32
Number of users50
Password export/importNo
SIMATIC LogonNo
Character sets
— US EnglishYes
Transfer (upload/download)
MPI/PROFIBUS DPNo
USBNo
EthernetYes
using external storage mediumNo
Process coupling
S7-1200Yes
S7-1500Yes
S7-200Yes
S7-300/400Yes
LOGO!Yes
WinACNo
SINUMERIKNo
SIMOTIONNo
Allen Bradley (EtherNet/IP)Yes
Allen Bradley (DF1)No
Mitsubishi (MC TCP/IP)Yes
Mitsubishi (FX)No
OMRON (FINS TCP)No
OMRON (Host Link)No
Modicon (Modbus TCP/IP)Yes
Modicon (Modbus RTU)No
Service tools/configuration aids
Backup/Restore manuallyYes
Backup/Restore automaticallyNo
SimulationYes
Device switchoverYes
Peripherals/Options
PrinterNo
SIMATIC HMI MM memory card: Multi Media CardNo
SIMATIC HMI SD memory card: Secure Digital memory cardNo
USB memoryNo
Mechanics/material
PlasticYes
AluminumNo
Stainless steelNo
Dimensions
Width of the housing front162 mm
Height of housing front189 mm
Mounting cutout, width135 mm
Mounting cutout, height171 mm
mounting depth33 mm
Weights
Weight (without packaging)0.51 kg
Weight (with packaging)0.66 kg
