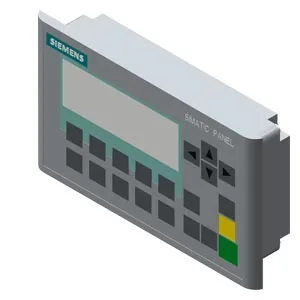

Siemens 6AV6647-0AH11-3AX1

SIMATIC HMI KP300 Basic mono PN, Basic Panel, key operation, 3" FSTN LCD display, black/white, PROFINET interface, configurable from WinCC Basic V11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD

SiemensMFR # 6AV6647-0AH11-3AX1SKU # YLSLK56BBPMX6KR

Product type designationKP300 Basic mono PN

Design of displayFSTN

Screen diagonal3.6 in

Display width87 mm

Display height31 mm

Horizontal image resolution240 pixel

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV6647-0AH11-3AX1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationKP300 Basic mono PN

Display

Design of displayFSTN

Screen diagonal3.6 in

Display width87 mm

Display height31 mm

Number of colors4; backlit display only (white, red, green, yellow)

Resolution (pixels)

Horizontal image resolution240 pixel

Vertical image resolution80 pixel

Backlighting

MTBF backlighting (at 25 °C)50 000 h

Backlight dimmableNo

Keyboard

— Number of function keys10

— Number of function keys with LEDs0

Keys with LEDNo

System keysYes

Numeric keyboardYes; Keyboard

alphanumeric keyboardYes; Keyboard

Touch operation

Design as touch screenNo; without

Installation type/mounting

Mounting positionvertical

Rack mountingNo

Wall mounting/direct mountingNo

Mounting in portrait format possibleNo

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.1 A

Starting current inrush I²t0.5 A²·s

Power

Active power input, typ.3 W

Processor

Processor typeRISC 32 bit

Storage

FlashYes

RAMYes

Memory available for user data1 Mbyte

Type of output

BuzzerNo

SpeakerNo

Clock

Hardware clock (real-time)No

Software clockYes

retentiveNo

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1

Number of RS 485 interfaces0

Number of RS 422 interfaces0

Number of RS 232 interfaces0

Number of USB interfaces0

Number of 20 mA interfaces (TTY)0

Number of parallel interfaces0

Number of other interfaces0

Number of SD card slots0

With software interfacesNo

Industrial Ethernet

Industrial Ethernet status LED2

Protocols

PROFINETYes

Supports protocol for PROFINET IONo

IRTNo

PROFIBUSNo

EtherNet/IPYes

MPINo

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPNo

HTMLNo

Media redundancy

— MRPNo

Further protocols

CANNo

MODBUSYes; Modicon (MODBUS TCP/IP)

Diagnoses

Diagnostic information readableNo

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Standards, approvals, certificates

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Use in hazardous areas

ATEX Zone 2No

ATEX Zone 22No

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2Yes

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)Yes

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Polski Rejestr Statkow (PRS)No

Operation (vertical installation)

— For vertical installation, min.0 °C

— For vertical installation, max.50 °C

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.40 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Operating systems

proprietaryYes

pre-installed operating system

Windows CENo

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

STEP 7 Basic (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)

STEP 7 Professional (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)

WinCC flexible CompactNo

WinCC flexible StandardNo

WinCC flexible AdvancedNo

WinCC Basic (TIA Portal)Yes

WinCC Comfort (TIA Portal)Yes

WinCC Advanced (TIA Portal)Yes

WinCC Professional (TIA Portal)Yes

Online languages

Number of online/runtime languages5

Project languages

Languages per project32

Functionality under WinCC (TIA Portal)

LibrariesYes

Applications/optionsnone

Web browserNo

SIMATIC WinCC Sm@rtServerNo

time-controlledNo

task-controlledYes

Help systemYes

Number of characters per info text320

Message system

Number of alarm classes32

Bit messagesYes

— Number of bit messages200

Analog messagesYes

— Number of analog messages15

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )No

Number of characters per message80

Number of process values per message8

Message indicatorYes

— Number of entries256

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Recipe management

Number of recipes5

Data records per recipe20

Entries per data record20

Size of internal recipe memory40 kbyte

Recipe memory expandableNo

Variables

Number of variables per device250

Number of variables per screen30

Limit valuesYes

MultiplexingYes

StructuresNo

ArraysYes

Images

Number of configurable images50

Permanent window/defaultYes

Global imageYes

Image selection by PLCYes

Image number in the PLCYes

Image objects

Number of objects per image30

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Date/time fieldsYes

SwitchesYes

ButtonsYes

Graphic displayYes

IconsYes

Geometric objectsYes

Complex image objects

Number of complex objects per screen5

Alarm viewYes

Trend viewYes

User viewYes

Status/controlNo

Sm@rtClient viewNo

Recipe viewYes

f(x) trend viewNo

System diagnostics viewNo

Media PlayerNo

Bar graphsYes

SlidersNo

Pointer instrumentsNo

Analog/digital clockNo

Lists

Number of text lists per project150

Number of entries per text list30

Number of graphics lists per project100

Number of entries per graphics list30

Archiving

Number of archives per device0

Security

Number of user groups50

Number of user rights32

Number of users50

Password export/importNo

SIMATIC LogonNo

Character sets

— US EnglishYes

Transfer (upload/download)

MPI/PROFIBUS DPNo

USBNo

EthernetYes

using external storage mediumNo

Process coupling

S7-1200Yes

S7-1500Yes

S7-200Yes

S7-300/400Yes

LOGO!Yes

WinACYes

SINUMERIKNo

SIMOTIONNo

Allen Bradley (EtherNet/IP)Yes

Allen Bradley (DF1)No

Mitsubishi (MC TCP/IP)Yes

Mitsubishi (FX)No

OMRON (FINS TCP)No

OMRON (Host Link)No

Modicon (Modbus TCP/IP)Yes

Modicon (Modbus RTU)No

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyNo

SimulationYes

Device switchoverYes

Peripherals/Options

PrinterNo

SIMATIC HMI MM memory card: Multi Media CardNo

SIMATIC HMI SD memory card: Secure Digital memory cardNo

USB memoryNo

Mechanics/material

PlasticYes

AluminumNo

Stainless steelNo

Dimensions

Width of the housing front165 mm

Height of housing front97 mm

Mounting cutout, width149 mm

Mounting cutout, height82 mm

mounting depth30 mm

Weights

Weight (without packaging)0.25 kg

Weight (with packaging)0.38 kg
