How can I get a price quote for Siemens 6AV6646-7BA00-0AA0?

You can request a fast quote for Siemens 6AV6646-7BA00-0AA0 from Yılsa Engineering. Reference part number YLSSGQCHJZYBYH2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV6646-7BA00-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV6646-7BA00-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV6646-7BA00-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

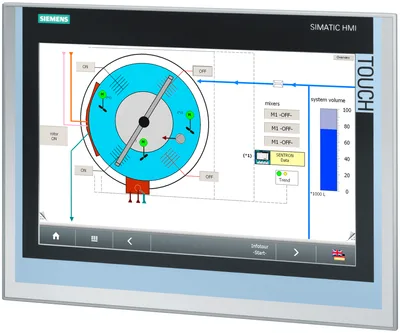

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

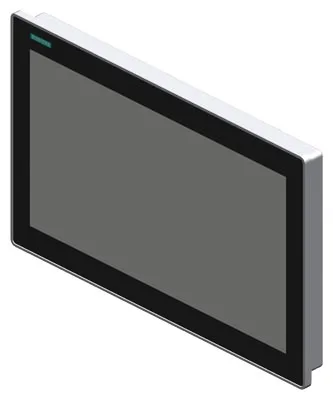

Siemens 6AV6646-7BA00-0AA0

SIMATIC HMI, IWP1500MT, industrial web panel, multi-touch, HTML5 browser, 15" widescreen TFT display, built-in unit

SiemensMFR # 6AV6646-7BA00-0AA0SKU # YLSSGQCHJZYBYH2

Product type designationIWP1500MT

Design of displayTFT widescreen display, LED backlighting

Screen diagonal15.6 in

Display width344.2 mm

Display height193.5 mm

Number of colors16 777 216

Have questions?Chat on WhatsApp

About This Product

SIMATIC HMI, IWP1500MT, industrial web panel, multi-touch, HTML5 browser, 15" widescreen TFT display, built-in unit

Siemens 6AV6646-7BA00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIWP1500MT

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal15.6 in

Display width344.2 mm

Display height193.5 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution1 366 pixel

Vertical image resolution768 pixel

General features

non-reflective and tempered mineral glass screenYes

Backlighting

MTBF backlighting (at 25 °C)50 000 h; At 25°C

Backlight dimmableYes; LED, dimmable

Touch operation

Design as touch screenYes

Design as multi-touch screenYes; Projective-capacitive

Monitor keyboardYes

Installation type/mounting

DesignBuilt-in unit

Front mountingYes

Support arm mountingNo

Stand mountingNo

Built-in unitYes

maximum permitted forward tilt angle from vertical35°

maximum permitted backward tilt angle from vertical35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)1.4 A

Starting current inrush I²t0.5 A²·s

Power

Active power input, typ.34 W

Power loss

Power loss, typ.34 W

Interfaces

Number of industrial Ethernet interfaces2; 2 ports (switch)

Number of USB interfaces4; on rear

Connection for keyboard/mouseonly mouse

Industrial Ethernet

Transmission rate, max.1 000 Mbit/s

Protocols (Ethernet)

TCP/IPYes

DHCPYes

WEB characteristics

HTTPYes

HTTPSYes

HTMLYes; HTML5

XMLYes

CSSYes

Active XNo

JavaScriptYes

Java VMNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4x at the frontYes

Enclosure Type 12 at the frontYes

Standards, approvals, certificates

CE markYes

cULusYes

FM approvalNo

RCM (formerly C-TICK)Yes

KC approvalNo

EAC (formerly Gost-R)Yes

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Vibrations

Vibration load in operation10 m/s²

Vibration load during transport/storage10 m/s²

Shock testing

Shock load during operation150 m/s²

shock acceleration during storage/transport150 m/s²

Software

Web browserYes; HTML5, CSS

PDF readerYes

Configuration

LocalYes

RemoteNo

Online languages

Number of online/runtime languages2; german / english

Peripherals/Options

USB memoryYes; USB storage medium can be connected

Mechanics/material

AluminumYes

Dimensions

Width of the housing front398 mm

Height of housing front257 mm

Mounting cutout, width382 mm

Mounting cutout, height241 mm

mounting depth73 mm

Weights

Weight (without packaging)5 kg
