How can I get a price quote for Siemens 6AV3688-3XY38-3AX0?

You can request a fast quote for Siemens 6AV3688-3XY38-3AX0 from Yılsa Engineering. Reference part number CEY-8EF3B02F08E9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV3688-3XY38-3AX0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV3688-3XY38-3AX0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV3688-3XY38-3AX0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

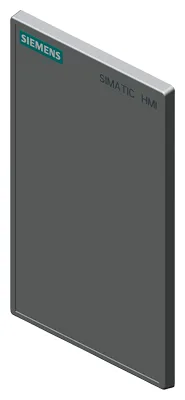

Siemens 6AV3688-3XY38-3AX0

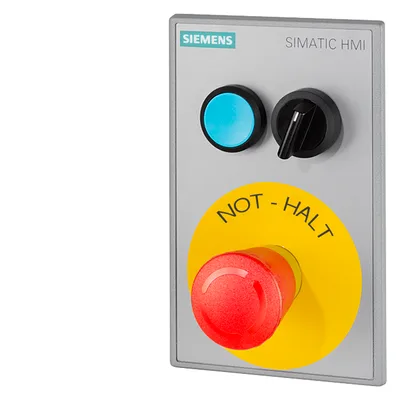

design empty front in KP8 format for easy mounting of standard 22.5 mm operator controls ideal for setting up modular operator panels also suitable for installation in Extension Unit of all 15" and 19" 4:3 PRO devices scope of supply: 1 KP8 design empty front

SiemensMFR # 6AV3688-3XY38-3AX0SKU # CEY-8EF3B02F08E9

Product type designationEmpty front design

Mounting typeClamp terminals

Mounting positionany

Rack mountingNo

Rail mountingNo

Wall mounting/direct mountingNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV3688-3XY38-3AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationEmpty front design

Installation type/mounting

Mounting typeClamp terminals

Mounting positionany

Rack mountingNo

Front mountingYes; Compatible with Extension Units dimensions

Rail mountingNo

Wall mounting/direct mountingNo

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation180°; To the front/rear

Number of slots for command devices and signaling units5; Max. 5 possible

Supply voltage

Design of the power supplyexternal

Interfaces

Number of industrial Ethernet interfaces0

Number of PROFINET interfaces0

Number of USB interfaces0

Protocols

PROFINETNo

PROFIsafeNo

Media redundancy

— MRPNo

Test commissioning functions

Key and signal lamp testNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4 at the frontNo

Enclosure Type 4x at the frontNo

Standards, approvals, certificates

CE markYes

cULusNo

RCM (formerly C-TICK)No

KC approvalNo

Suitable for safety functionsYes; e.g. installation of emergency stop

Use in hazardous areas

ATEX Zone 2No

ATEX Zone 22No

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2No

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)No

American Bureau of Shipping (ABS)No

Bureau Veritas (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (Class NK)No

Polski Rejestr Statkow (PRS)No

Ambient temperature during operation

min.0 °C

max.55 °C

Operation (vertical installation)

— For vertical installation, min.0 °C

— For vertical installation, max.55 °C

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.45 °C

Operation (vertical installation, portrait format)

— For vertical installation, min.0 °C

— For vertical installation, max.45 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.95 %

Mechanics/material

plasticNo

AluminumYes

Stainless steelNo

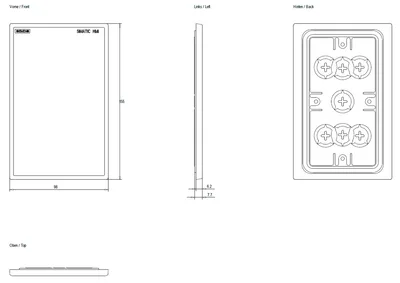

Dimensions

Width98 mm

Height155 mm

Mounting cutout, width68 mm; Max. thickness of mounting plate 2 - 6 mm

Mounting cutout, height129 mm

mounting depth49 mm

Weights

Weight (without packaging)240 g

Other

MerchandiseYes

Manufacturer nameSIEMENS AG

Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany
