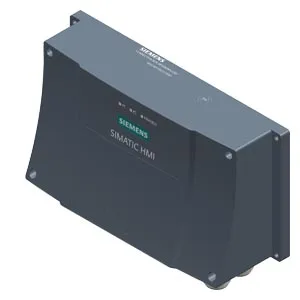

Siemens 6AV2185-5AE23-1AA0
SIMATIC HMI connection box decentralized for Mobile Panels, wall mounting, PROFINET and PROFIsafe, connection of safety relay, emergency stop circuit jumper, terminal detection, Integrated switch, MRP client, IRT, panel present
Product type designationConnection box
Web-based managementYes
Monitoring the STOP buttonYes
Monitoring of emergency stop buttonYes
Monitoring of acknowledgement buttonYes
Monitoring the STOP buttonYes
About This Product
SIMATIC HMI connection box decentralized for Mobile Panels, wall mounting, PROFINET and PROFIsafe, connection of safety relay, emergency stop circuit jumper, terminal detection, Integrated switch, MRP client, IRT, panel present
Siemens 6AV2185-5AE23-1AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationConnection box
Product function
Web-based managementYes
Safety evaluation through direct wiring
Reconnection without emergency stop circuit interruptionYes
Reconnection with emergency stop circuit interruptionNo
Monitoring the STOP buttonYes
Monitoring of emergency stop buttonYes
Monitoring of acknowledgement buttonYes
Safety evaluation via PROFIsafe
Reconnection without emergency stop circuit interruptionYes
Reconnection with emergency stop circuit interruptionNo
Monitoring the STOP buttonYes
Monitoring of emergency stop buttonYes
Monitoring of acknowledgement buttonYes
Installation type/mounting
Wall mounting/direct mountingYes
Control cabinet installationNo
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)95 mA
Starting current inrush I²t0.16 A²·s
Power
Active power input, typ.2.3 W
Interfaces
Number of industrial Ethernet interfaces3
Number of PROFINET interfaces3
Connection point identificationYes
Industrial Ethernet
Industrial Ethernet status LED3
Protocols
PROFINETYes
IRTYes
PROFIsafeYes
EtherNet/IPYes
AS-InterfaceNo
EIB/KNXNo
Protocols (Ethernet)
TCP/IPYes
DHCPYes
SNMPYes
DCPYes
LLDPYes
Media redundancy
— MRPYes
Further protocols
MODBUSYes
other bus systemsNo
Emission of radio interference acc. to EN 55 011
Limit class A, for use in industrial areasNo
Limit class B, for use in residential areasNo
Degree and class of protection
IP degree of protectionIP65
IP65 (all-round)Yes
IP (at the front)IP65
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalNo
Suitable for safety functionsYes
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
SIL acc. to IEC 61508SIL 3
Ambient temperature during operation
min.0 °C
max.55 °C
Relative humidity
Operation, max.90 %
Configuration software
STEP 7 Professional (TIA Portal)No
WinCC Comfort (TIA Portal)Yes; Optional
WinCC Advanced (TIA Portal)Yes; Optional
WinCC Professional (TIA Portal)Yes; Optional
Mechanics/material
PlasticYes
AluminumNo
Stainless steelNo
Dimensions
Width of the housing front230 mm
Height of housing front145 mm
Depth of housing76 mm
Weights
Weight (without packaging)0.72 kg
Weight (with packaging)0.8 kg
