How can I get a price quote for Siemens 6AG2193-6BP00-4BU0?

You can request a fast quote for Siemens 6AG2193-6BP00-4BU0 from Yılsa Engineering. Reference part number YLSN40DHJ8KBM6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG2193-6BP00-4BU0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG2193-6BP00-4BU0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG2193-6BP00-4BU0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

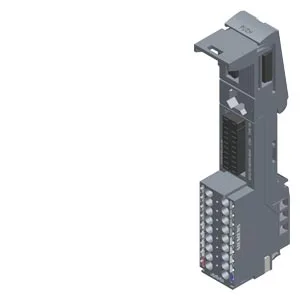

Siemens 6AG2193-6BP00-4BU0

SIPLUS ET 200SP BU20-P16+A0+2B TX rail based on 6ES7193-6BP00-0BU0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), BU type U0, push-in terminals, without AUX terminals, bridged to the left, WxH: 20 mm x 117 mm

SiemensMFR # 6AG2193-6BP00-4BU0SKU # YLSN40DHJ8KBM6

Product type designationBU type U0

based on6ES7193-6BP00-0BU0

Rated value (DC)See manual

For P1 and P2 bus120 V

for process terminals120 V

Rated value (AC)See manual

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG2193-6BP00-4BU0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBU type U0

based on6ES7193-6BP00-0BU0

Supply voltage

Rated value (DC)See manual

For P1 and P2 bus120 V

For AUX bus120 V; Equal potential group to P1/P2 bus or PE

for process terminals120 V

Rated value (AC)See manual

For P1 and P2 bus277 V

For AUX bus277 V; Equal potential group to P1/P2 bus or PE

for process terminals277 V; 480 V (L1 - L2 - L3); 277 V (L, N)

Mains filter

IntegratedNo

Current carrying capacity

up to 60 °C, max.10 A

For P1 and P2 bus, max.10 A

For AUX bus, max.10 A

For process terminals, max.10 A; Point of contact, derating depends on the module

Hardware configuration

Automatic encodingYes

Formation of potential groups

New potential groupNo

Potential group continued from the leftYes

Slots

Number of slots1

Potential separation

between backplane bus and supply voltageYes

between process terminals and supply voltageYes; Not applicable for process terminals 15 and 16

between power bus and supply voltageNo

Isolation

Isolation tested with2 545 V DC (type test) and according to EN 50155 (routine test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]0.873 kg

— global warming potential, (during production) [CO2 eq]0.866 kg

— global warming potential, (during operation) [CO2 eq]0 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.0011 kg

Railway application

EN 50121-3-2Yes; EMC for rail vehicles

EN 50121-4Yes; EMC for signal and telecommunications systems

EN 50121-5Yes; EMC for fixed installations and railway power supply equipment

EN 50124-1Yes; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC

EN 50125-1Yes; Rail vehicles - see ambient conditions

EN 50125-2Yes; Stationary electrical equipment - see ambient conditions

EN 50125-3Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track)

EN 50155Yes; Rail vehicles - temperature class OT4, ST1/ST2, horizontal mounting position

EN 61373Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B

Fire protection acc. to EN 45545-2Yes; For proof of conformity, see Service & Support

Ambient temperature during operation

horizontal installation, min.-40 °C; = Tmin (incl. condensation/frost)

horizontal installation, max.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)

vertical installation, min.-40 °C; = Tmin

vertical installation, max.50 °C; = Tmax

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on land craft, rail vehicles and special-purpose vehicles

— to biologically active substances according to EN 60721-3-5Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request

— to chemically active substances according to EN 60721-3-5Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-5Yes; Class 5S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-5Yes; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

— against mechanical environmental conditions in agriculture acc. to ISO 15003Yes; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Electronic equipment on rolling stock acc. to EN 50155Yes; Class PC2 protective coating acc. to EN 50155:2017

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Terminals

Terminal typePush-in terminal

Conductor cross-section, min.0.14 mm²; 0.2 mm² without wire end ferrule

Conductor cross-section, max.2.5 mm²; 1.5 mm² with wire end ferrule

Number of process terminals to I/O module16

Number of terminals to AUX bus0
