How can I get a price quote for Siemens 6AG1972-0BA12-2XA0?

You can request a fast quote for Siemens 6AG1972-0BA12-2XA0 from Yılsa Engineering. Reference part number CEY-8EF3B0388E1B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1972-0BA12-2XA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1972-0BA12-2XA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1972-0BA12-2XA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

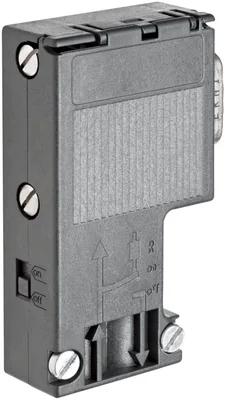

Siemens 6AG1972-0BA12-2XA0

SIPLUS DP PROFIBUS plug with R - without PG - 90 degrees based on 6ES7972-0BA12-0XA0 with conformal coating, -25…+70 °C, connection plug for PROFIBUS up to 12 Mbps, 90° cable outlet, terminating resistor with isolating function, without PG socket

SiemensMFR # 6AG1972-0BA12-2XA0SKU # CEY-8EF3B0388E1B

product brand nameSIPLUS

based on6ES7972-0BA12-0XA0

transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s

for PROFIBUS cables2

for PROFIBUS cablesScrew

material / of the enclosureplastic

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1972-0BA12-2XA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIPLUS

suitability for usefor connecting PROFIBUS stations to the PROFIBUS bus cable

based on6ES7972-0BA12-0XA0

transfer rate

transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s

interfaces

for PROFIBUS cables2

for network components or terminal equipment1

for PROFIBUS cablesScrew

for network components or terminal equipment9-pin sub D connector

mechanical data

design of terminating resistorResistor combination integrated and connectable via slide switch

material / of the enclosureplastic

locking mechanism designScrewed joint

design, dimensions and weights

type of cable outlet90 degree cable outlet

width15.8 mm

height64 mm

depth35.6 mm

net weight10 g

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

in horizontal mounting position / during operation70 ... -40 °C

during storage and transport70 ... -40 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

with condensation / maximum100 %; RH incl. condensation/frost permitted (no commissioning in bedewed state)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

conformity according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

conformity according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

conformity according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

conformity according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

conformity according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

conformity according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place over the unused interfaces during operation!

coating / for equipped printed circuit board / according to EN 61086Yes; Class 2 for high reliability

protection against pollution according to EN 60664-3Yes; Type 1 protection

for electronic devices in railway applications according to EN 50155Yes; protective coating of the Class PC2 according to EN 50155:2020

type of test / of the coating / according to MIL-I-46058CYes; Discoloration of coating possible during service life

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

protection class IPIP20

product features, product functions, product components / general

silicon-freeYes

PG connection socketNo

strain reliefYes

standards, specifications, approvals

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
