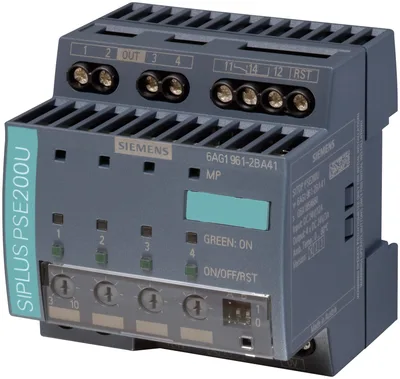

Siemens 6AG1961-2BA41-7AA0

SIPLUS PS PSE200U 10 A based on 6EP1961-2BA41 with conformal coating, -25…+70 °C, selectivity module 4-channel 4-channel input: 24 V DC output: 24 V DC/10 A per channel output current adjustable 3-10 with status message per channel

SiemensMFR # 6AG1961-2BA41-7AA0SKU # CEY-8EF3B0388E25

product brand nameSIPLUS

product type designationPSE200U

product designationSITOP Selectivity module

type of the power supply networkControlled DC voltage

supply voltage at DC rated value24 V

input voltage at DC22 ... 30 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1961-2BA41-7AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSIPLUS

product type designationPSE200U

product designationSITOP Selectivity module

type of current supplySelectivity module, 4 x 10 A Single-channel signaling

manufacturer's article number of the basic version used for SIPLUS product versions6EP1961-2BA41

input

type of the power supply networkControlled DC voltage

supply voltage at DC rated value24 V

input voltage at DC22 ... 30 V

overvoltage overload capability35 V

input current at rated input voltage 24 V rated value40 A

output

voltage curve at outputcontrolled DC voltage

formula for output voltageVin - approx. 0.2 V

relative overall tolerance of the voltage noteIn accordance with the supplying input voltage

number of outputs4

output current up to 60 °C per output rated value10 A

adjustable current response value current of the current-dependent overload release3 ... 10 A

type of response value settingvia potentiometer

response delay maximum5 s

product feature parallel switching of outputsNo

type of outputs connectionsimultaneous switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 100 ms, or "load-optimized" via DIP switch configurable for sequential switch-on

efficiency

efficiency in percent99 %

power loss [W] at rated output voltage for rated value of the output current typical10 W

switch-off characteristic

of the excess currentIout = 1.0 ...1.5 x set value, switch-off after approx. 5 s

of the current limitationIout = 1.5 x set value, switch-off after typ. 100 ms

of the immediate switch-offIout > set value and Vin < 20 V, switch-off after approx. 0.5 ms

residual current at switch-off typical1 mA

design of the reset device/resetting mechanismvia sensor per output

remote reset functionnon-isolated 24 V input (signal level "high" at > 15 V)

protection and monitoring

fuse protection type at input15 A per output (not accessible)

display version for normal operationThree-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"

design of the switching contact for signaling functionStatus signal output (pulse/pause signal, can be evaluated via Simatic function block)

safety

galvanic isolation between input and output at switch-offNo

standard for safetyaccording to EN 62368-1

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 55022 Class B

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UKCA markingYes

Regulatory Compliance Mark (RCM)Yes

ambient conditions

in horizontal mounting position during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

installation altitude at height above sea level maximum6 000 m

ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation at altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m or reduction of the ambient temperature by 5 K/1000 m

relative humidity with condensation according to IEC 60068-2-38 maximum100 %; RH incl. condensation/frost (no commissioning if condensation is present), horizontal installation

chemical resistance to commercially available cooling lubricantsYes; incl. diesel and oil droplets in the air

resistance to biologically active substances conformity according to EN 60721-3-3Yes; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request

resistance to chemically active substances conformity according to EN 60721-3-3Yes; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust

resistance to biologically active substances conformity according to EN 60721-3-6Yes; Class 6B2 mold, fungal, sponge spores (except fauna)

resistance to chemically active substances conformity according to EN 60721-3-6Yes; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust

coating for equipped printed circuit board according to EN 61086Yes; Class 2 for high availability

type of coating protection against pollution according to EN 60664-3Yes; Type 1 protection

type of test of the coating according to MIL-I-46058CYes; Discoloration of the coating during service life possible

product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal Coating, Class A

connection method

type of electrical connectionscrew terminal

at input+24 V: 2 screw terminals for 0.5 ... 16 mm²; 0 V: 2 screw terminals for 0.5 ... 4 mm²

at outputOutput 1 ... 4: 1 screw terminal each for 0.5 ... 4 mm²

for auxiliary contactsRemote reset: 1 screw terminal for 0.5 ... 4 mm²

for signaling contact1 screw terminal for 0.5 ... 4 mm²

mechanical data

width × height × depth of the enclosure72 × 80 × 72 mm

installation width × mounting height72 mm × 180 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo
