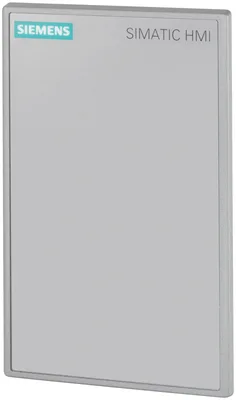

Siemens 6AG1688-3XY38-2AX0
SIPLUS HMI design empty front in KP8 format based on 6AV3688-3XY38-3AX0 with conformal coating, -40…+60 °C, start up -25 °C, design empty front in KP8 format for easy mounting of standard 22.5 mm operator controls, ideal for the setup of modular operator panels; also suitable for installation in extension units of the pro devices
Product type designationEmpty front design
based on6AV3688-3XY38-3AX0
Mounting typeClamp terminals
Mounting positionany
Rack mountingNo
Rail mountingNo
About This Product
SIPLUS HMI design empty front in KP8 format based on 6AV3688-3XY38-3AX0 with conformal coating, -40…+60 °C, start up -25 °C, design empty front in KP8 format for easy mounting of standard 22.5 mm operator controls, ideal for the setup of modular operator panels; also suitable for installation in extension units of the pro devices
Siemens 6AG1688-3XY38-2AX0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationEmpty front design
based on6AV3688-3XY38-3AX0
Installation type/mounting
Mounting typeClamp terminals
Mounting positionany
Rack mountingNo
Front mountingYes; Compatible with Extension Units dimensions
Rail mountingNo
Wall mounting/direct mountingNo
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation180°; To the front/rear
Number of slots for command devices and signaling units5; Max. 5 possible
Supply voltage
Design of the power supplyexternal
Interfaces
Number of industrial Ethernet interfaces0
Number of PROFINET interfaces0
Number of USB interfaces0
Protocols
PROFINETNo
PROFIsafeNo
Media redundancy
— MRPNo
Test commissioning functions
Key and signal lamp testNo
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontNo
Enclosure Type 4x at the frontNo
Standards, approvals, certificates
Suitable for safety functionsYes; e.g. installation of emergency stop
Ambient temperature during operation
min.-40 °C; = Tmin
max.60 °C; = Tmax
Operation (vertical installation)
— For vertical installation, min.-40 °C; = Tmin
— For vertical installation, max.60 °C; = Tmax
Operation (max. tilt angle)
— At maximum tilt angle, min.-40 °C; = Tmin
— At maximum tilt angle, max.60 °C; = Tmax
Operation (vertical installation, portrait format)
— For vertical installation, min.-40 °C; = Tmin
— For vertical installation, max.60 °C; = Tmax
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-40 °C; = Tmin
— At maximum tilt angle, max.60 °C; = Tmax
Ambient temperature during storage/transportation
min.-40 °C
max.80 °C
Mechanics/material
PlasticNo
AluminumYes
Stainless steelNo
Dimensions
Width98 mm
Height155 mm
Mounting cutout, width68 mm; Max. thickness of mounting plate 2 - 6 mm
Mounting cutout, height129 mm
mounting depth49 mm
Weights
Weight (without packaging)240 g
Other
MerchandiseYes
Manufacturer nameSIEMENS AG
Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany
