How can I get a price quote for Siemens 6AG1541-1AB00-7AB0?

You can request a fast quote for Siemens 6AG1541-1AB00-7AB0 from Yılsa Engineering. Reference part number CEY-8EF3B0388E59. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1541-1AB00-7AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1541-1AB00-7AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1541-1AB00-7AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

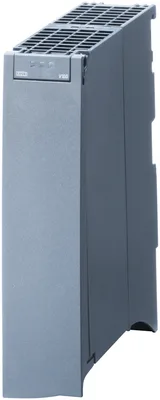

Siemens 6AG1541-1AB00-7AB0

SIPLUS S7-1500 CM PTP RS-422/485 based on 6ES7541-1AB00-0AB0 with conformal coating, -40…+70 °C, start up -25 °C, communications module for serial connection RS-422 and RS-485, Freeport, 3964 (R), USS, MODBUS RTU master, slave, 115200 Kbit/s, 15-Pin D-sub socket

SiemensMFR # 6AG1541-1AB00-7AB0SKU # CEY-8EF3B0388E59

Product type designationCM PtP RS 422 / 485 HF

based on6ES7541-1AB00-0AB0

I&M dataYes; I&M 0

Fast startupYes

Rail mountingYes; S7-1500 mounting rail

Current consumption (rated value)43 mA; From the backplane bus

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1541-1AB00-7AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCM PtP RS 422 / 485 HF

based on6ES7541-1AB00-0AB0

Product function

I&M dataYes; I&M 0

Fast startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Installation type/mounting

Rail mountingYes; S7-1500 mounting rail

Input current

Current consumption (rated value)43 mA; From the backplane bus

Power

Power consumption from the backplane bus0.65 W

Power loss

Power loss, typ.0.6 W

Address space per module

Inputs8 byte

RS 485

Transmission rate, max.115.2 kbit/s

Cable length, max.1 200 m

RS 422

Transmission rate, max.115.2 kbit/s

Cable length, max.1 200 m

4-wire full duplex connectionYes

4-wire multipoint connectionNo

Freeport

— Telegram length, max.4 kbyte

— Bits per character7 or 8

— Number of stop bits1 or 2 bit

— ParityNone, even, odd, always 1, always 0, any

3964 (R)

— Telegram length, max.4 kbyte

— Bits per character7 or 8

— Number of stop bits1 or 2 bit

— ParityNone, even, odd, always 1, always 0, any

Modbus RTU master

— Address area1 to 247, extended 1 to 65535

— max. number of devices32

Modbus RTU device

— Address area1 to 247, extended 1 to 65535

Telegram buffer

Buffer memory for telegrams8 kbyte

Number of telegrams which can be buffered255

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Hardware interruptNo

Diagnoses

Wire breakYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Receive RxDYes; Yellow LED

Transmit TxDYes; Yellow LED

Potential separation

between backplane bus and interfaceYes

Isolation

Isolation tested with707 V DC (type test)

Ambient temperature during operation

horizontal installation, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C; = Tmin; Startup @ -25 °C

vertical installation, max.40 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Decentralized operation

to SIMATIC S7-300Yes

to SIMATIC S7-400Yes

to SIMATIC S7-1500Yes

to standard PROFINET controllerYes

Dimensions

Width35 mm

Height147 mm

Depth127 mm

Weights

Weight, approx.0.22 kg
