How can I get a price quote for Siemens 6AG1503-2CC00-2AA0?

You can request a fast quote for Siemens 6AG1503-2CC00-2AA0 from Yılsa Engineering. Reference part number CEY-8EF3B03886A0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1503-2CC00-2AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1503-2CC00-2AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1503-2CC00-2AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

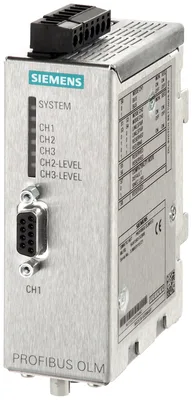

Siemens 6AG1503-2CC00-2AA0

SIPLUS NET OLM/G11-1300 V4.0 based on 6GK1503-2CC00 with conformal coating, -25…+60 °C, optical link module with 1 RS-485 and 1 glass fiber optic cable (2 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port

SiemensMFR # 6AG1503-2CC00-2AA0SKU # CEY-8EF3B03886A0

product brand nameSIPLUS

transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s

transfer rate / with PROFIBUS PA45.45 kbit/s

for measuring device1

for signaling contact1

for power supply1

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1503-2CC00-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIPLUS

transfer rate

transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s

transfer rate / with PROFIBUS PA45.45 kbit/s

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum2

for network components or terminal equipment1

for measuring device1

for signaling contact1

for power supply1

for redundant voltage supply1

for network components or terminal equipment9-pin Sub-D socket

for measuring device2-pole terminal block

for power supply and signaling contact5-pole terminal block

number of optical interfaces / for fiber optic cable1

design of the optical interface / for fiber optic cableBFOC port

optical data

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum8 dB

propagation delay [bit]6.5 bit

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-19 dB

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-29 dB

wavelength / of the optical interface / note1310 nm, single-mode

for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum15 km

signal inputs/outputs

operating voltage / of the signaling contacts / at DC / rated value24 V

operational current / of the signaling contacts / at DC / maximum0.1 A

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / at DC / rated value24 V

supply voltage / at DC18.8 ... 28.8 V

product component / fusing at power supply inputYes

consumed current / at DC / at 24 V / maximum0.2 A

ambient conditions

in horizontal mounting position / during operation60 ... -25 °C

during storage and transport70 ... -40 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), horizontal installation

chemical resistance / to commercially available cooling lubricantsYes; incl. airborne diesel and oil droplets

conformity according to EN 60721-3-3Yes; Class 3B2 mold and fungal spores (excluding fauna); class 3B3 on request

conformity according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)

conformity according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

conformity according to EN 60721-3-6Yes; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (Severity degree 3); *

conformity according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust; *

conformity according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place on the unused interfaces during operation!

coating / for equipped printed circuit board / according to EN 61086Yes; Class 2 for high availability

protection against pollution according to EN 60664-3Yes; protection of the type 1

type of test / of the coating / according to MIL-I-46058CYes; coating discoloration during service life possible

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; conformal coating, class A

protection class IPIP40

design, dimensions and weights

designcompact

width39.5 mm

height112 mm

depth74.5 mm

net weight340 g

35 mm DIN-rail mountingYes

wall mountingYes

standards, specifications, approvals

for emitted interferenceEN 61000-6-4 (Class A)

for interference immunityEN 61000-6-4
