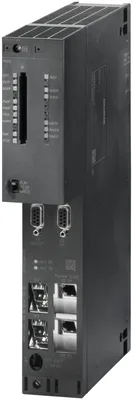

Siemens 6AG1417-5HT06-7AB0

SIPLUS S7-400 CPU 417-5H based on 6ES7417-5HT06-0AB0 with conformal coating, -25…+70 °C, central processing unit for S7-400H, and S7-400F/FH 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for SYNC modules, 32 MB memory (16 MB data/16 MB program)

SiemensMFR # 6AG1417-5HT06-7AB0SKU # CEY-8EF3B03886C7

Product type designationCPU 417-5H PN/DP

HW functional status1

Firmware versionV6.0

based on6ES7417-5HT06-0AB0

Isochronous modeNo

Programming packageAs of STEP 7 V5.5 SP2 with HF1

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1417-5HT06-7AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCPU 417-5H PN/DP

HW functional status1

Firmware versionV6.0

based on6ES7417-5HT06-0AB0

Product function

Isochronous modeNo

Engineering with

Programming packageAs of STEP 7 V5.5 SP2 with HF1

CiR - Configuration in RUN

CiR synchronization time, basic load60 ms

CiR synchronization time, time per I/O byte0 µs

Supply voltage

Rated value (DC)Power supply via system power supply

Input current

from backplane bus 5 V DC, typ.1.6 A

from backplane bus 5 V DC, max.1.9 A

from backplane bus 24 V DC, max.150 mA; 150 mA per DP interface

from interface 5 V DC, max.90 mA; At each DP interface

Power loss

Power loss, typ.7.5 W

Storage

Type of memoryRAM

Work memory

integrated32 Mbyte

integrated (for program)16 Mbyte

integrated (for data)16 Mbyte

expandableNo

Load memory

expandable FEPROMYes; with Memory Card (FLASH)

expandable FEPROM, max.64 Mbyte

integrated RAM, max.1 Mbyte

expandable RAMYes

expandable RAM, max.64 Mbyte

Backup

presentYes

with batteryYes; all data

without batteryNo

Backup battery

Backup current, typ.180 µA; Valid up to 40°C

Backup current, max.1 000 µA

Backup time, max.Dealt with in the module data manual with the secondary conditions and the factors of influence

Feeding of external backup voltage to CPU5 V DC to 15 V DC

CPU processing times

for bit operations, typ.7.5 ns

for word operations, typ.7.5 ns

for fixed point arithmetic, typ.7.5 ns

for floating point arithmetic, typ.15 ns

Number, max.16 000; Number range: 1 to 16000

Size, max.64 kbyte

Number, max.8 000; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.8 000; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.see instruction list

Size, max.64 kbyte

Number of free cycle OBs1; OB 1

Number of time alarm OBs8; OB 10-17

Number of delay alarm OBs4; OB 20-23

Number of cyclic interrupt OBs9; OB 30-38

Number of process alarm OBs8; OB 40-47

Number of DPV1 alarm OBs3; OB 55-57

Number of startup OBs2; OB 100, 102

Number of asynchronous error OBs9; OB 80-88

Number of synchronous error OBs2; OB 121, 122

Nesting depth

per priority class24

additional within an error OB2

S7 counter

Number2 048

Retentivity

— adjustableYes

— presetZ 0 to Z 7

Counting range

— lower limit0

— upper limit999

IEC counter

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

S7 timer

Number2 048

Retentivity

— adjustableYes

— presetNo times retentive

Time range

— lower limit10 ms

— upper limit9 990 s

IEC timer

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.Total working and load memory (with backup battery)

Flag

Size, max.16 384 byte

Retentivity availableYes

Retentivity presetMB 0 to MB 15

Number of clock memories8; in 1 memory byte

Local data

adjustable, max.64 kbyte

preset32 kbyte

I/O address area

Inputs16 kbyte

Outputs16 kbyte

Process image

Inputs, adjustable8 kbyte

Outputs, adjustable8 kbyte

Inputs, default1 024 byte

Outputs, default1 024 byte

consistent data, max.244 byte

Access to consistent data in process imageYes

Subprocess images

Number of subprocess images, max.15

Digital channels

Inputs131 072

— of which central131 072

Outputs131 072

— of which central131 072

Analog channels

Inputs8 192

— of which central8 192

Outputs8 192

— of which central8 192

Hardware configuration

Number of expansion units, max.21

connectable OPs119

MulticomputingNo

Interface modules

Number of connectable IMs (total), max.6

Number of connectable IM 460s, max.6

Number of connectable IM 463s, max.4; Single mode only

Number of DP masters

integrated2

via CP10; CP 443-5 Extended

Mixed mode IM + CP permittedNo

via interface module0

Number of IO Controllers

Integrated1

Via CP0

Number of operable FMs and CPs (recommended)

FMSee manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections

CP, PtPSee manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections

PROFIBUS and Ethernet CPs14; Of which max. 10 CP as DP master

Slots

required slots2

Clock

Hardware clock (real-time)Yes

retentive and synchronizableYes

Resolution1 ms

Deviation per day (buffered), max.1.7 s; Power off

Deviation per day (unbuffered), max.8.6 s; Power on

Operating hours counter

Number16

Number/Number range0 to 15

Range of valuesSFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours

Granularity1 h

retentiveYes

Clock synchronization

supportedYes

to MPI, masterYes

on MPI, deviceYes

to DP, masterYes

on DP, deviceYes

in AS, masterYes

in AS, deviceYes

on Ethernet via NTPYes; As client

Time difference in system when synchronizing via

Ethernet, max.10 ms; Via NTP

MPI, max.200 ms

Interfaces

Number of RS 485 interfaces2

Number of other interfaces2; Fiber-optic interface

Optical interfaceNo

1. Interface

Interface typeMPI/PROFIBUS DP

IsolatedYes

Interface types

RS 485Yes

Output current of the interface, max.150 mA

Protocols

MPIYes

PROFIBUS DP masterYes

PROFIBUS DP deviceNo

MPI

Number of connections44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1

Transmission rate, max.12 Mbit/s

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationYes

— S7 communication, as clientYes

— S7 communication, as serverYes

PROFIBUS DP master

Number of connections, max.32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1

Transmission rate, max.12 Mbit/s

max. number of DP devices32

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationYes

— S7 communication, as clientYes

— S7 communication, as serverYes

— EquidistanceNo

— Isochronous modeNo

— SYNC/FREEZENo

— activation/deactivation of DP devicesNo

— Direct data exchange (slave-to-slave communication)No

— DPV1Yes

Address area

— Inputs, max.2 kbyte

— Outputs, max.2 kbyte

User data per DP device

— user data per DP device, max.244 byte

— Inputs, max.244 byte

— Outputs, max.244 byte

— Slots, max.244

— per slot, max.128 byte

PROFIBUS DP device

Number of connectionsNo configuration of CPU as DP slave

2. Interface

Interface typePROFINET

IsolatedYes

automatic detection of transmission rateYes; Autosensing

AutonegotiationYes

AutocrossingYes

Change of IP address at runtime, supportedNo

Interface types

RJ 45 (Ethernet)Yes

Number of ports2

integrated switchYes

Protocols

PROFINET IO ControllerYes

PROFINET IO deviceNo

PROFINET CBANo

PROFIBUS DP masterNo

PROFIBUS DP deviceNo

Open IE communicationYes

Web serverNo

Point-to-point connectionNo

Media redundancyYes

PROFINET IO Controller

Transmission rate, max.100 Mbit/s

Services

— PG/OP communicationYes

— S7 communicationYes

— Isochronous modeNo

— Shared deviceYes; Single mode only

— Prioritized startupNo

— Number of connectable IO Devices, max.256; In redundant mode via both interfaces

— Number of connectable IO Devices for RT, max.256

— of which in line, max.256

— Activation/deactivation of IO DevicesNo

— IO Devices changing during operation (partner ports), supportedNo

— Device replacement without swap mediumYes

— Send cycles250 µs, 500 µs, 1 ms, 2 ms, 4 ms

— Updating time250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode

Address area

— Inputs, max.8 kbyte

— Outputs, max.8 kbyte

— User data consistency, max.1 024 byte

Open IE communication

Number of connections, max.46

Local port numbers used at the system end0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535

Keep-alive function, supportedYes

3. Interface

Interface typePROFIBUS DP

Interface types

RS 485Yes

Output current of the interface, max.150 mA

Protocols

PROFIBUS DP masterYes

PROFIBUS DP deviceNo

PROFIBUS DP master

Number of connections, max.32

Transmission rate, max.12 Mbit/s

max. number of DP devices125

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationYes

— S7 communication, as clientYes

— S7 communication, as serverYes

— EquidistanceNo

— Isochronous modeNo

— SYNC/FREEZENo

— activation/deactivation of DP devicesNo

— Direct data exchange (slave-to-slave communication)No

— DPV0Yes

— DPV1Yes

Address area

— Inputs, max.8 kbyte

— Outputs, max.8 kbyte

User data per DP device

— user data per DP device, max.244 byte

— Inputs, max.244 byte

— Outputs, max.244 byte

— Slots, max.244

— per slot, max.128 byte

4. Interface

Interface typePluggable synchronization submodule (FO)

Plug-in interface modulesSynchronization modules 6AG1960-1AA06-7XA0 or 6AG1960-1AB06-7XA0

5. Interface

Interface typePluggable synchronization submodule (FO)

Plug-in interface modulesSynchronization modules 6AG1960-1AA06-7XA0 or 6AG1960-1AB06-7XA0

Media redundancy

— Switchover time on line break, typ.200 ms

— Number of stations in the ring, max.50

SIMATIC communication

S7 routingYes

Open IE communication

TCP/IPYes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.118

— Data length, max.32 kbyte

— several passive connections per port, supportedYes

ISO-on-TCP (RFC1006)Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs

— Number of connections, max.118

— Data length, max.32 kbyte; 1 452 bytes via CP 443-1 Adv.

UDPYes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.118

— Data length, max.1 472 byte

Web server

supportedNo

Isochronous mode

EquidistanceNo

Communication functions

PG/OP communicationYes

Number of connectable OPs with message processing119; When using Alarm_S/SQ and Alarm_D/DQ

Number of connectable OPs without message processing119

Data record routingYes

Global data communication

supportedNo

S7 basic communication

supportedNo

S7 communication

supportedYes

as serverYes

as clientYes

User data per job, max.64 kbyte

User data per job (of which consistent), max.462 byte; 1 variable

S5 compatible communication

supportedYes; (via CP max. 10 and FC AG_SEND and FC AG_RECV)

User data per job, max.8 kbyte

User data per job (of which consistent), max.240 byte

Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.64/64

Standard communication (FMS)

supportedYes; Via CP and loadable FB

Number of connections

overall120

— reserved for PG communication1

— adjustable for PG communication, max.0

— reserved for OP communication1

— adjustable for OP communication, max.0

— reserved for S7 basic communication0

— adjustable for S7 basic communication, max.0

— reserved for S7 communication0

— adjustable for S7 communication, max.0

— reserved for routing0

— adjustable for routing, max.0

S7 message functions

Number of login stations for message functions, max.119; max. 119 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)

Symbol-related messagesNo

SCAN procedureNo

Program alarmsYes

Process diagnostic messagesYes

simultaneously active Alarm_S blocks, max.1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks

Alarm 8-blocksYes

Number of instances for alarm 8 and S7 communication blocks, max.10 000

preset, max.1 200

Process control messagesYes

Number of archives that can log on simultaneously (SFB 37 AR_SEND)64

Test commissioning functions

Status blockYes

Single stepYes

Number of breakpoints16

Status/control

Status/control variableYes; Up to 16 variable tables

VariablesInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters

Number of variables, max.70

Forcing

ForcingYes

Forcing, variablesInputs/outputs, bit memories, distributed I/Os

Number of variables, max.512

Diagnostic buffer

presentYes

Number of entries, max.3 200

— adjustableYes

— preset120

Service data

Can be read outYes

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Ambient temperature during operation

min.-25 °C; = Tmin

max.70 °C; = Tmax; @ 60°C for UL/ATEX/FM and safety-related application

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m); with "F-System" applications max. +2 000 m above sea level permissible

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Configuration software

STEP 7Yes

Programming

Command setsee instruction list

Nesting levels7

Access to consistent data in process imageYes

System functions (SFC)see instruction list

System function blocks (SFB)see instruction list

Programming language

— LADYes

— FBDYes

— STLYes

— SCLYes

— CFCYes

— GRAPHYes

— HiGraph®Yes

Number of simultaneously active SFCs

— RD_REC8

— WR_REC8

— WR_PARM8

— PARM_MOD1

— WR_DPARM2

— DPNRM_DG8

— RDSYSST8

— DP_TOPOL1

Number of simultaneously active SFBs

— RDREC8

— WRREC8

Know-how protection

User program protection/password protectionYes

Block encryptionYes; With S7 block Privacy

Dimensions

Width50 mm

Height290 mm

Depth219 mm

Weights

Weight, approx.995 g

Accessories 2

Genuine accessories that can be used with the Siemens 6AG1417-5HT06-7AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
