How can I get a price quote for Siemens 6AG1400-1JA11-7AA0?

You can request a fast quote for Siemens 6AG1400-1JA11-7AA0 from Yılsa Engineering. Reference part number CEY-8EF3B03886DB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1400-1JA11-7AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1400-1JA11-7AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1400-1JA11-7AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

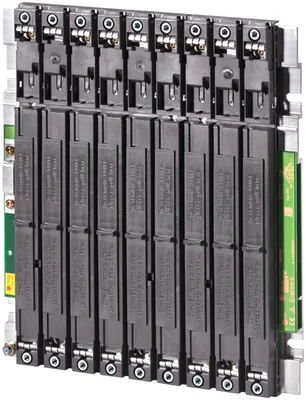

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1400-1JA11-7AA0

SIPLUS S7-400 rack UR2 9-slot alu based on 6ES7400-1JA11-0AA0 with conformal coating, -25…+70 °C, central and distributed 2 redundant PS can be plugged in

SiemensMFR # 6AG1400-1JA11-7AA0SKU # CEY-8EF3B03886DB

Product type designationUR2

based on6ES7400-1JA11-0AA0

Communication busYes

P busYes

Number of slots9

min.-25 °C; = Tmin

Have questions?Chat on WhatsApp

About This Product

SIPLUS S7-400 rack UR2 9-slot alu based on 6ES7400-1JA11-0AA0 with conformal coating, -25…+70 °C, central and distributed 2 redundant PS can be plugged in

Siemens 6AG1400-1JA11-7AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationUR2

based on6ES7400-1JA11-0AA0

Rack

Communication busYes

P busYes

Slots

Number of slots9

Ambient temperature during operation

min.-25 °C; = Tmin

max.70 °C; = Tmax

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost permitted (no commissioning in bedewed state)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Mechanics/material

rack profile materialaluminum

Dimensions

Width257.5 mm

Height290 mm

Depth27.5 mm

Weights
