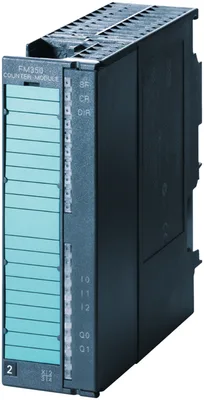

Siemens 6AG1350-1AH03-2AE0

Replacement only, no repair. No direct successor, possibly migration to SIPLUS Extreme Rail FM350-1 based on 6ES7350-1AH03-0AE0 with conformal coating, -25…+60 °C, counter module counter functions up to 500 kHz 1 channel for connection of 5 V and 24 V incremental encoders isochronous mode; measuring range types incl. configuration package on CD-ROM

SiemensMFR # 6AG1350-1AH03-2AE0SKU # CEY-8EF3B03886E1

based on6ES7350-1AH03-0AE0

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)28.8 V; dynamic 30.2 V

from backplane bus 5 V DC, max.160 mA

5 VYes; 5.2 V ±2 %

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1350-1AH03-2AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ES7350-1AH03-0AE0

Auxiliary voltage 1L+, load voltage 2L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)28.8 V; dynamic 30.2 V

Input current

from load voltage 1L+ (without load), max.40 mA

from backplane bus 5 V DC, max.160 mA

5 V encoder supply

5 VYes; 5.2 V ±2 %

Output current, max.300 mA

24 V encoder supply

24 VYes; 1L+ (-3 V)

Output current, max.400 mA

Power loss

Power loss, typ.4.5 W

Digital inputs

Number of digital inputs3

Functions1 for gate start, 1 for gate stop, 1 for setting the counter

Input voltage

for signal "0"-28.8 ... +5V

for signal "1"+11 to +28.8V

Input current

for signal "1", typ.9 mA

Digital outputs

Number of digital outputs2

Short-circuit protectionYes; Clocked electronically

Limitation of inductive shutdown voltage to2L+ (-39 V)

Output voltage

for signal "0", max.3 V

for signal "1", min.2L+ (-1,5 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range for 0 to 60 °C, min.5 mA

for signal "1" permissible range for 0 to 60 °C, max.0.6 A

Output delay with resistive load

"0" to "1", max.300 µs

Connectable encoders

Incremental encoder (symmetrical)Yes; With 2 pulse trains offset by 90°

Incremental encoder (asymmetrical)Yes

24 V initiatorYes

24 V directional elementYes; 1 pulse train, 1 direction level

Counter

Number of counter inputs1; 32 bit or ±31 bit

Counter input 5 V

TypeRS 422

terminating resistor220 Ω

Differential input voltage1,3 V

Counting frequency, max.500 kHz

Counter input 24 V

Input voltage for signal "0"-28.8 ... +5V

Input voltage for signal "1"+11 to +28.8V

Input current for signal "1", typ.9 mA

Counting frequency, max.200 kHz

Minimum pulse width2.5 µs

Potential separation digital inputs

between the channels and backplane busYes; Optocoupler

Potential separation digital outputs

between the channels and backplane busYes; Optocoupler

Potential separation counter

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V

Standards, approvals, certificates

CE markYes

UL approvalYes; File E239877

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Ambient temperature during operation

min.-25 °C; = Tmin

max.60 °C; = Tmax

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Connection method

required front connector1x 20-pin

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.250 g
