How can I get a price quote for Siemens 6AG1341-1CH02-7AE0?

You can request a fast quote for Siemens 6AG1341-1CH02-7AE0 from Yılsa Engineering. Reference part number CEY-937FC780BA7D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1341-1CH02-7AE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1341-1CH02-7AE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1341-1CH02-7AE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

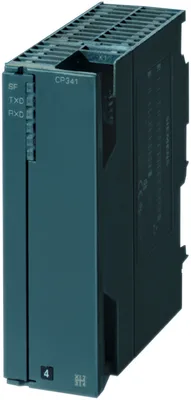

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1341-1CH02-7AE0

Substitution type 6AG1342-5DA03-*; release approx. October 2012 CP 341 RS-422/485 based on 6ES7341-1CH02-0AE0 with conformal coating, -25…+70 °C,

SiemensMFR # 6AG1341-1CH02-7AE0SKU # CEY-937FC780BA7D

based on6ES7341-1CH02-0AE0

24 V DCYes

from supply voltage L+, max.100 mA

from backplane bus 5 V DC, max.70 mA

Power loss, typ.1.6 W

Power loss, max.2.4 W

Have questions?Chat on WhatsApp

About This Product

Substitution type 6AG1342-5DA03-*; release approx. October 2012 CP 341 RS-422/485 based on 6ES7341-1CH02-0AE0 with conformal coating, -25…+70 °C,

Siemens 6AG1341-1CH02-7AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ES7341-1CH02-0AE0

Supply voltage

24 V DCYes

Input current

from supply voltage L+, max.100 mA

from backplane bus 5 V DC, max.70 mA

Power loss

Power loss, typ.1.6 W

Power loss, max.2.4 W

Interfaces

Interfaces/bus typeRS 422 / 485 (X.27)

Number of interfaces1; Isolated

Transmission rate, min.0.3 kbit/s

Transmission rate, max.115.2 kbit/s

Point-to-point connection

Cable length, max.1 200 m

supported printersSerial printers

Connector type15-pin sub D socket

Integrated protocol driver

— 3964 (R)Yes; not with RS 485

— ASCIIYes

— RK 512Yes; not with RS 485

Telegram length, max.

— 3964 (R)4 096 byte

— ASCII4 096 byte

— RK 5124 096 byte

Transmission rate, RS 422/485

— with 3964 (R) protocol, max.115.2 kbit/s

— with ASCII protocol, max.115.2 kbit/s

— with printer driver, max.115.2 kbit/s

— with RK 512 protocol, max.115.2 kbit/s

Diagnostics indication LED

Receive RxDYes

Transmit TxDYes

Group error SF (red)Yes

Standards, approvals, certificates

CE markYes

UL approvalYes; File E239877

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Ambient temperature during operation

min.-25 °C; = Tmin

max.70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Block

FB length in RAM, max.6 100 byte; Data communication, sending and receiving

Connection method

Design of electrical connection for supply voltage3 screw-type terminals: L+, M, GND

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.300 g

Accessories 7

Genuine accessories that can be used with the Siemens 6AG1341-1CH02-7AE0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7902-3AB00-0AA0	Aksesuar · Cable
6ES7902-3AC00-0AA0	Aksesuar · Cable
6ES7902-3AG00-0AA0	Aksesuar · Cable
6ES7870-1AA01-0YA0	Aksesuar · Software
6ES7870-1AA01-0YA1	Aksesuar · Software
6ES7870-1AB01-0YA0	Aksesuar · Software
6ES7870-1AB01-0YA1	Aksesuar · Software
