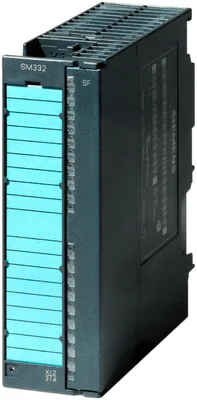

Siemens 6AG1332-5HD01-7AB0

Replacement only, no repair. SM 332 4 AO U/I based on 6ES7332-5HD01-0AB0 with conformal coating, -25…+70 °C, analog output SM 332, isolated, 4 AO, U/I; diagnostics; resolution 11/12 bits, 20-pole, removing and inserting with active backplane bus possible

SiemensMFR # 6AG1332-5HD01-7AB0SKU # CEY-8EF3B02F43F3

based on6ES7332-5HD01-0AB0

Isochronous modeNo

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.60 mA

Power loss, typ.3 W

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1332-5HD01-7AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ES7332-5HD01-0AB0

Product function

Isochronous modeNo

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.240 mA

from backplane bus 5 V DC, max.60 mA

Power loss

Power loss, typ.3 W

Analog outputs

Number of analog outputs4

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.25 mA

Current output, no-load voltage, max.18 V

Output ranges, voltage

0 to 10 VYes

1 V to 5 VYes

-10 V to +10 VYes

Output ranges, current

0 to 20 mAYes

-20 mA to +20 mAYes

4 mA to 20 mAYes

Connection of actuators

for voltage output four-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.500 Ω

with current outputs, inductive load, max.10 mH

Cable length

shielded, max.200 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit

Conversion time (per channel)0.8 ms

Settling time

for resistive load0.2 ms

for capacitive load3.3 ms

for inductive load0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH)

Operational error limit in overall temperature range

Voltage, relative to output range, (+/-)0.5 %; ±0.6 % @ < 0 °C or > 60 °C

Current, relative to output range, (+/-)0.6 %; ±0.7 % @ < 0 °C or > 60 °C

Basic error limit (operational limit at 25 °C)

Voltage, relative to output range, (+/-)0.4 %

Current, relative to output range, (+/-)0.5 %

Interrupts/diagnostics/status information

Diagnostics functionYes; Parameterizable

Substitute values connectableYes; Parameterizable

Alarms

Diagnostic alarmYes; Parameterizable

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog outputs

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+Yes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with500 V DC

Standards, approvals, certificates

CE markYes

UL approvalYes; File E239877

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Railway application

EN 50121-4No

EN 50155No

Ambient temperature during operation

min.-25 °C; = Tmin

max.70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Connection method

required front connector20-pin

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.220 g

Accessories 2
