How can I get a price quote for Siemens 6AG1331-7TF01-7AB0?

You can request a fast quote for Siemens 6AG1331-7TF01-7AB0 from Yılsa Engineering. Reference part number CEY-8EF3B03886FE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1331-7TF01-7AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1331-7TF01-7AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1331-7TF01-7AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

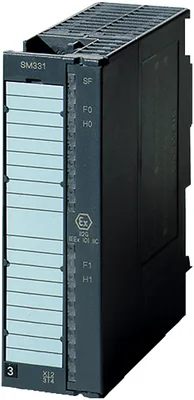

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1331-7TF01-7AB0

Replacement only, no repair. SM 331 AI 8x0/4...20 mA based on 6ES7331-7TF01-0AB0 with conformal coating, -25…+70 °C,

SiemensMFR # 6AG1331-7TF01-7AB0SKU # CEY-8EF3B03886FE

based on6ES7331-7TF01-0AB0

Isochronous modeNo

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.120 mA

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

Replacement only, no repair. SM 331 AI 8x0/4...20 mA based on 6ES7331-7TF01-0AB0 with conformal coating, -25…+70 °C,

Siemens 6AG1331-7TF01-7AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ES7331-7TF01-0AB0

Product function

Isochronous modeNo

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.20 mA

from backplane bus 5 V DC, max.120 mA

Power supply to the transmitters

Rated value (DC)24 V

Power loss

Power loss, typ.1.5 W

Analog inputs

Number of analog inputs8

permissible input current for current input (destruction limit), max.40 mA

Input ranges

VoltageNo

CurrentYes

ThermocoupleNo

Resistance thermometerNo

ResistanceNo

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)240 Ω

— Input resistance (-20 mA to +20 mA)240 Ω

— Input resistance (4 mA to 20 mA)240 Ω

Cable length

shielded, max.800 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes

Integration time (ms)20 ms at 50 Hz; 16.6 ms at 60 Hz; 100 ms at 100 Hz

Interference voltage suppression for interference frequency f1 in Hz10 / 50 / 60 Hz

Connection of signal encoders

for current measurement as 2-wire transducerYes

for current measurement as 4-wire transducerYes

Operational error limit in overall temperature range

Current, relative to input range, (+/-)0.15 %; ±0.25 % @ < 0 °C or > 60 °C

Basic error limit (operational limit at 25 °C)

Current, relative to input range, (+/-)0.1 %

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog inputs

between the channelsNo

between the channels, in groups of8

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with500

Standards, approvals, certificates

CE markYes

UL approvalYes; File E239877

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Railway application

EN 50121-4No

EN 50155No

Ambient temperature during operation

min.-25 °C; = Tmin

max.70 °C; = Tmax; 60 °C @ UL/cUL use

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Connection method

required front connector20-pin

Dimensions

Width40 mm

Height125 mm

Depth117 mm

Weights

Weight, approx.205 g
