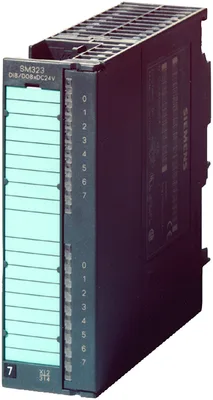

Siemens 6AG1323-1BH01-2AA0

Replacement only, no repair. SM 323 20-pole based on 6ES7323-1BH01-0AA0 with conformal coating, -40…+70 °C, digital module isolated 8 DI and 8 DO, 24 V DC, 0.5 A total current 2 A

SiemensMFR # 6AG1323-1BH01-2AA0SKU # CEY-8EF3B02F33A8

based on6ES7323-1BH01-0AA0

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.40 mA

Power loss, typ.3.5 W

Have questions?Chat on WhatsApp

About This Product

Replacement only, no repair. SM 323 20-pole based on 6ES7323-1BH01-0AA0 with conformal coating, -40…+70 °C, digital module isolated 8 DI and 8 DO, 24 V DC, 0.5 A total current 2 A

Siemens 6AG1323-1BH01-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ES7323-1BH01-0AA0

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.40 mA

from backplane bus 5 V DC, max.40 mA

Power loss

Power loss, typ.3.5 W

Digital inputs

Number of digital inputs8

Input characteristic curve in accordance with IEC 61131, type 1Yes

horizontal installation

— up to 60 °C, max.8

vertical installation

— up to 40 °C, max.8

Input voltage

Type of input voltageDC

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"13 to 30V

Input current

for signal "1", typ.7 mA

for standard inputs

— at "0" to "1", min.1.2 ms

— at "0" to "1", max.4.8 ms

— at "1" to "0", min.1.2 ms

— at "1" to "0", max.4.8 ms

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Digital outputs

Number of digital outputs8

Short-circuit protectionYes

Response threshold, typ.1 A

Limitation of inductive shutdown voltage toL+ (-53 V)

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.L+ (-0.8 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, min.5 mA

for signal "1" permissible range, max.0.6 A

for signal "1" minimum load current5 mA

for signal "0" residual current, max.0.5 mA

Output delay with resistive load

"0" to "1", max.100 µs

"1" to "0", max.500 µs

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes; only outputs of the same group

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.0.5 Hz

on lamp load, max.10 Hz

horizontal installation

— up to 60 °C, max.4 A

vertical installation

— up to 40 °C, max.4 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.2 mA

Interrupts/diagnostics/status information

AlarmsNo

Diagnostics functionNo

Diagnostics indication LED

Status indicator digital input (green)Yes

Status indicator digital output (green)Yes

Potential separation digital inputs

between the channelsYes

between the channels, in groups of8

between the channels and backplane busYes; Optocoupler

Potential separation digital outputs

between the channelsYes

between the channels, in groups of8

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V DC

Standards, approvals, certificates

CE markYes

UL approvalYes; File E239877

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Railway application

EN 50155Yes; Sections 4, 5 and 12; no further agreements apply; T1, Category 1, Class A/B, EN 50155:2007 (see SIOS entry 109755985)

Ambient temperature during operation

min.-40 °C; = Tmin

max.70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on land craft, rail vehicles and special-purpose vehicles

— to biologically active substances according to EN 60721-3-5Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request

— to chemically active substances according to EN 60721-3-5Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 50155 (ST2); *

— to mechanically active substances according to EN 60721-3-5Yes; Class 5S3 incl. sand, dust; *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Connection method

required front connector20-pin

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.220 g
