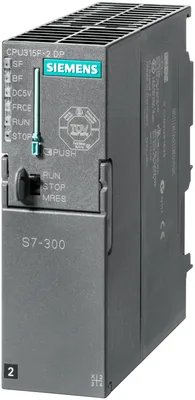

Siemens 6AG1315-6FF04-2AB0

Replacement only, no repair. No direct successor,possibly migration to SIPLUS Extreme Rail CPU 315F-2DP based on 6ES7315-6FF04-0AB0 with conformal coating, -25…+60 °C, fail-safe module with MPI integrated power supply 24 V DC, work memory 384 KB, 40 mm width, 2nd interface DP master/ device Micro Memory Card required

SiemensMFR # 6AG1315-6FF04-2AB0SKU # CEY-8EF3B038872E

Product type designationCPU 315F-2 DP

based on6ES7315-6FF04-0AB0

Isochronous modeYes

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1315-6FF04-2AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCPU 315F-2 DP

based on6ES7315-6FF04-0AB0

Product function

Isochronous modeYes

Engineering with

Programming packageSTEP 7 V5.5 + SP1 or higher or STEP 7 V5.2 + SP1 or higher with HSP 218 + Distributed Safety

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

external protection for power supply lines (recommendation)2 A min.

Mains buffering

Mains/voltage failure stored energy time5 ms

Repeat rate, min.1 s

Input current

Current consumption (rated value)850 mA

Current consumption (in no-load operation), typ.150 mA

Inrush current, typ.3.5 A

I²t1 A²·s

Power loss

Power loss, typ.4.5 W

Work memory

integrated384 kbyte

expandableNo

Load memory

Plug-in (MMC)Yes

Plug-in (MMC), max.8 Mbyte

Data management on MMC (after last programming), min.10 a

Backup

presentYes; Guaranteed by MMC (maintenance-free)

without batteryYes; Program and data

CPU processing times

for bit operations, typ.0.05 µs

for word operations, typ.0.09 µs

for fixed point arithmetic, typ.0.12 µs

for floating point arithmetic, typ.0.45 µs

CPU-blocks

Number of elements (total)1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.

Number, max.1 024; Number range: 1 to 16000

Size, max.64 kbyte

Number, max.1 024; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.1 024; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.see instruction list

Size, max.64 kbyte

Number of free cycle OBs1; OB 1

Number of time alarm OBs1; OB 10

Number of delay alarm OBs2; OB 20, 21

Number of cyclic interrupt OBs4; OB 32, 33, 34, 35

Number of process alarm OBs1; OB 40

Number of DPV1 alarm OBs3; OB 55, 56, 57

Number of isochronous mode OBs1; OB 61

Number of startup OBs1; OB 100

Number of asynchronous error OBs5; OB 80, 82, 85, 86, 87

Number of synchronous error OBs2; OB 121, 122

Nesting depth

per priority class16

additional within an error OB4

S7 counter

Number256

Retentivity

— adjustableYes

— presetZ 0 to Z 7

Counting range

— lower limit0

— upper limit999

IEC counter

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

S7 timer

Number256

Retentivity

— adjustableYes

— presetNo retentivity

Time range

— lower limit10 ms

— upper limit9 990 s

IEC timer

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.128 kbyte

Flag

Size, max.2 048 byte

Retentivity availableYes; MB 0 to MB 2 047

Retentivity presetMB 0 to MB 15

Number of clock memories8; 1 memory byte

Data blocks

Retentivity adjustableYes; via non-retain property on DB

Retentivity presetYes

Local data

per priority class, max.32 kbyte; Max. 2 KB per block

I/O address area

Inputs2 048 byte

Outputs2 048 byte

of which distributed

— Inputs2 048 byte

— Outputs2 048 byte

Process image

Inputs2 048 byte

Outputs2 048 byte

Inputs, adjustable2 048 byte

Outputs, adjustable2 048 byte

Inputs, default384 byte

Outputs, default384 byte

Subprocess images

Number of subprocess images, max.1

Digital channels

Inputs16 384

— of which central1 024

Outputs16 384

— of which central1 024

Analog channels

Inputs1 024

— of which central256

Outputs1 024

— of which central256

Hardware configuration

Number of expansion units, max.3

Number of DP masters

integrated1

via CP4

Number of operable FMs and CPs (recommended)

FM8

CP, PtP8

CP, LAN10

Rack

Racks, max.4

Modules per rack, max.8

Clock

Hardware clock (real-time)Yes

retentive and synchronizableYes

Backup time6 wk; At 40 °C ambient temperature

Deviation per day, max.10 s; Typ.: 2 s

Behavior of the clock following POWER-ONClock continues running after POWER OFF

Behavior of the clock following expiry of backup periodthe clock continues at the time of day it had when power was switched off

Operating hours counter

Number1

Number/Number range0

Range of values0 to 2^31 hours (when using SFC 101)

Granularity1 h

retentiveYes; Must be restarted at each restart

Clock synchronization

supportedYes

to MPI, masterYes

on MPI, deviceYes

to DP, masterYes; With DP slave only slave clock

on DP, deviceYes

in AS, masterYes

in AS, deviceNo

Digital inputs

Number of digital inputs0

Digital outputs

Number of digital outputs0

Analog inputs

Number of analog inputs0

Interfaces

Number of PROFINET interfaces0

Number of RS 485 interfaces2

Number of RS 422 interfaces0

1. Interface

Interface typeIntegrated RS 485 interface

IsolatedNo

Interface types

RS 485Yes

Output current of the interface, max.200 mA

Protocols

MPIYes

PROFIBUS DP masterNo

PROFIBUS DP deviceNo

Point-to-point connectionNo

MPI

Transmission rate, max.187.5 kbit/s

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationYes

— S7 basic communicationYes

— S7 communicationYes; Only server, configured on one side

— S7 communication, as clientNo

— S7 communication, as serverYes

2. Interface

Interface typeIntegrated RS 485 interface

IsolatedYes

Interface types

RS 485Yes

Output current of the interface, max.200 mA

Protocols

MPINo

PROFIBUS DP masterYes

PROFIBUS DP deviceYes

Point-to-point connectionNo

PROFIBUS DP master

Transmission rate, max.12 Mbit/s

max. number of DP devices124; Per station

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationNo

— S7 basic communicationYes; I blocks only

— S7 communicationYes; Only server, configured on one side

— S7 communication, as clientNo

— S7 communication, as serverYes

— EquidistanceYes

— Isochronous modeYes; OB 61

— SYNC/FREEZEYes

— activation/deactivation of DP devicesYes

— max. number of DP devices that can be activated/deactivated at the same time8

— DPV1Yes

Address area

— Inputs, max.2 048 byte

— Outputs, max.2 048 byte

User data per DP device

— Inputs, max.244 byte

— Outputs, max.244 byte

PROFIBUS DP device

Transmission rate, max.12 Mbit/s

automatic baud rate searchYes; only with passive interface

Address area, max.32

User data per address area, max.32 byte

Services

— PG/OP communicationYes

— RoutingYes; Only with active interface

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationYes; Only server, configured on one side

— S7 communication, as clientNo

— S7 communication, as serverYes

— Direct data exchange (slave-to-slave communication)Yes

— DPV1No

Transfer memory

— Inputs244 byte

— Outputs244 byte

Protocols

PROFIsafeYes

Communication functions

PG/OP communicationYes

Data record routingYes

Global data communication

supportedYes

Number of GD loops, max.8

Number of GD packets, max.8

Number of GD packets, transmitter, max.8

Number of GD packets, receiver, max.8

Size of GD packets, max.22 byte

Size of GD packet (of which consistent), max.22 byte

S7 basic communication

supportedYes

User data per job, max.76 byte

User data per job (of which consistent), max.76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)

S7 communication

supportedYes

as serverYes

as clientYes; Via CP and loadable FB

User data per job, max.180 byte; With PUT/GET

User data per job (of which consistent), max.240 byte; as server

S5 compatible communication

supportedYes; via CP and loadable FC

Number of connections

overall16

usable for PG communication15

— reserved for PG communication1

— adjustable for PG communication, min.1

— adjustable for PG communication, max.15

usable for OP communication15

— reserved for OP communication1

— adjustable for OP communication, min.1

— adjustable for OP communication, max.15

usable for S7 basic communication12

— reserved for S7 basic communication0

— adjustable for S7 basic communication, min.0

— adjustable for S7 basic communication, max.12

S7 message functions

Number of login stations for message functions, max.16; Depending on the configured connections for PG/OP and S7 basic communication

Process diagnostic messagesYes

simultaneously active Alarm_S blocks, max.300

Test commissioning functions

Status blockYes; Up to 2 simultaneously

Single stepYes

Number of breakpoints4

Status/control

Status/control variableYes

VariablesInputs, outputs, memory bits, DB, times, counters

Number of variables, max.30

— of which status variables, max.30

— of which control variables, max.14

Forcing

ForcingYes

Forcing, variablesInputs, outputs

Number of variables, max.10

Diagnostic buffer

presentYes

Number of entries, max.500

— adjustableNo

— of which powerfail-proof100; Only the last 100 entries are retained

— can be setYes; From 10 to 499

— preset10

Service data

Can be read outYes

Standards, approvals, certificates

CE markYes

UL approvalYes; File E239877

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Use in hazardous areas

ATEX markingYes

Railway application

EN 50155No

Ambient temperature during operation

min.-25 °C

max.60 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Configuration software

STEP 7Yes; V5.2 SP1 or higher with HW update

Programming

Command setsee instruction list

Nesting levels8

System functions (SFC)see instruction list

System function blocks (SFB)see instruction list

Programming language

— LADYes

— FBDYes

— STLYes

— SCLYes
