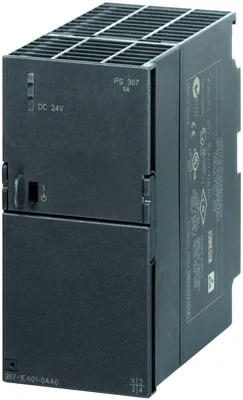

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1307-1EA01-7AA0

***spare part*** SIPLUS S7-300 PS 307 based on 6ES7307-1EA01-0AA0 with conformal coating, -25…+70 °C, stabilized power supply input: 120/230 V AC output: 24 V DC/5 A

SiemensMFR # 6AG1307-1EA01-7AA0SKU # CEY-937FC780BA88

based on6ES7307-1EA01-0AA0

120 V ACYes; 85 to 132 V AC

230 V ACYes; 170 to 264 V AC

Overvoltage strength2.3x Ue rated, 1.3 ms

permissible range, lower limit47 Hz

permissible range, upper limit63 Hz

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIPLUS S7-300 PS 307 based on 6ES7307-1EA01-0AA0 with conformal coating, -25…+70 °C, stabilized power supply input: 120/230 V AC output: 24 V DC/5 A

Siemens 6AG1307-1EA01-7AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

based on6ES7307-1EA01-0AA0

Supply voltage

120 V ACYes; 85 to 132 V AC

230 V ACYes; 170 to 264 V AC

Overvoltage strength2.3x Ue rated, 1.3 ms

Line frequency

permissible range, lower limit47 Hz

permissible range, upper limit63 Hz

Mains buffering

Mains/voltage failure stored energy time20 ms; min., for Ia rated

Repeat rate, min.1 s

Input current

Rated value at 120 V AC2.3 A

Rated value at 230 V AC1.2 A

Inrush current, max.20 A; max. at 25 °C, duration max. 3 ms

I²t1.2 A²·s

Leakage current, typ.0.5 mA

Leakage current, max.3.5 mA

Output voltage

Rated value (DC)24 V

permissible range, lower limit (DC)23.27 V

permissible range, upper limit (DC)24.72 V

Power up time, max.2 s

Voltage rise time, typ.10 ms

Overvoltage protectionAdditional control circuit, cutoff at < 28.8 V, automatic restart

short-circuit protectionelectronic trip, automatic restart

Residual ripple, typ.10 mV; Peak - peak

Residual ripple, max.50 mV; Peak - peak

Output current

Current output (rated value)5 A; 3 A @ > 60 °C, can be switched in parallel

Power

Active power input, typ.138 W

Efficiency87 %; approx., at Ua rated, Ia rated

Power loss

Power loss, typ.18 W; approx., at Ua rated, Ia rated

Diagnostics indication LED

Status indicator output 24 V OK (green)Yes

Potential separation

primary/secondaryYes; SELV output voltage Ua according to EN 60950-1 and EN 50178

Isolation

Isolation tested withRated insulation voltage (24 V against L1) 250 V AC, tested with 4 200 V DC

EMC

EMC interference immunityEN 61000-6-2

EMC interference emissionEN 55022 Class B

Degree and class of protection

Equipment protection classI

Standards, approvals, certificates

CE markYes

Standard for line harmonics limitEN 61000-3-2

Ambient temperature during operation

min.-25 °C; = Tmin

max.70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m); above 2 000 m max. 75 V DC

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Dimensions

Width60 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.0.6 kg
