How can I get a price quote for Siemens 6AG1243-5DX30-2XE0?

You can request a fast quote for Siemens 6AG1243-5DX30-2XE0 from Yılsa Engineering. Reference part number CEY-8EF3B038874A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1243-5DX30-2XE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1243-5DX30-2XE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1243-5DX30-2XE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

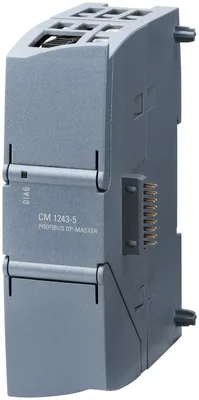

Siemens 6AG1243-5DX30-2XE0

SIPLUS S7-1200 CM 1243-5 based on 6GK7243-5DX30-0XE0 with conformal coating, -25…+55 °C, communications module CM 1243-5, for connecting S7-1200 to PROFIBUS as DP master module

SiemensMFR # 6AG1243-5DX30-2XE0SKU # CEY-8EF3B038874A

product brand nameSIPLUS

for power supply1

for power supply3-pole terminal block

type of voltage / of the supply voltageDC

supply voltage / external24 V

power loss [W]2.4 W

Have questions?Chat on WhatsApp

About This Product

SIPLUS S7-1200 CM 1243-5 based on 6GK7243-5DX30-0XE0 with conformal coating, -25…+55 °C, communications module CM 1243-5, for connecting S7-1200 to PROFIBUS as DP master module

Siemens 6AG1243-5DX30-2XE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIPLUS

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet0

at the 1st interface / according to PROFIBUS1

for power supply1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)

for power supply3-pole terminal block

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / external24 V

supply voltage / external / at DC / rated value24 V

relative positive tolerance / at DC / at 24 V20 %

relative negative tolerance / at DC / at 24 V20 %

from external supply voltage / at DC / at 24 V / typical0.1 A

power loss [W]2.4 W

ambient conditions

for vertical installation / during operation-25 ... +45 °C

for horizontally arranged busbars / during operation-25 ... +55 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

installation altitude / at height above sea level / maximum5000 m

ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), horizontal installation

chemical resistance / to commercially available cooling lubricantsYes; incl. airborne diesel and oil droplets

conformity according to EN 60721-3-3Yes; Class 3B2 mold and fungal spores (excluding fauna), Class 3B3 on request

conformity according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)

conformity according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.

conformity according to EN 60721-3-6Yes

conformity according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

conformity according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.

coating / for equipped printed circuit board / according to EN 61086Yes; Class 2 for high availability

type of coating / protection against pollution according to EN 60664-3Yes; Protection of the type 1

type of test / of the coating / according to MIL-I-46058CYes; Coating discoloration during service life possible

product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, class A

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-1200 single width

width30 mm

height100 mm

depth75 mm

net weight0.134 kg

35 mm DIN-rail mountingYes

S7-300 rail mountingNo

wall mountingYes

product features, product functions, product components / general

per CPU / maximum3

performance data / PROFIBUS DP

DPV1Yes

on DP master / operable32

of the address range of the inputs / as DP master / total512 byte

of the address range of the outputs / as DP master / total512 byte

of the address range of the inputs / per DP device244 byte

of the address range of the outputs / per DP device244 byte

of the address range of the diagnostic data / per DP device240 byte

DPV0No

DPV1No

performance data / S7 communication

maximum8; max. 4 connections to other S7 stations

with PG connections / maximum1

with PG/OP connections / maximum3

performance data / multi-protocol mode

without DP / maximum8

with DP / maximum8

performance data / telecontrol

TCP/IPNo

product functions / management, configuration, engineering

requiredSTEP 7 Basic/Professional

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
