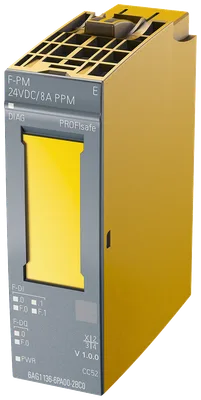

Siemens 6AG1136-6PA00-2BC0

SIPLUS ET 200SP F-PM-E 24VDC/8A PPM based on 6ES7136-6PA00-0BC0 with conformal coating, -30…+60 °C, fail-safe power module PROFIsafe, 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3 2 safe digital inputs 1 safe digital output PPM

SiemensMFR # 6AG1136-6PA00-2BC0SKU # CEY-8EF3B0388326

Product type designationF-PM-E 24 V DC/8 A PPM ST

based on6ES7136-6PA00-0BC0

usable BaseUnitsBU type C0

I&M dataYes; I&M0 to I&M3

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1136-6PA00-2BC0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationF-PM-E 24 V DC/8 A PPM ST

based on6ES7136-6PA00-0BC0

usable BaseUnitsBU type C0

Color code for module-specific color-coded labelCC52

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)75 mA; without load

Current consumption, max.21 mA; From the backplane bus

Output voltage

Rated value (DC)24 V

Encoder supply

Number of outputs2

Short-circuit protectionYes; Electronic (response threshold 0.7 A to 2.1 A)

Output current

up to 60 °C, max.0.3 A

24 V encoder supply

24 VYes; min. L+ (-1.5 V)

Short-circuit protectionYes

Output current, max.600 mA; Total current of all encoders

Power

Power consumption from the backplane bus70 mW

Power loss

Power loss, typ.5 W

Address space per module

Inputs7 byte

Outputs5 byte

Hardware configuration

Automatic encodingYes

Electronic coding element type FYes

Digital inputs

Number of digital inputs2

Sourcing/sinking inputYes; P-reading

Input characteristic curve in accordance with IEC 61131, type 1Yes

Input voltage

Type of input voltageDC

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"+15 to +30 V

Input current

for signal "1", typ.3.7 mA

for standard inputs

— parameterizableYes

— at "0" to "1", min.0.4 ms

— at "0" to "1", max.20 ms

— at "1" to "0", min.0.4 ms

— at "1" to "0", max.20 ms

for technological functions

— ParameterizableNo

Cable length

shielded, max.1 000 m

unshielded, max.500 m

Digital outputs

Number of digital outputs1

Digital outputs, parameterizableYes

Short-circuit protectionYes

Response threshold, typ.> 14.8 A

Open-circuit detectionYes

Response threshold, typ.8 mA

Overload protectionYes

Response threshold, typ.8.8 A

Limitation of inductive shutdown voltage tomax. 1.5 V

Switching capacity of the outputs

with resistive load, max.8 A

on lamp load, max.100 W

Load resistance range

lower limit3 Ω

upper limit2 000 Ω

Output voltage

for signal "1", min.24 V; L+ (-0.5 V)

Output current

for signal "1" rated value8 A

for signal "0" residual current, max.1.5 mA; PP-switching: max. 1.5 mA; PM-switching: max. 1 mA

Switching frequency

with resistive load, max.10 Hz; Symmetrical

with inductive load, max.0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical

on lamp load, max.4 Hz; Symmetrical

Total current of the outputs

Current per channel, max.8 A; note derating data in the manual

Current per module, max.8 A; note derating data in the manual

horizontal installation

— up to 40 °C, max.8 A; note derating data in the manual

— up to 50 °C, max.6 A; note derating data in the manual

— up to 60 °C, max.4 A; note derating data in the manual

— up to 70 °C, max.4 A; note derating information in the manual; only with configured slots to the left and right of the module

Cable length

shielded, max.1 000 m

unshielded, max.500 m

Interrupts/diagnostics/status information

Diagnostics functionYes; See Chapter "Alarms/diagnostic messages" in the manual

Substitute values connectableNo

Alarms

Diagnostic alarmYes

Hardware interruptNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]88.3 kg

— global warming potential, (during production) [CO2 eq]13.1 kg

— global warming potential, (during operation) [CO2 eq]76.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-1.37 kg

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

SIL acc. to IEC 61508SIL 3

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL2< 2.00E-04

— Low demand mode: PFDavg in accordance with SIL3< 2.00E-05

— High demand/continuous mode: PFH in accordance with SIL2< 1.00E-08 1/h

— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09 1/h

Ambient temperature during operation

horizontal installation, min.-30 °C; = Tmin (incl. condensation/frost)

horizontal installation, max.60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module

vertical installation, min.-30 °C; = Tmin

vertical installation, max.50 °C; = Tmax

Altitude during operation relating to sea level

Installation altitude above sea level, max.4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Dimensions

Width20 mm

Height72 mm

Depth55 mm

Weights

Weight, approx.70 g
