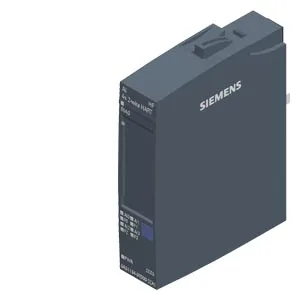

Siemens 6AG1134-6TD00-2CA1

SIPLUS ET 200SP AI 4xI 2-wire 4-20mA HART based on 6ES7134-6TD00-0CA1 with conformal coating, -40…+60 °C, start up -30 °C, analog HART input module, suitable for BU type A0, A1, color code CC03, channel diagnostics, 16-bit, +/-0.3%

SiemensMFR # 6AG1134-6TD00-2CA1SKU # CEY-8EF3B038832E

Product type designationAI 4xI 2-wire HART

FW update possibleYes

based on6ES7134-6TD00-0CA1

usable BaseUnitsBU type A0, A1

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1134-6TD00-2CA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI 4xI 2-wire HART

FW update possibleYes

based on6ES7134-6TD00-0CA1

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC03

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Measuring range scalableNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

OversamplingNo

MSINo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.25 mA; without sensor supply

24 V encoder supply

24 VYes

Short-circuit protectionYes

Output current, max.20 mA; max. 50 mA per channel for a duration < 10 s

Power loss

Power loss, typ.0.65 W; without sensor supply

Address space per module

Address space per module, max.8 byte; + 1 byte for QI information

Address space per module with HART, max.28 byte; + 1 byte for QI information

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Analog inputs

Number of analog inputs4; Differential inputs

For current measurement4

permissible input current for current input (destruction limit), max.50 mA

Input ranges (rated values), currents

0 to 20 mANo

-20 mA to +20 mANo

4 mA to 20 mAYes; 15 bit + sign

— Input resistance (4 mA to 20 mA)280 Ω; + approx. 0.35 V diode forward voltage

Cable length

shielded, max.800 m

Analog value generation for the inputs

Measurement principleintegrating (Sigma-Delta)

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes; channel by channel

Interference voltage suppression for interference frequency f1 in Hz10 / 50 / 60 Hz

Smoothing of measured values

Number of smoothing levels4; None; 4/8/16 times

ParameterizableYes

Connection of signal encoders

for voltage measurementNo

for current measurement as 2-wire transducerYes

Errors/accuracies

Linearity error (relative to input range), (+/-)0.01 %

Temperature error (relative to input range), (+/-)0.005 %/K

Crosstalk between the inputs, min.60 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %

Operational error limit in overall temperature range

Current, relative to input range, (+/-)1 %

Basic error limit (operational limit at 25 °C)

Current, relative to input range, (+/-)0.3 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.60 dB

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; channel by channel

short-circuitYes; Channel-by-channel, short-circuit of the encoder supply to ground or of an input to the encoder supply

Group errorYes

Overflow/UnderflowYes; channel by channel

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with707 V DC (type test)

Ambient temperature during operation

horizontal installation, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -30 °C

horizontal installation, max.60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module

vertical installation, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -30 °C

vertical installation, max.50 °C; = Tmax

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.31 g

Accessories 8

Genuine accessories that can be used with the Siemens 6AG1134-6TD00-2CA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AG1193-6BP00-7BA0	Zorunlu ek ürün · BaseUnit
6AG1193-6BP00-7DA0	Zorunlu ek ürün · BaseUnit
6AG1193-6BP20-7BA0	Zorunlu ek ürün · BaseUnit
6AG1193-6BP20-7DA0	Zorunlu ek ürün · BaseUnit
6AG1193-6BP00-7BA1	Zorunlu ek ürün · BaseUnit
6AG1193-6BP00-7DA1	Zorunlu ek ürün · BaseUnit
6AG1193-6BP40-7BA1	Zorunlu ek ürün · BaseUnit
6AG1193-6BP40-7DA1	Zorunlu ek ürün · BaseUnit
