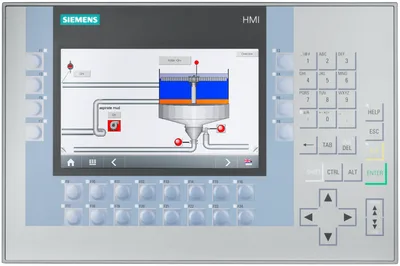

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AG1124-1GC01-4AX0

SIPLUS HMI KP700 Comfort based on 6AV2124-1GC01-0AX0 with conformal coating, 0...+50 °C,

SiemensMFR # 6AG1124-1GC01-4AX0SKU # CEY-8EF3B02F08E1

Product type designationKP700 Comfort

based on6AV2124-1GC01-0AX0

Design of displayTFT

Screen diagonal7 in

Display width152.4 mm

Display height91.4 mm

Have questions?Chat on WhatsApp

About This Product

SIPLUS HMI KP700 Comfort based on 6AV2124-1GC01-0AX0 with conformal coating, 0...+50 °C,

Siemens 6AG1124-1GC01-4AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationKP700 Comfort

based on6AV2124-1GC01-0AX0

Display

Design of displayTFT

Screen diagonal7 in

Display width152.4 mm

Display height91.4 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution800 pixel

Vertical image resolution480 pixel

Backlighting

MTBF backlighting (at 25 °C)80 000 h

Backlight dimmableYes; 0-100 %

Keyboard

— Number of function keys24

— Number of function keys with LEDs24

Keys with LEDYes

System keysYes

Numeric keyboardYes

alphanumeric keyboardYes; similar to mobile phone

Touch operation

Design as touch screenNo; without

Expansions for operator control of the process

— F1...Fx24

Direct keys (touch buttons as S7 input I/O)0

Installation type/mounting

Mounting positionvertical

Wall mounting/direct mountingNo

Mounting in portrait format possibleNo

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.5 A

Starting current inrush I²t0.5 A²·s

Power

Active power input, typ.12 W

Processor

Processor typeX86

Storage

FlashYes

RAMYes

Memory available for user data12 Mbyte

Type of output

Info LEDYes

Power LEDNo

Error LEDNo

BuzzerNo

SpeakerYes

Clock

Hardware clock (real-time)Yes

Software clockYes

retentiveYes; Back-up duration typically 6 weeks

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1; 2 ports (switch)

Number of RS 485 interfaces1; RS 422 / 485 combined

Number of RS 422 interfaces1

Number of RS 232 interfaces0

Number of USB interfaces2; USB 2.0

USB Mini B1; 5-pole

Number of 20 mA interfaces (TTY)0

Number of parallel interfaces0

Number of SD card slots2

With software interfacesNo

Industrial Ethernet

Industrial Ethernet status LED2

Number of ports of the integrated switch2

Protocols

PROFINETYes

PROFINET IOYes

IRTYes; As of WinCC V12

PROFIBUSYes

EtherNet/IPYes

MPIYes

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPYes

HTTPSYes

HTMLYes

XMLYes

CSSYes

Active XYes

JavaScriptYes

Java VMNo

Media redundancy

— MRPYes; As of WinCC V12

Further protocols

CANNo

MODBUSYes

Diagnoses

Diagnostic information readableYes; S7 controller

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Operation (vertical installation)

— For vertical installation, min.0 °C; = Tmin

— For vertical installation, max.50 °C; = Tmax

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C; = Tmin

— At maximum tilt angle, max.40 °C; = Tmax

Operation (vertical installation, portrait format)

— For vertical installation, min.0 °C; = Tmin

— For vertical installation, max.40 °C; = Tmax

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min.0 °C; = Tmin

— At maximum tilt angle, max.35 °C; = Tmax

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Operating systems

proprietaryNo

pre-installed operating system

Windows CEYes

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

STEP 7 Basic (TIA Portal)No

STEP 7 Professional (TIA Portal)No

WinCC flexible CompactNo

WinCC flexible StandardNo

WinCC flexible AdvancedNo

WinCC Basic (TIA Portal)No

WinCC Comfort (TIA Portal)Yes; from V11

WinCC Advanced (TIA Portal)Yes; from V11

WinCC Professional (TIA Portal)Yes; from V11

Online languages

Number of online/runtime languages32

Project languages

Languages per project32

Functionality under WinCC (TIA Portal)

LibrariesYes

Web browserYes

Pocket WordYes

Pocket ExcelYes

PDF ViewerYes

Media PlayerYes

SIMATIC WinCC Sm@rtServerYes

SIMATIC WinCC AuditYes

Number of Visual Basic ScriptsYes

time-controlledYes

task-controlledYes

Number of characters per info text70

Message system

Number of alarm classes32

Bit messagesYes

— Number of bit messages4 000

Analog messagesYes

— Number of analog messages200

S7 alarm number procedureYes

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Number of characters per message80

Number of process values per message8

Acknowledgment groupsYes

Message indicatorYes

— Number of entries1 024

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Recipe management

Number of recipes300

Data records per recipe500

Entries per data record1 000

Size of internal recipe memory2 Mbyte

Recipe memory expandableYes

Variables

Number of variables per device2 048

Number of variables per screen400

Limit valuesYes

MultiplexingYes

StructuresYes

ArraysYes

Images

Number of configurable images500

Permanent window/defaultYes

Global imageYes

Pop-up imagesYes

Slide-in imagesYes

Image selection by PLCYes

Image number in the PLCYes

Image objects

Number of objects per image400

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Date/time fieldsYes

SwitchesYes

ButtonsYes

Graphic displayYes

IconsYes

Geometric objectsYes

Complex image objects

Number of complex objects per screen20

Alarm viewYes

Trend viewYes

User viewYes

Status/controlYes

Sm@rtClient viewYes

Recipe viewYes

f(x) trend viewYes

System diagnostics viewYes

Media PlayerYes

HTML browserYes

PDF displayYes

IP camera displayYes

Bar graphsYes

SlidersYes

Pointer instrumentsYes

Analog/digital clockYes

Lists

Number of text lists per project500

Number of entries per text list500

Number of graphics lists per project500

Number of entries per graphics list500

Archiving

Number of archives per device50

Number of entries per archive20 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

— Memory cardYes

— USB memoryYes

— EthernetYes

— CSVYes

— TXTYes

— RDBYes

Security

Number of user groups50

Number of user rights32

Number of users50

Password export/importYes

SIMATIC LogonYes

Logging through printer

AlarmsYes

Report (shift log)Yes

HardcopyYes

Electronic print to fileYes; PDF, HTML

Character sets

— US EnglishYes

Transfer (upload/download)

MPI/PROFIBUS DPYes

USBYes

EthernetYes

using external storage mediumYes

Process coupling

S7-1200Yes

S7-1500Yes

S7-200Yes

S7-300/400Yes

LOGO!Yes

WinACYes

SINUMERIKYes; with SINUMERIK option package

SIMOTIONYes

Allen Bradley (EtherNet/IP)Yes

Allen Bradley (DF1)Yes

Mitsubishi (MC TCP/IP)Yes

Mitsubishi (FX)Yes

OMRON (FINS TCP)No

OMRON (Host Link)Yes

Modicon (Modbus TCP/IP)Yes

Modicon (Modbus RTU)Yes

OPC UA ClientYes

OPC UA ServerYes

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyYes

SimulationYes

Device switchoverYes

Peripherals/Options

PrinterYes

SIMATIC HMI MM memory card: Multi Media CardYes; Up to 128 MB

SIMATIC HMI SD memory card: Secure Digital memory cardYes; Up to 2 GB

SIMATIC HMI CF memory card Compact Flash CardNo

USB memoryYes

SIMATIC IPC USB Flashdrive (USB stick)Yes; Up to 16 GB

SIMATIC HMI USB stickYes; Up to 8 GB

Network cameraYes

Mechanics/material

PlasticNo

AluminumYes

Stainless steelNo

Dimensions

Width of the housing front308 mm

Height of housing front204 mm

Mounting cutout, width282 mm

Mounting cutout, height178 mm

mounting depth63 mm

Weights

Weight (without packaging)2.2 kg

Weight (with packaging)2.8 kg

Accessories 10

Genuine accessories that can be used with the Siemens 6AG1124-1GC01-4AX0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV6671-8XA00-0AX0	Aksesuar · Connection plug · HMI connecting components
6AV6671-8XD00-0AX0	Aksesuar · Adapter · HMI connecting components
6AV6671-8XE00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6671-8XJ00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV2181-4XM00-0AX0	Aksesuar · Accessories · fixing elements, mounting
6AV2181-8XP00-0AX0	Aksesuar · Memory card · Storage media
6AV6671-8XK00-0AX0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV6671-8XK00-0AX1	Aksesuar · Accessories (mounting) · fixing elements, mounting
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
