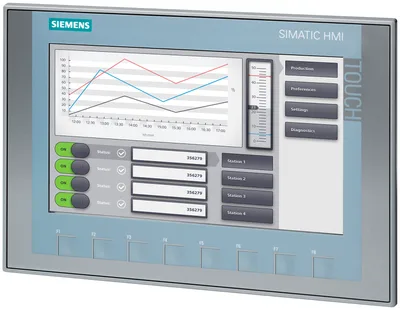

Siemens 6AG1123-2JB03-2AX0

SIPLUS HMI KTP900 Basic Color PN based on 6AV2123-2JB03-0AX0 with conformal coating, -20…+50 °C, 9" TFT display, 65536 colors PROFINET interface

SiemensMFR # 6AG1123-2JB03-2AX0SKU # CEY-8EF3B02DA4B5

Product type designationKTP900 Basic color PN

based on6AV2123-2JB03-0AX0

Design of displayTFT widescreen display, LED backlighting

Screen diagonal9 in

Display width198 mm

Display height111.7 mm
